Volunteer 467 Camo (37BC467D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1H013H - 1H294H) Kohler CH640-3053 Lubrication Parts Diagram

4x4 Utility Vehicle

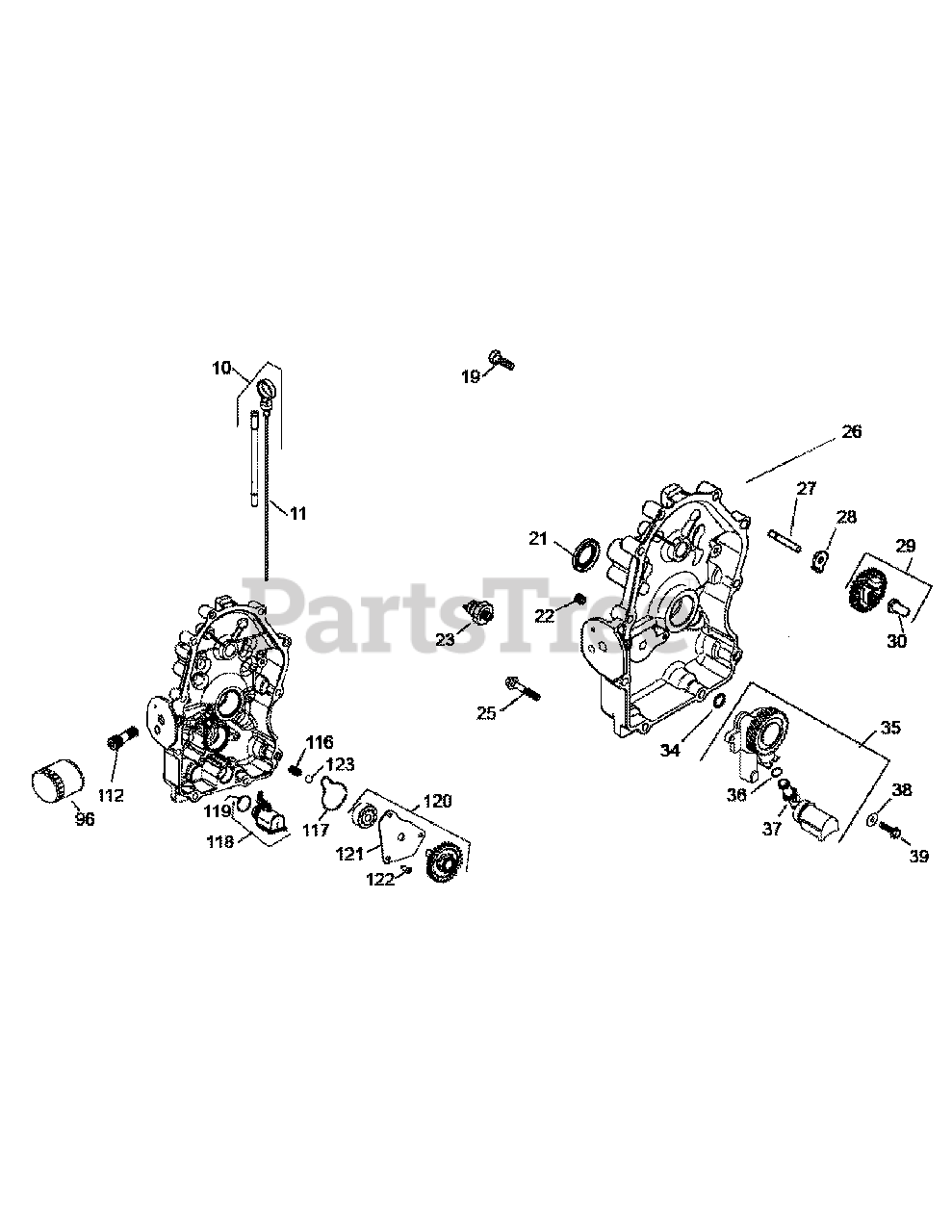

Kohler CH640-3053 Lubrication Parts Diagram

  • Title

10

Cub Cadet KH-24-755-121-S

Kit, Dipstick/Dipstick Tubes

$35.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-086-17-S

Screw, Flg M8X1.25X45

$2.49

$

In Stock, Qty 7

0

21

Cub Cadet KH-25-032-06-S

Oil Seal

$10.99

$

In Stock, Qty 16

0

22

Cub Cadet KH-25-139-60-S

Plug, Ctsk Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, only 4 left!

0

25

Cub Cadet KH-24-086-17-S

Screw, Flg M8X1.25X45

$2.49

$

In Stock, Qty 7

0

26

Cub Cadet KH-24-009-167-S

Plate, Closure & Bearing
(Superseded to KH-24-009-227-S)

$

$

Not available

27

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

28

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, Qty 20+

0

29

Cub Cadet KH-24-043-12

Kit, Governor Gear W/Pin

$

$

Not available

30

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

34

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

35

Cub Cadet KH-24-393-53-S

Kit, Oil Pump Assy

Note: (Before engine S/N 432400011)

$

$

Not available

36

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

Note: (Before engine S/N 432400011)

$

$

Not available

37

Cub Cadet KH-24-381-04

Pick-Up, Oil

Note: (Before engine S/N 432400011)

$

$

Not available

38

Cub Cadet KH-X-25-53

Washer, Flat 1/4" (O.D. 5/8")

Note: (Before engine S/N 432400011)

$

$

Not available

39

Cub Cadet KH-25-086-401-S

Screw, Thread Forming

Note: (Before engine S/N 432400011)

$2.99

$

In Stock, only 2 left!

0

96

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

112

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

116

Cub Cadet KH-24-089-74-S

SPRING, COMPRESSION

Note: After engine S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

117

Cub Cadet KH-24-153-33-S

SEAL, OIL PUMP COVER

Note: After engine S/N 4327400001)

$2.99

$

Usually ships in 2-5 days

0

118

Cub Cadet KH-24-381-13-S

PICK-UP ASSEMBLY, OIL

Note: After engine S/N 4327400001)

$7.49

$

Usually ships in 2-5 days

0

119

Cub Cadet KH-24-153-34-S

O-RING, OIL PICK-UP

Note: After engine S/N 4327400001)

$2.49

$

In Stock, only 1 left!

0

120

Cub Cadet KH-24-393-70-S

PUMP ASSEMBLY, OIL

Note: After engine S/N 4327400001)

$32.99

$

In Stock, only 2 left!

0

121

Cub Cadet KH-24-096-151-S

COVER, OIL PUMP

Note: After engine S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

122

Cub Cadet KH-25-086-414-S

SCREW, BUTTON HEAD

Note: After engine S/N 4327400001)

$

$

Not available

123

Cub Cadet KH-25-194-03-S

PRESSURE RELIEF BALL

Note: After engine S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0
