Volunteer 467 Camo (37BC467D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1G202Z - 1G313Z) Kohler CH640-3053 Fuel System Parts Diagram

4x4 Utility Vehicle

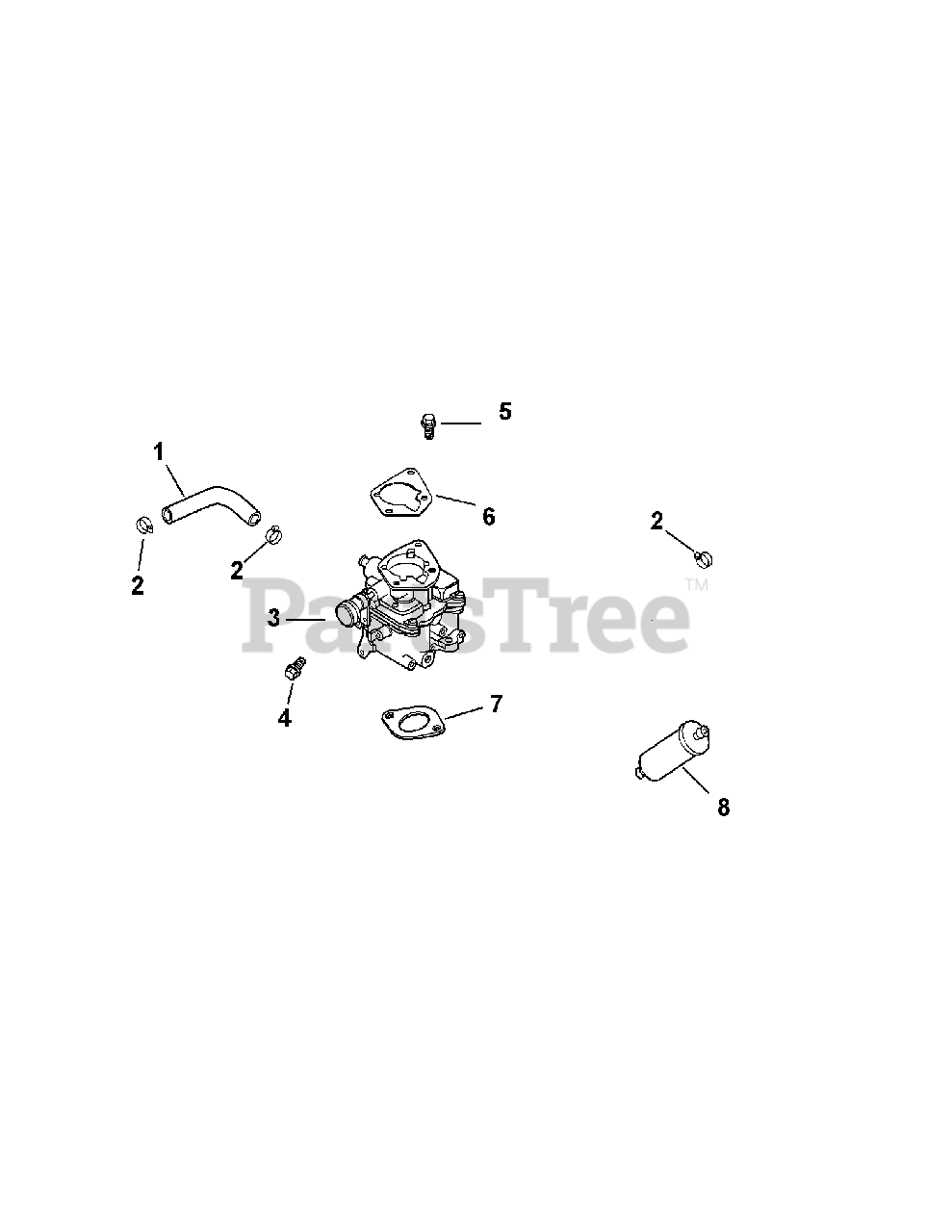

Kohler CH640-3053 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-81-S

Hose,Lw Perm.Fuel 24.00"

$17.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-25-237-31-S

Clamp, Hose (Km)

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-853-181-S

Kit, Carburetor

$434.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-086-124-S

Screw, Flg M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-041-17

Gasket, Carburetor

$

$

Not available

8

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: (Not Shown)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-25-431-12-S

Sleeve, Anti Abrasion

Note: (Not Shown)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet KH-X-22-11

Washer, Int Tooth Lock 1/4"

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, high altitude

Note: (Not Shown)

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, solenoid

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, float

Note: (Not Shown)

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, carburetor repair

Note: (Not Shown)

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, choke repair

Note: (Not Shown)

$

$

Not available
