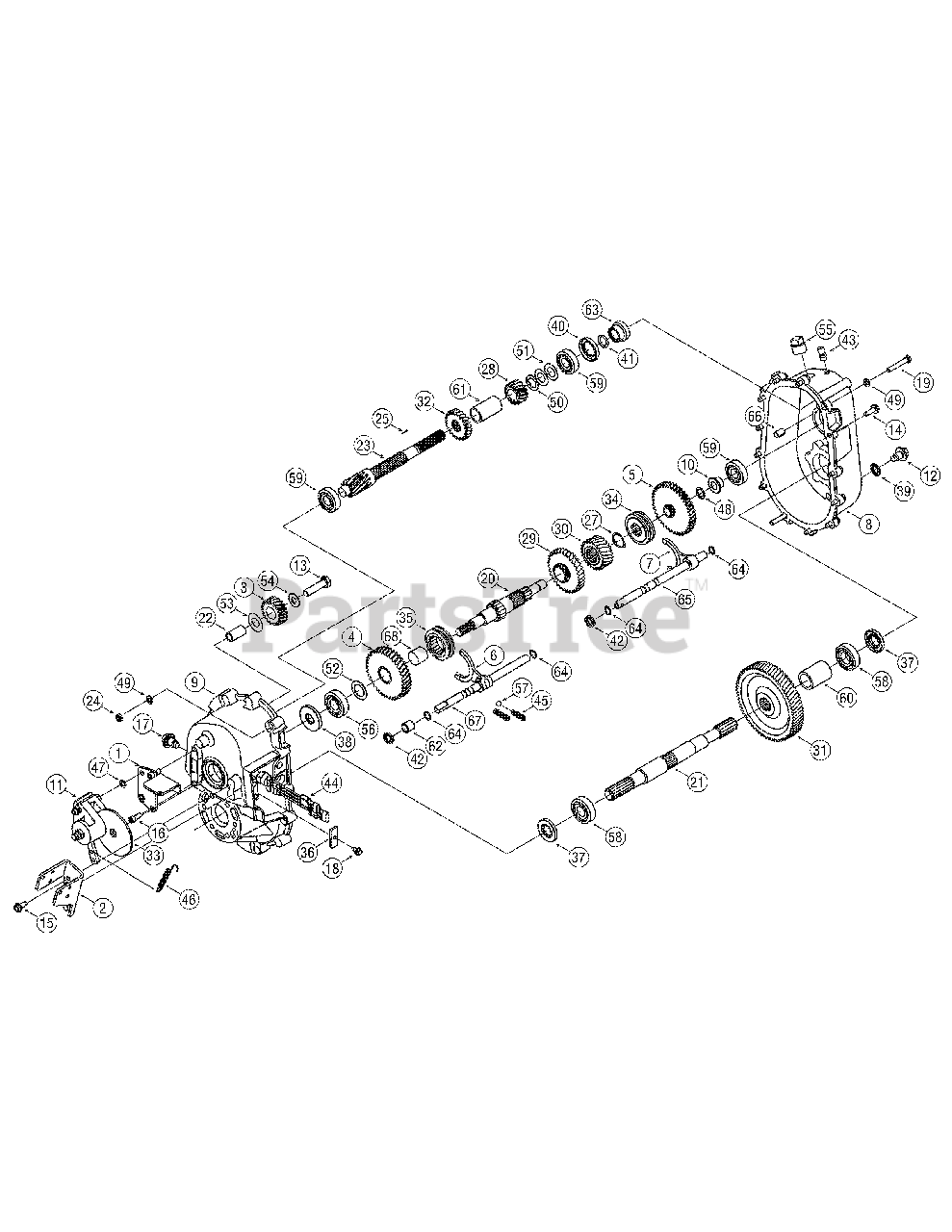

Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B027G - 1B028G) Transmission Parts Diagram

4x4 Utility Vehicle

Transmission Parts Diagram

  • Title
1

Cub Cadet 607-04229

Brkt Asm, Brk, Mnt, Painted

$

$

Not available

2

Cub Cadet 607-04230

Brkt Asm, Shift, Trans, Painted

$

$

Not available

3

Cub Cadet 611-04072

Gear Asm, Rev Idler
(Superseded to 911-04072A)

$96.99

$

In Stock, only 2 left!

0

4

Cub Cadet 717-04237

Gear, Rev, 39T

$160.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 617-04035

Gear Asm, Low Speed

$207.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 718-04176

Yoke, Actr, Uv

$83.99

$

In Stock, only 3 left!

0

7

Cub Cadet 718-04079B

Yoke Actr, Lo

$85.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 619-04132

Hsg, Lh, Uv
(Superseded to 918-06998A)

$593.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 619-04131

Hsg, Rh, Uv
(Superseded to 759-05067A)

$

$

Not available

10

Cub Cadet 750-04681

Spcr, Flg, .630 x .787 x .662

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 661-04019

Brake Asm, Transfer Case

$141.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 761-04060

PUCK-BRAKE

Note: Not shown

$32.99

$

In Stock, Qty 9

0

12

Cub Cadet 710-04617

Scr, Plug, M14x1.5, Magnetic

$

$

Not available

13

Cub Cadet 710-04644

Hhcs, 1/2-13, 2.00, Gr5, Lock

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0602

Scr, Tt, 5/16-18, 1.000, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-1260A

Scr, Tt, 5/16-18, 0.750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1314A

Scr, Soc Hd, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1633

Scr, Plug, M14x1.5 X .827

$14.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-1652

Scr, Tt, 1/4-20x.625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3103

Hhcs, 5/16-18, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 711-04445A

Shf, Mid, Transfer Case
(Superseded to 911-04445A)

$180.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-04446

Shf, Output, Transfer Case
(Superseded to 911-04446)

$155.99

$

In Stock, only 1 left!

0

22

Cub Cadet 711-04447

Shf, Rev Idler
(Superseded to 911-04447)

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-04666

Shf, Input, Transfer Case
(Superseded to 911-04666)

$

$

Not available

24

Cub Cadet 712-0158

Nut, Hexlk, 5/16-18, Gra, Ctrlk
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

25

Cub Cadet 715-0138

Pin, Roll, 1/8 Od, .63
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

26

Cub Cadet 716-0131

Ext Snap Ring .625 Dia Shaft
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

27

Cub Cadet 716-04059

Ring, Ret, 1.125 Dia Shaft

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 717-04231

Gear, Low Pinion, 15t
(Superseded to 917-04231)

$

$

Not available

29

Cub Cadet 717-04236

Gear, High, 33t
(Superseded to 917-04236)

$114.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 717-04332

Gear, Final Pinion, 22t
(Superseded to 917-04332)

$66.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 717-04333

Gear, Final, 73t
(Superseded to 917-04333)

$246.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 717-04369

Gear, Pnion, High, 22t
(Superseded to 917-04369)

$56.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 717-1177A

Disc, Brk, Uv

$34.99

$

In Stock, only 2 left!

0

34

$59.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 718-04226A

Colr, Hi-rev, 4x4

$131.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 718-04240

Plt, Detent Spring

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 721-04146

Seal, Oil, 25x46x7

$13.99

$

In Stock, only 4 left!

0

38

Cub Cadet 721-04161

Seal, Oil, 20x52x7

$13.99

$

In Stock, only 4 left!

0

39

Cub Cadet 721-04174

Gskt, 14.15 X 24.6 X 1.5

$

$

Not available

40

Cub Cadet 721-04187

Seal, Oil, 30 X 47 X 7

$9.49

$

In Stock, Qty 8

0

41

Cub Cadet 721-04188

O-rg, .734 Id X .139

$8.49

$

In Stock, Qty 9

0

42

Cub Cadet 721-0496

Seal, Oil, .563 X .875 X .188

$10.99

$

In Stock, Qty 5

0

43

Cub Cadet 723-3021

Creeper Drive Housing Breather

$23.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 725-04386

Sw, Saf, Neut

$

$

Not available

45

Cub Cadet 732-0424

Spr, 3/8 Od X 1 1/4 Lg

$8.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 732-04248

Spr, Extn, .38 Od X 3.9 Lg

$10.99

$

In Stock, only 2 left!

0

47

Cub Cadet 736-0117

Wash, Flat, .385 X .620 X .033
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

48

Cub Cadet 736-0256

Wash, Flat, .635x.930x.033, Ht
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0264

Wash, Flat, .330 X .630 X .0635

$6.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0287

Wash, Flat, .793 X 1.24 X .06, Ht

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0563

Wash, Flat, .793x1.368x.010, Ht

$13.99

$

In Stock, only 1 left!

0

52

Cub Cadet 736-0615

Wash, Flat, 1.007x1.542x.03, Ht

$8.99

$

In Stock, only 2 left!

0

53

Cub Cadet 736-3047

Wash, Thrust, .757 X 1.38 X .062

$10.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-3084

Wash, Flat, .51 X 1.12 X .06, Ht

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 737-04148

Plug, Pipe, 3/4 Nptf

$6.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 741-04044

Brg, Ball, .79 Id X 2.05 Od X .6
(Superseded to 941-04044)

$30.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 741-04209

Ball, Detent, .375

$9.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 741-3037

Brg, Ball, 25x52x15, 6205, Open
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

59

Cub Cadet 741-3057

Brg, Ball, 20x47x14, 6204, Open
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

60

Cub Cadet 750-04496

Spcr, Output Shaft

$37.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-04502

Spcr, Mid Shaft

$

$

Not available

62

Cub Cadet 750-04705

Spcr, .566 X .725 X .650
(Superseded to 750-04705A)

$8.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 750-04778

Spcr, Input, Uv, Transfer Case
(Superseded to 750-04778A)

$

$

Not available

64

Cub Cadet 716-0194

Ring, Ret

$3.99

$

In Stock, only 2 left!

0

65

Cub Cadet 711-04453

Shf, Actr, Lo

$

$

Not available

66

Cub Cadet 715-3045

Dowel, Bush, .400 x .484 x .750
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 711-04454

Shf, Actr, Fwd, Rev

$92.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 741-3118

Brg, Slv, 25mm x 28mm x 25mm

$26.99

$

Usually ships in 3-6 days

0
