Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Pedals and Levers Parts Diagram

4x4 Utility Vehicle

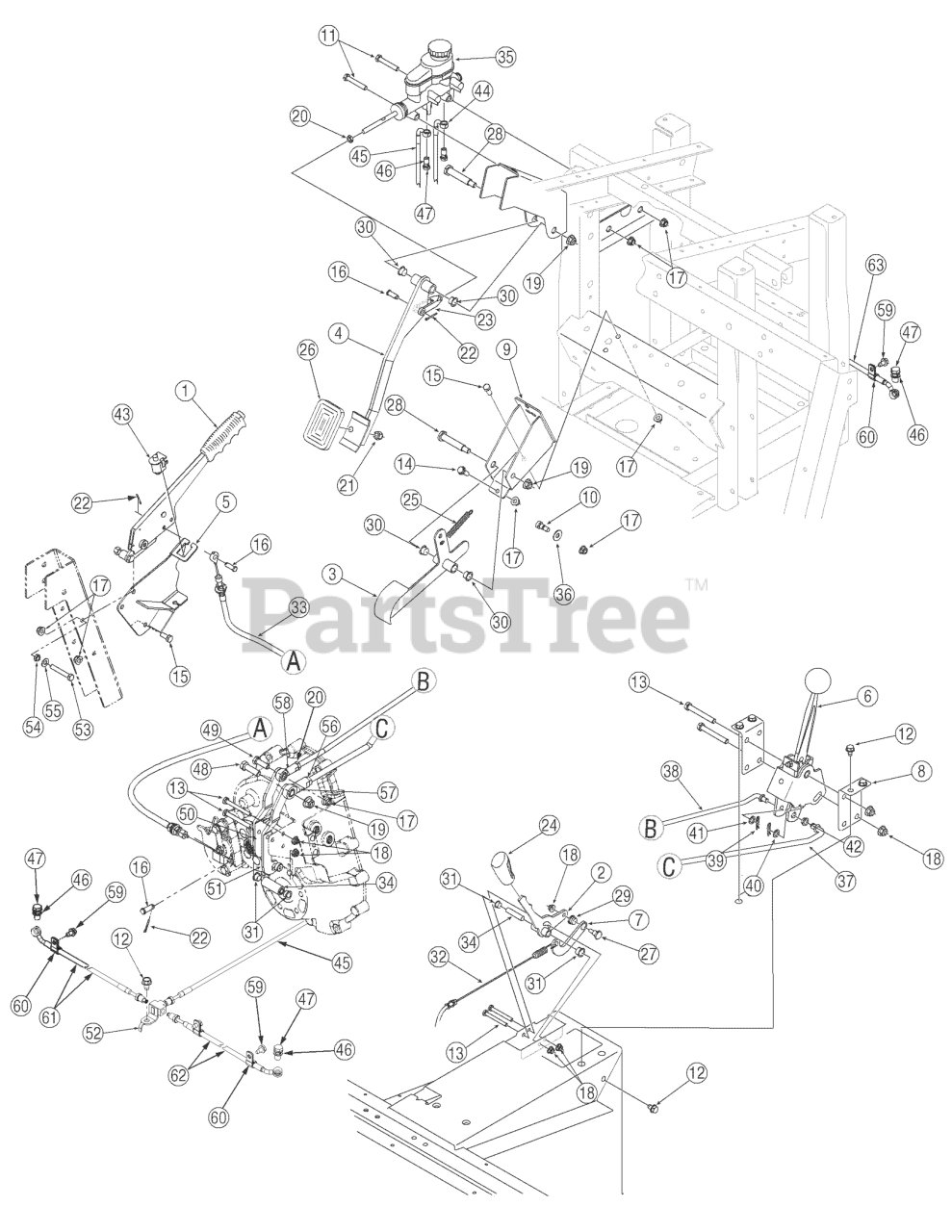

Pedals and Levers Parts Diagram

  • Title

1

Cub Cadet 603-04089

Lvr Assembly, Brake

$283.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04181

Lvr Assembly, Diff Lock
(Superseded to 607-04181A-0637)

Variations

Cub Cadet 607-04181-0637

USE 607-04181A-0637 LEVER ASS - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04188

Pedal Assembly, Accel
(Superseded to 607-04188D)

Variations

Cub Cadet 607-04188-0637

PEDAL ASSY ACCELERATOR - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 607-04193

Pedal Assembly, Brake
(Superseded to 607-04193B-0637)

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04208

Brkt Assembly, Mt, Park
(Superseded to 607-04208-0637)

Variations

Cub Cadet 607-04208-0637

BRACKET ASSY:MT - POWDER BLACK (0637)

$80.99

$

In Stock, only 1 left!

0

$80.99

$

In Stock, only 1 left!

0

6

Cub Cadet 607-04212

Shft Assembly, Hurst
(Superseded to 907-04212A)

$524.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 759-04141

Knob, Shifter
(Superseded to 759-04141P)

Note: not shown

$42.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04642

Plt, Pawl, Over Center

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04805

Mt, Shft, Cnsol
(Superseded to 707-04805-0637)

Variations

Cub Cadet 707-04805-0637

SHAFT CONSOLE MOUNT - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04823

Brkt, Mt, Accel Pedal
(Superseded to 707-04823D-0637)

Variations

Cub Cadet 707-04823-0637

USE 707-04823A-0637 BRACKET-M - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04027

Scr, Shldr, .372 X .375, 5/16-18

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-04039

Screw, 5/16-18, 2.00, Gr5, Patch

$4.99

$

In Stock, only 4 left!

0

12

Cub Cadet 710-0607

Scr, Tt, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 710-0641

Screw, 1/4-20, 2.25, Gr5, Std

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 710-0650

Scr, Tt, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3008

Screw, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-0653

Pin, Clevis, 312 Od X 1.0"

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04063

Nut, Flglk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, Flglk, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Flglk, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3025

Nut, Jam, 5/16-24, Gr5

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-3061

Nut, Hexlk, 3/8-24, Gr2, Nylon

$6.99

$

In Stock, Qty 14

0

22

Cub Cadet 714-0111

Pin, Cot, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

23

Cub Cadet 719-3018

Yoke, 5/16-24

$43.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-3321

Handle, Selct

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0611

Spring, Extn, .38 Od X 3.6
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 735-04000

Pad, Brake, Ped

$

$

Not available

27

Cub Cadet 738-0974

Scr, Shldr, .375 x.380, 1/4-20

$10.99

$

In Stock, only 2 left!

0

28

Cub Cadet 738-1011A

Scr, Shldr, .500 X 2.230, 3/8-16

$8.49

$

In Stock, Qty 11

0

29

Cub Cadet 741-0475

Plastic Bushing .380 Id
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0491

Bearing, Flg, Nyliner, .500idx.34lg

$5.49

$

In Stock, only 3 left!

0

31

Cub Cadet 741-3073

Bearing, Flg, .375 X .580 X .250
(Superseded to 941-3073)

$5.49

$

In Stock, Qty 20+

0

32

Cub Cadet 746-04248

Cable, Cont, Diff, Lock
(Superseded to 746P04248)

$56.99

$

In Stock, only 1 left!

0

33

Cub Cadet 746-04254

Cable, Cont, Park, Brake, 4x4
(Superseded to 946-04254)

$71.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-04500

Spcr, Pivot, Diff Lock

$37.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 759-04223

Cyl, Master, Tandem, Hayes

Note: Replaces 761-04023

$173.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0159

Wash, Flat, .349 X .879 X .063

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 747-04528

Link, Shft, F N R
(Superseded to 747-04528A)

$52.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-04529

Link, Shft, Hi Lo
(Superseded to 747-04529A)

$44.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0140

Wash, Flat, .385 X .62 X .063

$7.49

$

In Stock, Qty 7

0

41

Cub Cadet 736-0264

Wash, Flat, .330 X .630 X .0635

$6.99

$

In Stock, only 1 left!

0

42

Cub Cadet 741-04199

Bearing, Flg, .377 Id

$11.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 725-3166

Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

44

Cub Cadet 727-04132

Hose, Brake, Master Cyl, Front
(Superseded to 927-04132)

$

$

Not available

45

Cub Cadet 727-04138

Hose, Brake, Master Cyl, Rear
(Superseded to 927-04138)

$174.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-04129

Ftg, Banjo Ftg Bolt, M10 x 1.00

$28.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 737-04130

Ftg, Banjo Ftg Crush Wash, 10mm

$8.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-3005

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0376

Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 607-04210

Lvr., Assembly, Shift, Hi-Lo
(Superseded to 907-04210)

$82.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 607-04211

Lvr., Assembly, Shift, F N
(Superseded to 607E04211)

$81.99

$

In Stock, only 2 left!

0

52

Cub Cadet 737-04128

Ftg., Tee, 3-45 Deg Flare

$57.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-3103

Screw, Hex, 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 712-3007

Nut, Hex Jam, 5/16-18 Gr5

$6.99

$

In Stock, only 3 left!

0

55

Cub Cadet 736-0275

Washer, Flat, .344 x .688

$6.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 Gr2
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

57

Cub Cadet 723-04038

Rod End, 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 723-04039

Rod End, 5/16 ID

$57.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 710-0599

Screw, Hex Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 726-04056

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 727-04136

Hose, Brake, Rear Left
(Superseded to 927-04136)

$131.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 727-04137

Hose, Brake, Rear Right
(Superseded to 927-04137)

$143.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 727-04134

Hose, Brake, Front Right
(Superseded to 927-04134)

$133.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 727-04133

Hose, Brake, Front Left
(Superseded to 927-04133)

Note: Not shown

$134.99

$

Usually ships in 3-6 days

0
