Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Operator Protective Structure and Seat Belts Parts Diagram

4x4 Utility Vehicle

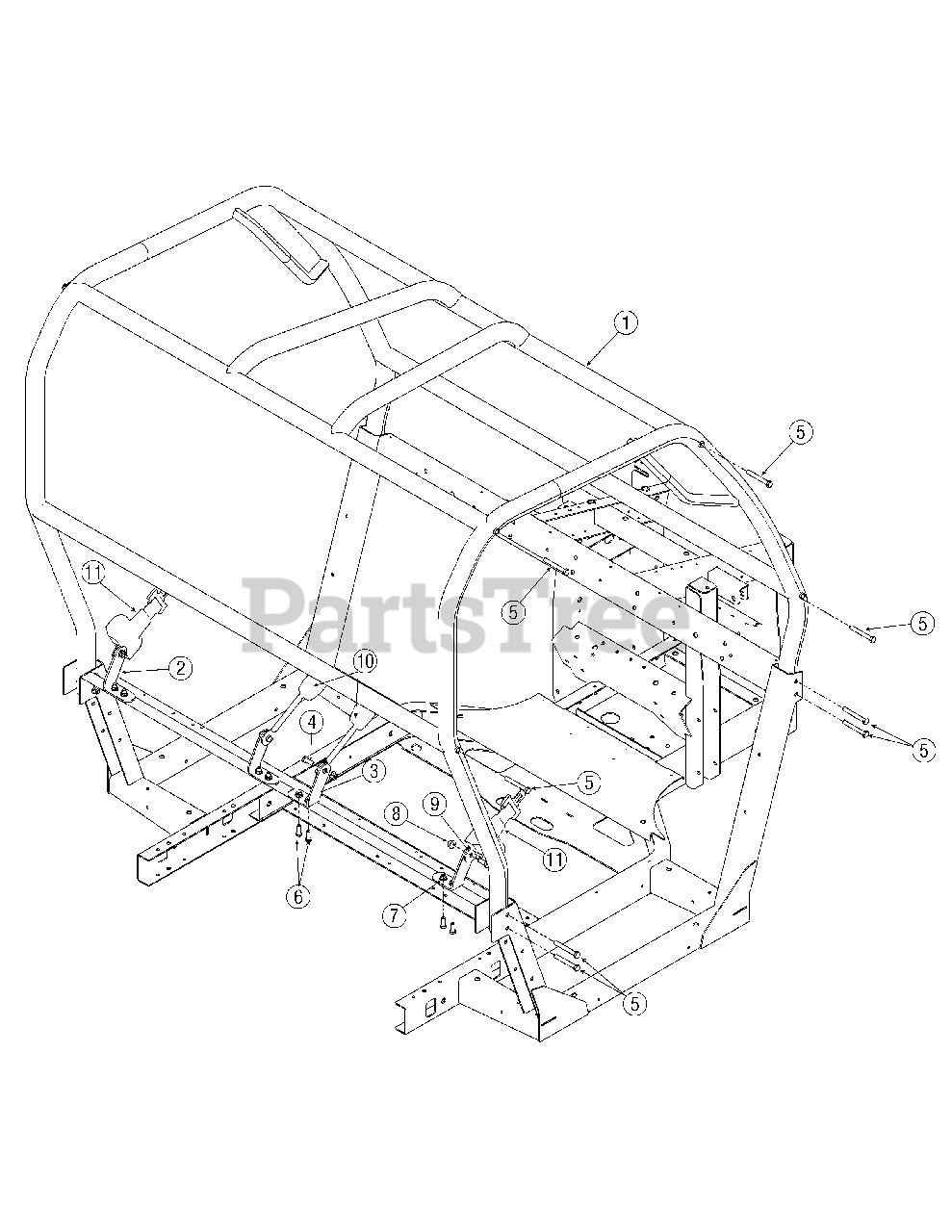

Operator Protective Structure and Seat Belts Parts Diagram

  • Title

1

Cub Cadet 607-04200

Frm Assembly, OPS, UV
(Superseded to 907-04200A)

$

$

Not available

2

Cub Cadet 707-04790

Brkt., Seat Belt, LH

Variations

Cub Cadet 707-04790-0637

BRACKET:SEAT BELT - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04863

Brkt., Seat Belt, RH
(Superseded to 707-04863-0637)

Variations

Cub Cadet 707-04863-0637

BRACKET:SEAT BELT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0514

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3022

Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-3038

Scew, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet 712-04063

Nut, Flglk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Nut, Flglk, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-3039

Wash, Flat, .406 x 1.5 x .105

$5.49

$

In Stock, Qty 7

0

10

Cub Cadet 757-04048

Belt, Seat

$86.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 757-04049

Belt, Seat

$

$

Not available
