Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Kohler - Transmission Accessories Parts Diagram

4x4 Utility Vehicle

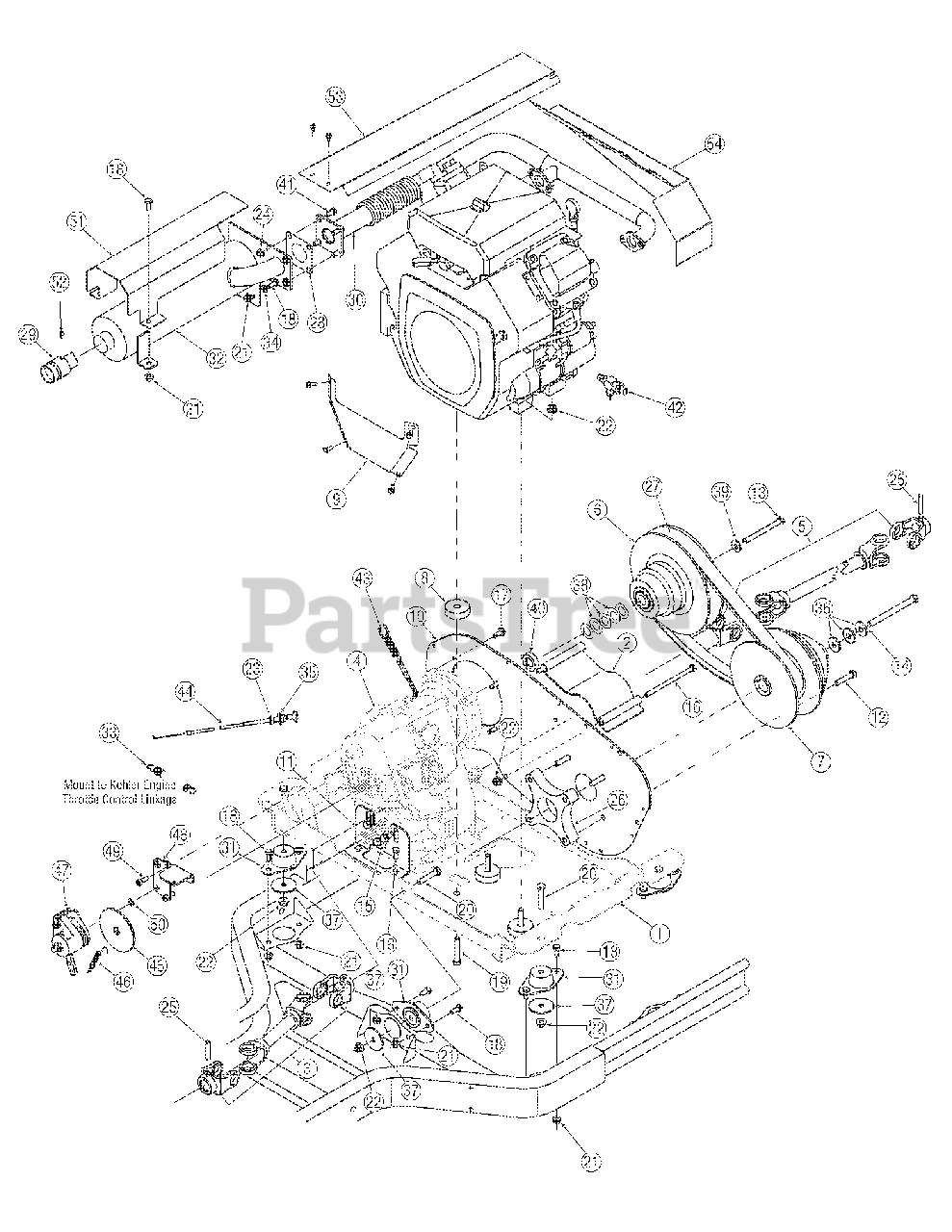

Kohler - Transmission Accessories Parts Diagram

  • Title

1

Cub Cadet 607-04177B-0637

Tray Assembly, eng, 4x4,
(Superseded to 607-04177D-0637)

$537.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04205-0637

Cover, Plate, cvt

$

$

Not available

3

Cub Cadet 918-04306

Shaft Assembly, rr/prop

$800.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-04308

Case Assembly, transfer
(Superseded to 959-05014B)

Note: Replace with 918-04440

$2012.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04440

Case Assembly, transfer
(Superseded to 959-05014B)

Note: includes 710-0620 3/8-24 x 4.50 bolt

$2012.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-04314

Shaft Assembly, frt/prop, Hilliard

$672.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 918-04390

Clutch Assembly, cvt, driven
(Superseded to 918-04390B)

$1452.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 918-04391

Clutch Assembly, cvt, driver,

$1295.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 750-04619

Spcr, engine, kohl, 4x4

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04610-0637

Brkt, engine Shield

$

$

Not available

10

Cub Cadet 707-04631A-0637

Plate, eng/trans, Kohler 20

$

$

Not available

11

Cub Cadet 707-04724-0637

Brkt, trans, mount

$44.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0347

Screw, 3/8-16, 1.75, gr5,

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0944

Screw, 3/8-16, 4.25, Gr5,

Note: use with 618-04308 transfer case

$10.99

$

In Stock, Qty 14

0

13

Cub Cadet 710-0620

Screw, 3/8-24, 4.50, Gr5,

Note: use with 918-04440 transfer case

$11.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-04575A

Screw, 7/16-20, 5.00, gr5,

$

$

Not available

15

Cub Cadet 710-0623

Scr, tt, 3/8-16, 0.750,

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0833

Screw, 5/16-18, 5.25, gr5,

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet 710-1260A

Scr, ld, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3008

Screw, 5/16-18, .75, gr5,

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3011

Screw, 3/8-16, 2.25, gr5,

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3144

Screw, 3/8-16, 2.00, gr5,

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 712-04063

Nut, flglk, 5/16-18, grf, nylon

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Nut, flglk, 3/8-16, grf, nylon

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0711

Nut, jam, 3/8-24, gr5

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3004A

Nut, flglk, 5/16-18, gr5, sd

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 915-0118

Pin, spirol, 5/16, 1.75
(Superseded to 715-0118)

$

$

Not available

26

Cub Cadet 719-04201

Spcr, eng/trans Plt, mount,

$

$

Not available

27

Cub Cadet 754-04125

Belt, cvt, 4x4
(Superseded to 754-04125B)

$114.99

$

In Stock, only 1 left!

0

28

Cub Cadet 721-04167

Gskt, eng, 4x4
(Superseded to 721P04167)

$16.99

$

In Stock, only 1 left!

0

29

Cub Cadet 751-10378

Arstr, scrn, spark

$

$

Not available

30

Cub Cadet 751-10247

Pipe, exh, kohl 4x4

$317.99

$

In Stock, only 1 left!

0

31

Cub Cadet 731-04667

Mt, comprs, eng, hd

$112.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-10152B

Muffler, 4x4, cat/khlr

$1079.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 932-3002

Spring .50 Od X 4.5

$9.49

$

In Stock, only 4 left!

0

34

Cub Cadet 936-0264

Washer, flat, .330 X .630

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 936-0300

Washer, flat, .406 X .875 X
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0322

Washer, flat, .450x1.250x.164,

$9.49

$

In Stock, Qty 9

0

37

Cub Cadet 736-04018

Washer, flat, .38 X 2.00 X

$7.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0566

Washer, fl, .793x1.368 X.025,

$6.99

$

In Stock, Qty 13

0

39

Cub Cadet 936-0452

Washer, Bell, .396 x 1.14 X
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

40

Cub Cadet 750-04626B

Spcr, 20mm X 1.50 X .37

$63.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-3038

Screw, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

42

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

43

Cub Cadet 759-04262

Kit, Throttle Cable
(Superseded to 759-05015)

$416.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 746-04292

Cbl, cont, choke, 4x4 Kohl
(Superseded to 946-04292)

$55.99

$

In Stock, only 1 left!

0

45

Cub Cadet 717-1177A

Disc, Brake, UV

$34.99

$

In Stock, only 2 left!

0

46

Cub Cadet 732-04248

Spr., Ext., .38OD x 3.9

$10.99

$

In Stock, only 2 left!

0

47

Cub Cadet 661-04019

Brake Assembly, Transfer

$141.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 761-04060

PUCK-BRAKE

Note: Not shown

$32.99

$

In Stock, Qty 9

0

48

Cub Cadet 707-04879-0637

Brake, Brake Mounting

$

$

Not available

49

Cub Cadet 710-1314A

Screw, Soc. Hd. 5/16-18 x

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 936-0117

Washerer, Flat, .385 x .62

$7.49

$

In Stock, only 1 left!

0

51

Cub Cadet 707-04891

Heat Shield, Exhaust

$78.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-0148

Screw, Hex #8-32 x .375

$4.49

$

In Stock, Qty 16

0

53

Cub Cadet 707-04887A

Cover, Heat Shield
(Superseded to 707-04887C)

$73.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 707-04889A

Cover, Engine Shield

$

$

Not available

Cub Cadet 959-04116

Brake Pad Set

Note: Not shown

$124.99

$

In Stock, Qty 9

0
