Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Kohler - Blower Housing and Baffles Parts Diagram

4x4 Utility Vehicle

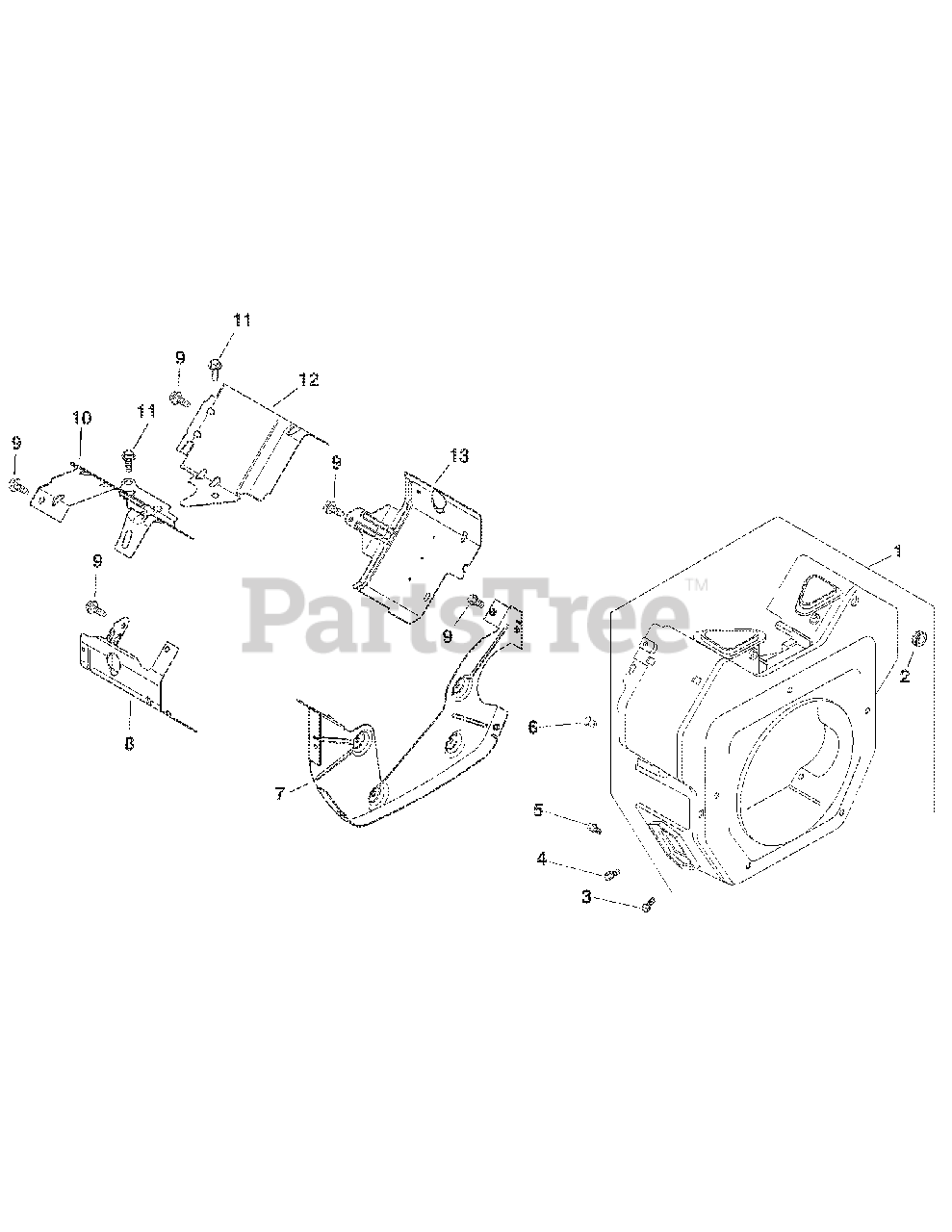

Kohler - Blower Housing and Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-163-S

Housing, blower (Includes 2, KH-41-037-10-S)

$

$

Not available

2

Cub Cadet KH-25-313-06-S

Grommet

$

$

Not available

4

Cub Cadet KH-24-100-02

Nut, plastic (2)

$

$

Not available

3

Cub Cadet KH-M-561016-S

Screw, hex. Flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-545016-S

Screw, hex. Flange M5x0.8x16 (3)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-545020-S

Screw, hex. Flange M5x0.8x20 (2)
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-332-01-S

Insert, Threaded

$

$

Not available

7

Cub Cadet KH-24-146-50-S

Plate, backing (Includes KH-25-154-11-S)
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-063-39-S

Baffle, cylnd barrel - #2 side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-645016-S

Screw, hex. Flange M6x1.0x16 (6)

$3.99

$

In Stock, Qty 15

0

10

Cub Cadet KH-24-063-70-S

Baffle, valley - #2 side

$

$

Not available

11

Cub Cadet KH-M-545010

Screw, hex. Flange M5x0.8x10 (2)
(Superseded to KH-M-0545010)

$

$

Not available

12

Cub Cadet KH-24-063-59-S

Baffle, valley - #1 side
(Superseded to KH-24-063-93-S)

$

$

Not available

13

Cub Cadet KH-24-063-58-S

Baffle, cylinder barrel -#1 side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-146-20-S

Plate, backing - #1

$

$

Not available

Cub Cadet KH-24-113-08-S

Decal, 20 HP

Note: Not Shown

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-113-39-S

Decal, clear lamination
(Superseded to KH-25-113-79-S)

Note: Not Shown

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-41-037-10-S

Nameplate, service

Note: Not Shown

$8.99

$

In Stock, only 4 left!

0

Cub Cadet KH-25-154-11-S

Clip, repair (speed nut)

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-086-35-S

Screw, lbd sckt pan M5x0.8x10

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-468-10

Washer, flat, 7/32"

Note: Not Shown

$

$

Not available
