Volunteer 466 EFI (37BM466D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H030Z - 1G192Z) Fenders & Dash Parts Diagram

4x4 Utility Vehicle

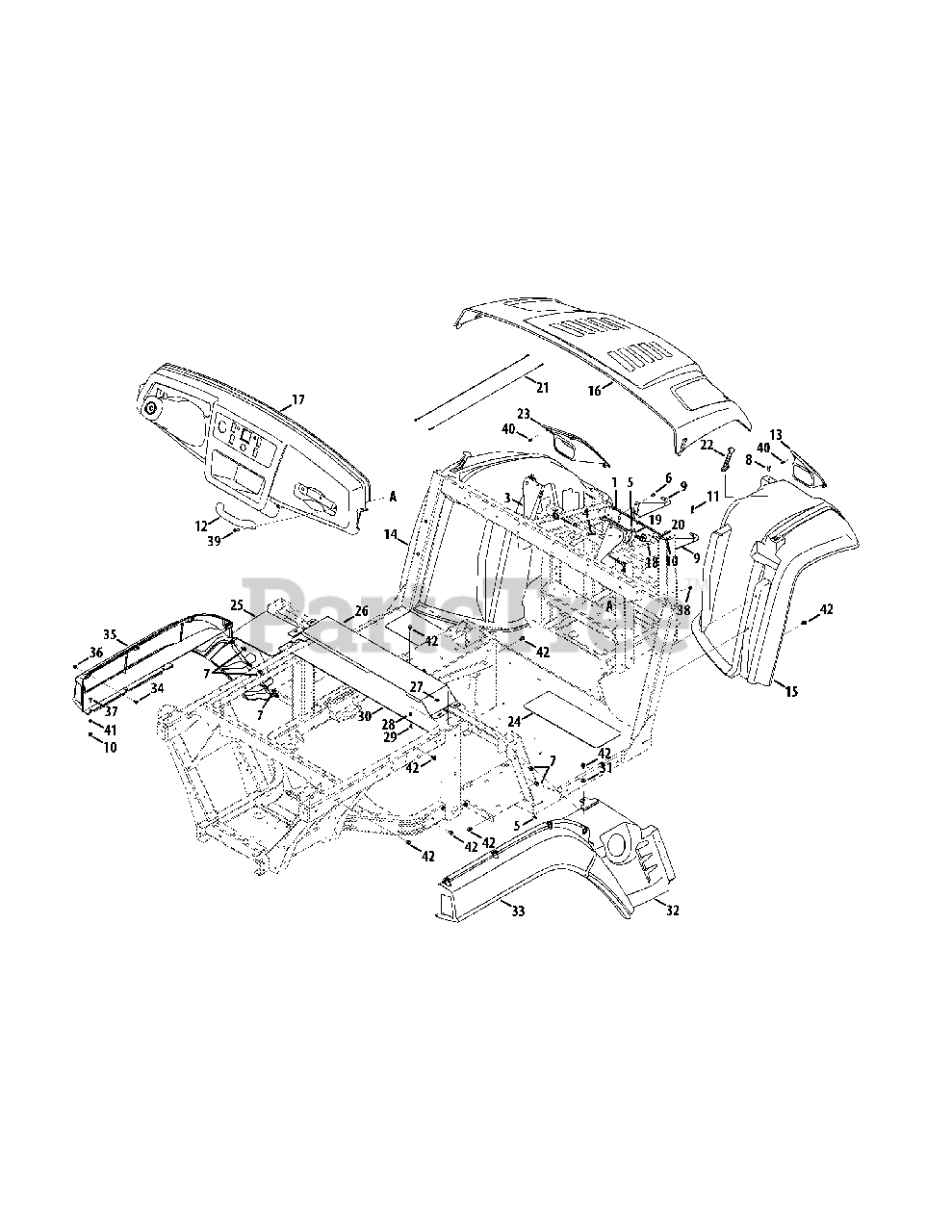

Fenders & Dash Parts Diagram

  • Title

1

Cub Cadet 707-04484

Channel, Frame, Cross

Variations

Cub Cadet 707-04484-0637

CHANNEL-FRAME CROSS - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04779A-0637

Bracket, Hood/dash, Mount, Rh

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04782A-0637

Bracket, Hood/dash, Mount, Lh

$40.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0136

Screw, 1/4-20, 1.75, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04261

Screw, #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

6

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04187

Screw, TT, 1/4-15 x .500
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05105

Hex Head Screw, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 607-04224-0637

Rod Assembly, Hood Mount

$83.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 914-0101

Cotter Pin, Internal .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

12

Cub Cadet 731-06155

Handle, W/Screw 400/500 S

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-05285

Head Light RH
(Superseded to 731-05285A)

$22.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-06710

Fender, Lh 4x4
(Superseded to 931-06710A)

$193.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-05454B

Fender, Lh 4x4, Camo

$455.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-06711

Fender, Rh 4x4
(Superseded to 931-06711A)

$193.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-05455B

Fender, Rh 4x4, Camo

$

$

Not available

16

Cub Cadet 731-06638

Hood, 4x4
(Superseded to 731-06638A)

$294.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-05456

Hood, 4x4, Camo

$

$

Not available

16

Cub Cadet 731-06717

Hood, 4x4, Camo, Treestand

$509.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-06715

Hood, 4x4, Green
(Superseded to 931-06715)

$263.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-07019

Hood, 4x4, Red
(Superseded to 931-10331)

$551.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-05322A

Dash, Uv 4x4
(Superseded to 931-05322C)

$204.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-3232

Roller, Latch, Hood

$8.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-1178

Spring, Latch, Hood

$28.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 746-04328

Cable, Hood

$23.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 735-04145

Strap, Hood

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-05284

Head Light LH
(Superseded to 731-05284A)

$22.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 723-04021

Pad, abrasive, toe plate (4x4)

$36.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-05282A

Fender, Lwr Lh Rr
(Superseded to 931-05282B)

$100.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-05452

Fender, Lwr Lh Rr, Camo

$

$

Not available

26

Cub Cadet 707-04748A-0637

Cover, Uv

$106.99

$

In Stock, only 1 left!

0

27

Cub Cadet 726-3056

Latch, Panel, 1/4 Turn

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0937

Spring, Comprs, .40 OD x .040 Dia.

$8.49

$

In Stock, only 2 left!

0

29

Cub Cadet 732-0936

Spring, Clip
(Superseded to 726-05561)

$

$

Not available

30

Cub Cadet 751-10435

Insulator, Cover, UV

$80.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 731-05283A

Fender, Lower Rh Rr
(Superseded to 931-05283B)

$100.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-05453

Fender, Lower Rh Rr Camo

$

$

Not available

33

Cub Cadet 731-05281A

Fender, Rh Rr
(Superseded to 759-05060)

$455.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-05451A

Fender, Rh Rr, Camo

$402.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0286

Screw, Mach., 1/4-20 x .500

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-05280A

Fender, Lh Rr
(Superseded to 759-05060)

$455.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-05450A

Fender, Lh Rr, Camo

$

$

Not available

36

Cub Cadet 712-0264

Nut, Acorn, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0134

Screw, Crg, 1/4-20, .62, Gr2

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0324

Nut, Hex Lock., 1/4-20

$3.99

$

In Stock, Qty 16

0

39

Cub Cadet 710-0166A

Screw, Machine, 1/4-20 x 1.00

$7.49

$

In Stock, only 1 left!

0

40

Cub Cadet 710-1652

Screw, Tt, 1/4-20 x .625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0173

Washer, Flat 1/4"

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 710-04484

Screw, tt, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0
