Volunteer 466 Diesel (37BK466D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1G202Z - 1G313Z) Steering Parts Diagram

4x4 Utility Vehicle

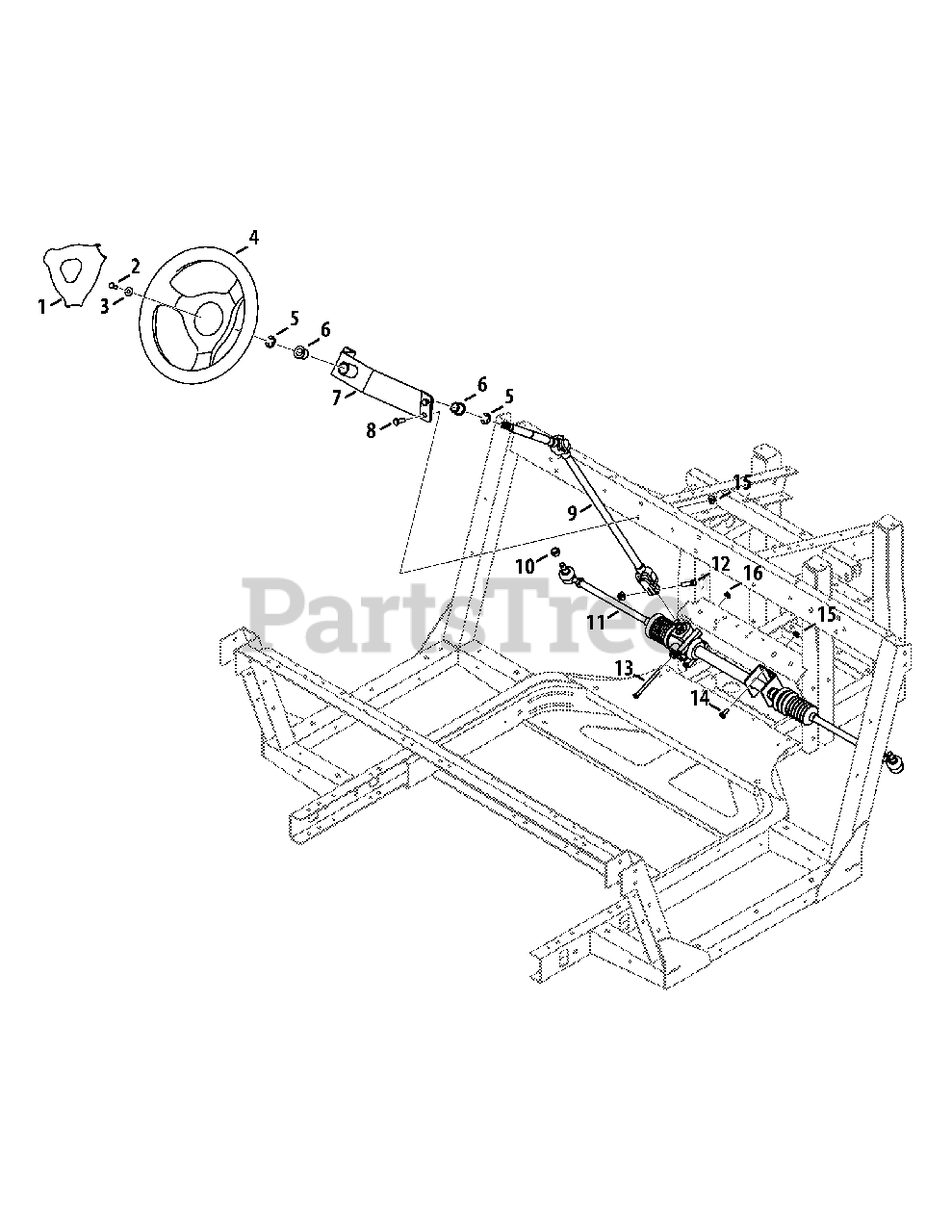

Steering Parts Diagram

  • Title

1

Cub Cadet 731-06459

Cover, Steering Wheel

$21.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0643

Screw, 5/16-18 x 1.00, gr5, patch

$6.99

$

In Stock, Qty 5

0

3

Cub Cadet 736-0242

Washer, bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-04514

Steering Wheel, Soft Grip 3 Spoke 5/8

$172.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 916-0231

Ring, e Type, .750
(Superseded to 716-0231)

$

$

Not available

6

Cub Cadet 941-0339

Flange Bearing, .754id x 1.00od x.925

$12.99

$

In Stock, Qty 20+

0

7

Cub Cadet 607-04124

Support Assembly, Steering Wheel

Variations

Cub Cadet 607-04124-0637

SUPPORT ASM:STRG W - POWDER BLACK (0637)

$125.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0514

Screw, 3/8-16 x 1.00, gr5, std

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 717-04200

Shaft, Steering

$381.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04086

Nut, Nylock, m12 x 1.25

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 617-04041P

Steering Assembly

$

$

Not available

12

Cub Cadet 710-3005

Screw, 3/8-16 x 1.25, gr5, std

$3.99

$

In Stock, Qty 10

0

13

Cub Cadet 710-1266

Screw, 5/16-18 x 3.50, gr5, std

$9.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3008

Screw, 5/16-18 x .75, gr5, std

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, only 4 left!

0
