Volunteer 466 Diesel (37AK466D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Radiator Parts Diagram

4x4 Utility Vehicle

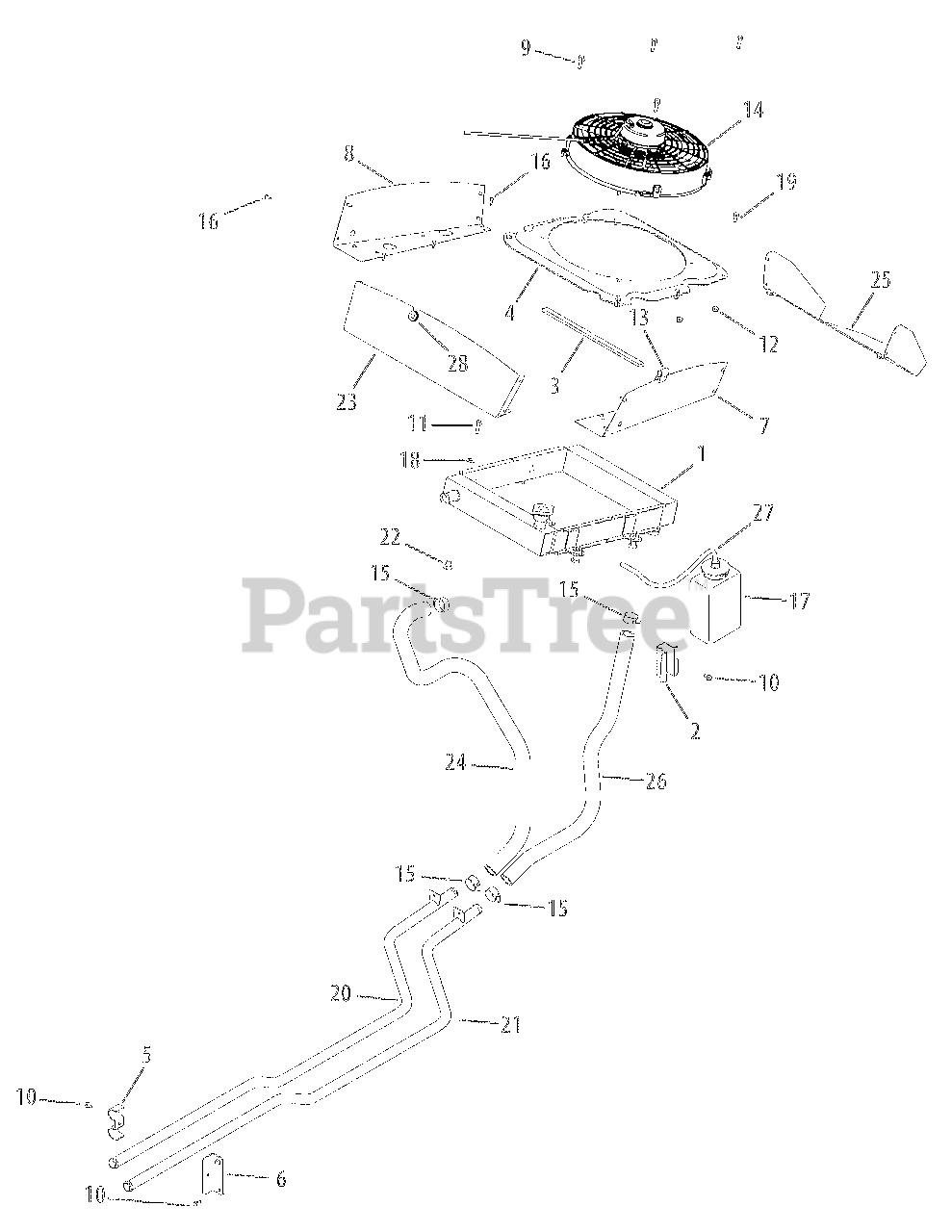

Radiator Parts Diagram

  • Title

1

Cub Cadet 951-04148

Radiator Asm, zin Core

$1149.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 759-04130

Radiator Dran Plug

Note: Not shown

$

$

Not available

1

Cub Cadet 759-04131

Radiator Temp Sensor
(Superseded to 959-04131)

Note: Not shown

$

$

Not available

1

Cub Cadet 759-04132

Radiator Mount Gromment

Note: Not shown

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05461A-0637

Brkt, over Flow, bottle
(Superseded to 703-05461B-0637)

$66.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 722-3022-12

Tape, .625 Wide x .25 Thk Foam
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-05688

Shrd, Fan, Mount

$178.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04659-0637

Brkt, tube, uv

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-04697-0637

Brkt, rdtr Hose

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04894-0637

Shrd, rh

$41.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04895-0637

Shrd, lh

$41.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0597

Hhcs, 1/4-20, 1.00, gr5

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-0599

Scr, tt, 1/4-20, 0.500, hxindwsh

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0788

Scr, tt, 1/4-20, 1.000, hxindwsh

$7.49

$

In Stock, only 4 left!

0

12

Cub Cadet 712-04064

Nut, flglk, 1/4-20, grf, nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-3061

Heat Baffle Seal

$2.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-04766

Fan, electric, 12v, w/Guard

Note: Yanmar

$471.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-04224A

Fan, electric, 12v, w/Guard

Note: Kohler EFI

$

$

Not available

15

Cub Cadet 726-0132

Clamp, hose, adj

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 928-0123

Pop Rivet 3/16 Dia x .450, sty1

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-04731

Cntnr, over Flow, coolant

$143.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0173

Wash, flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-0751

Scr., 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 750-04769A-0637

Tube, inside, rdtr 4x4

$117.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-04768-0637

Tube, outside, rdtr 4x4

$117.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-04762

Spcr, Step

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 707-04896-0637

Shrd, rear

$44.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-10256

Hose, rdtr, frt 4x4

$65.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 707-04897-0637

Shrd, front

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-10261

Hose, rdtr, frt 4x4

$65.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-10377

Tube, overflow, rdtr

$8.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-0225

Grommet, Rubber, Yan

$3.49

$

Usually ships in 3-6 days

0
