Volunteer 466 Diesel (37AJ466D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Rear Left Fender and Cargo Bed Parts Diagram

4x4 Utility Vehicle

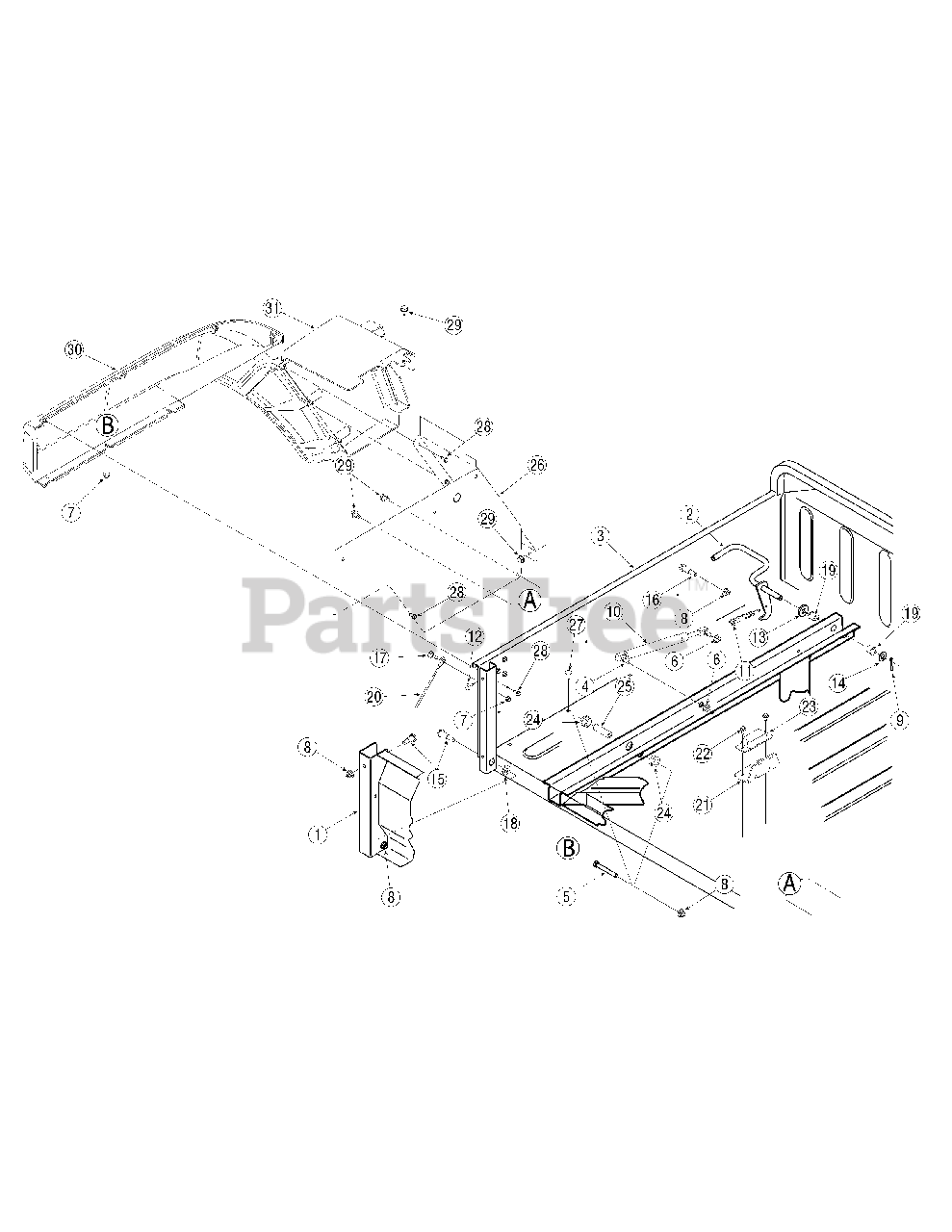

Rear Left Fender and Cargo Bed Parts Diagram

  • Title
1

Cub Cadet 607-04159

Tgt Asm
(Superseded to 607-04159A)

Variations

Cub Cadet 607-04159-0637

USE 607-04159B-0637 TAILGAIT - POWDER BLACK (0637)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159-4021

USE 607-04159B-4021 TAILGAIT - CUB YELLOW 2 (4021)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159-0716

USE 607-04159B-0716 TAILGAIT - CUB YELLOW-99 (0716)

$378.99

$

Usually ships in 3-6 days

0

$330.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04180

Lvr Asm, bed, latch

$70.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04191

Box Asm, bed
(Superseded to 607-04191C)

Variations

Cub Cadet 607-04191-0637

USE 607-04191C-0637 BOX ASSY- - POWDER BLACK (0637)

$778.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04191-0716

USE 607-04191C-4021 BOX ASSY- - CUB YELLOW-99 (0716)

$778.99

$

In Stock, only 1 left!

0

Cub Cadet 607-04191-4021

USE 607-04191C-4021 BOX ASSY- - CUB YELLOW 2 (4021)

$778.99

$

In Stock, only 1 left!

0

$707.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04166

Stud, ball, 5/16-18

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3022

Screwew, 3/8-16, 2.75, gr5, std

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 712-04063

Nut, flglk, 5/16-18, grf, nylon

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

Nut, flglk, 1/4-20, grf, nylon

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Nut, flglk, 3/8-16, grf, nylon

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0162

Pin, cot, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 732-04109

Spr, gas, 6.91 Stroke
(Superseded to 932-04109B)

$87.99

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0428A

Spr, extn, .50 Od X 4.35 Lg

$

$

Not available

12

Cub Cadet 735-0271

Bmpr, .62 Dia. x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-04019

Wash, flat, .531 X 1.25 X .181

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0572

Wash, flat, .510 X 1.00 X .060
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0430

Screw, shldr, .50 X .685, 3/8-16

$11.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0966A

Screw, shldr, .50x.925, 3/8-16

$4.99

$

In Stock, Qty 19

0

17

Cub Cadet 738-1023

Screw, shldr, .375x.280, 1/4-20
(Superseded to 738-1023A)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 741-0324

Brg, flg, hex, .506 Id X .590 L
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

19

Cub Cadet 741-0673

Brg, flg, .503 X .689 X .792
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

20

Cub Cadet 746-04245

Cable, lanyard

$20.99

$

In Stock, Qty 6

0

21

Cub Cadet 707-04786

Brkt, Bed Guide

Variations

Cub Cadet 707-04786-0637

BRACKET:BED GUIDE - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-1652

Screw, tt, 1/4-20x.625, hxindwsh,

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 731-04016

Bmpr, suspn, extn

$45.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 748-0229

Brg, hex Flng .629 Id
(Superseded to 948-0229)

$

$

Not available

25

Cub Cadet 750-04634

Spcr, .390 Id X.625 OD X 2.03 LG

$43.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 707-04728

Brkt, Lh, Shld
(Superseded to 707-04728D-0637)

Variations

Cub Cadet 707-04728-0637

Shield Bracket, LH - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0134

Screw, Crg, 1/4-20, .62, Gr2 (not on camo units)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-04261

Screw, #12-16, .50, Hxindwsh

$6.49

$

In Stock, only 3 left!

0

29

Cub Cadet 710-0607

Screw, Tt, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

30

Cub Cadet 731-05280

Fdr, Lh Rear
(Superseded to 759-05060)

$455.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-05450

Fdr, Lh Rr, Camo
(Superseded to 731-05450A)

$

$

Not available

31

Cub Cadet 731-05282

Fdr, Lwr Lh Rear
(Superseded to 931-05282B)

$100.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-05452

Fdr, Lwr Lh Rr, Camo

$

$

Not available
