Volunteer 466 (37BC466D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1H030Z - 1G192Z) Kohler Engine - Oil Pan & Lubrication Parts Diagram

4x4 Utility Vehicle

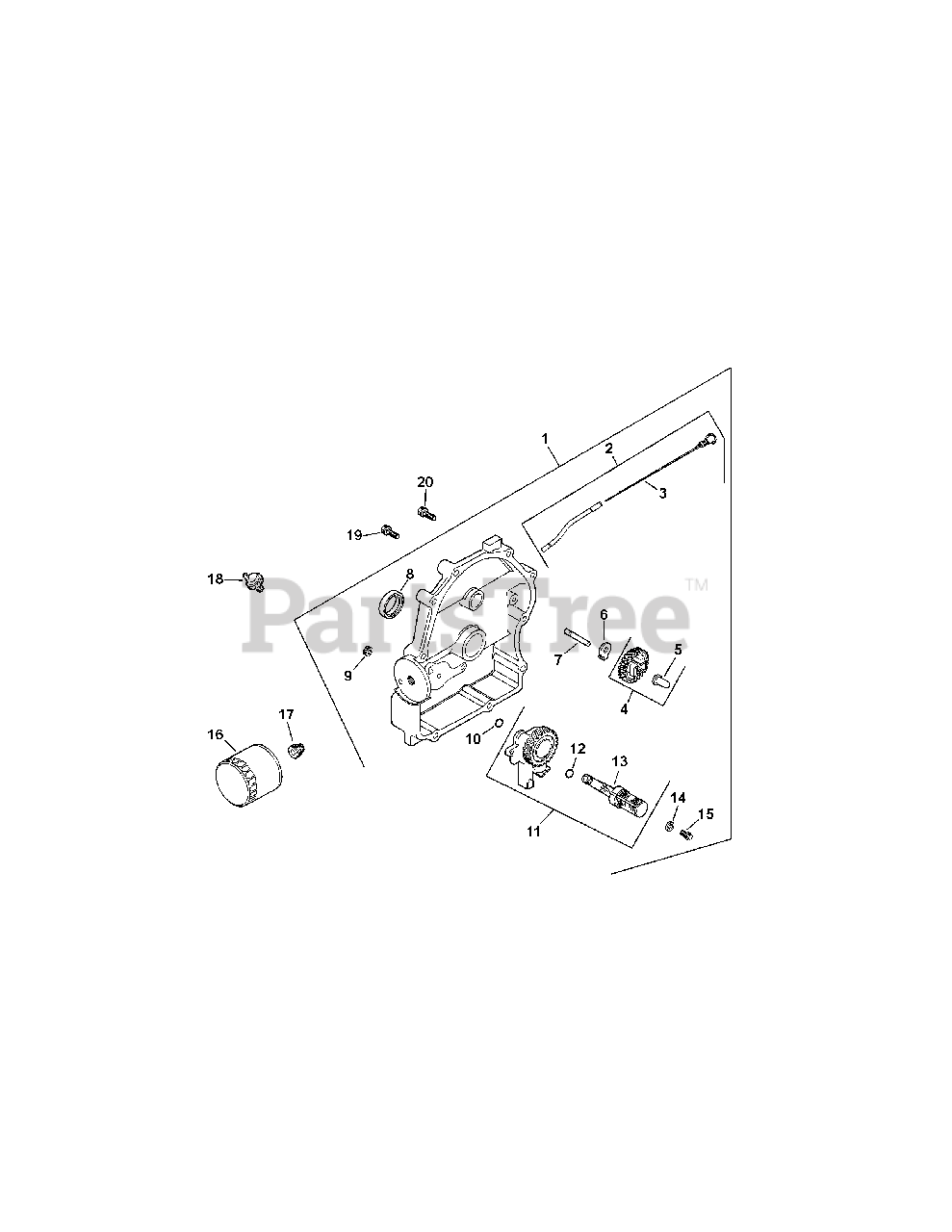

Kohler Engine - Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-167-S

Plate, closure ass’y (Incl. 2-15)
(Superseded to KH-24-009-227-S)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

Kit, tube w/dipstick (Includes 3)

$35.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-24-043-12

Kit, governor gear (Includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, governor regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, locking

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02

Shaft, governor gear

$

$

Not available

8

Cub Cadet KH-25-032-06-S

Seal, oil (PTO end)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

Plug, pipe 1/8" (2)

$3.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

11

Cub Cadet KH-24-393-51-S

Oil pump ass’y (Includes 12,13)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-Ring, oil pick-up

$

$

Not available

13

Cub Cadet KH-24-381-04

Pick-up, oil

$

$

Not available

14

Cub Cadet KH-M-631005

Washer, plain 6 mm (2)

$

$

Not available

15

Cub Cadet KH-M-645025-S

Screw, hex flange M6x1.0x25 (2)
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-12-050-01-S

Filter, oil

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01

Nipple, oil filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-099-27-S

Switch, pressure

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-086-17-S

Screw, hex flg, M8x1.25x45 (9)

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-24-086-17-S

Screw, hex. flange M8x1.25x45

$2.49

$

In Stock, Qty 7

0

Cub Cadet KH-25-113-05

Decal, oil sentry

Note: Not shown

$

$

Not available

Cub Cadet KH-24-113-08

Decal, 20 HP

Note: Not shown

$

$

Not available

Cub Cadet KH-25-113-39-S

Decal, clear laminate
(Superseded to KH-25-113-79-S)

Note: Not shown

$2.49

$

In Stock, only 4 left!

0
