Volunteer 466 (37BC466D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1H030Z - 1G192Z) Kohler Engine - Fuel System Parts Diagram

4x4 Utility Vehicle

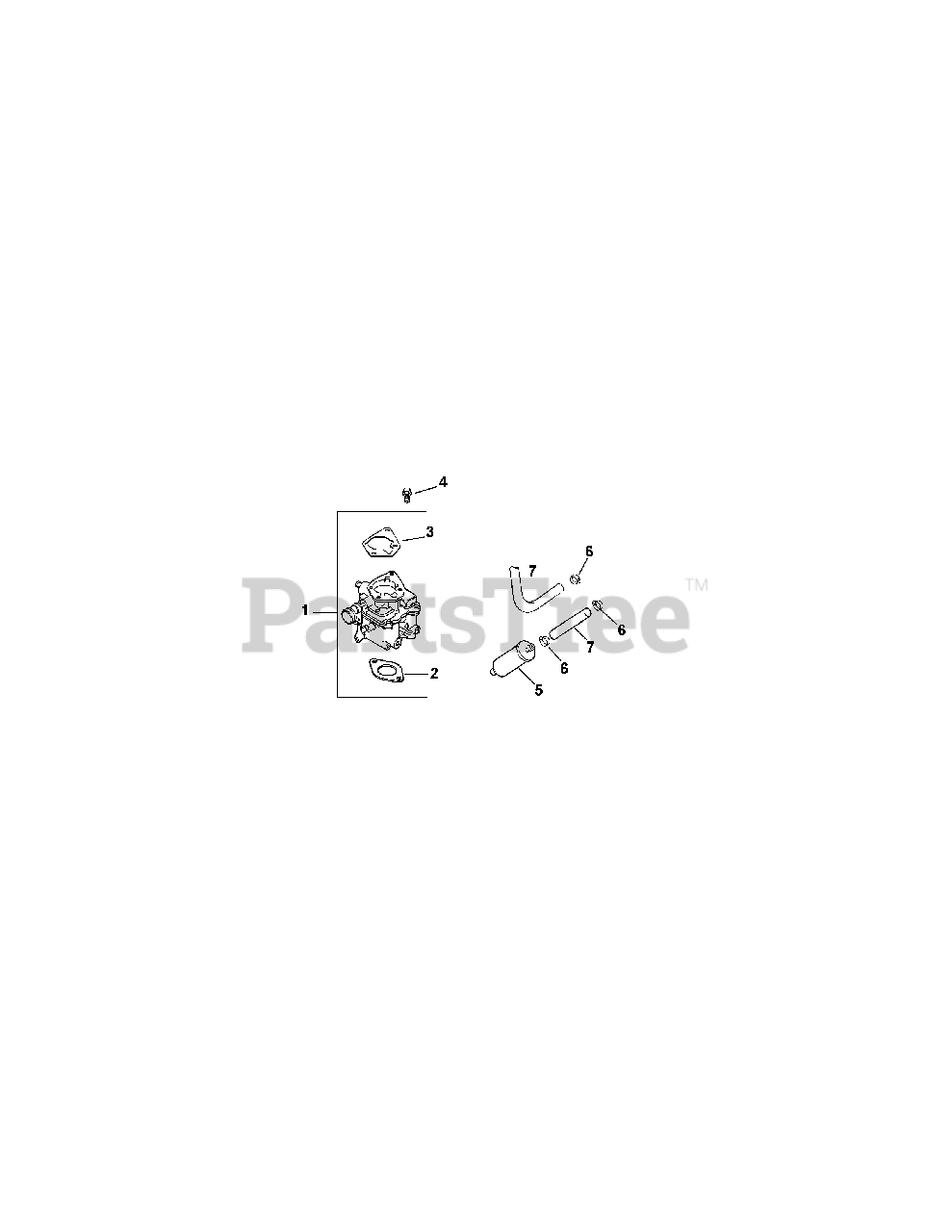

Kohler Engine - Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-144-S

Kit, carb w/gasket (Incl 2,3)
(Superseded to KH-24-853-181-S)

$434.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-06

Gasket, air cleaner base

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-041-53-S

Gasket, carburetor

$3.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-M-651025-S

Screw, hex flange M6x1.0x25 (2)
(Superseded to KH-25-086-124-S)

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-050-13-S

Filter, fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-237-14-S

Clamp, hose (4)
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-111-34-S

Line, fuel 24" - cut to length (2)
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 6

0

Cub Cadet KH-24-518-24-S

Lead, ground

Note: Not shown, (solenoid to carb mounting screw)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-755-125-S

Kit, high altitude

Note: Not shown

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, solenoid

Note: Not shown

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, float

Note: Not shown

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, carburetor repair

Note: Not shown

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, choke repair

Note: Not shown

$

$

Not available
