Volunteer 466 (37BC466D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1H030Z - 1G192Z) Kohler Engine - Air Intake & Exhaust Parts Diagram

4x4 Utility Vehicle

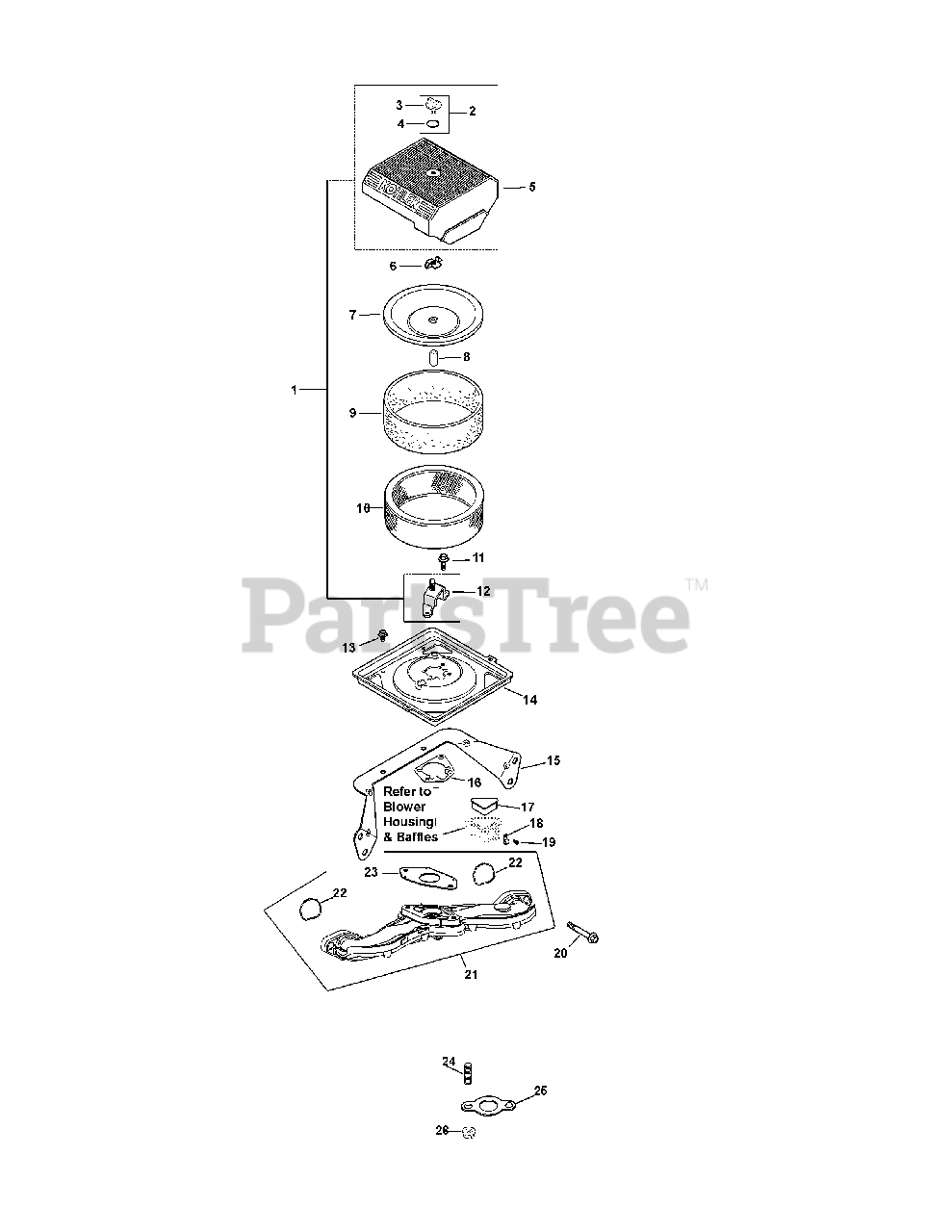

Kohler Engine - Air Intake & Exhaust Parts Diagram

  • Title
1

Cub Cadet KH-24-743-08

Kit, air cleaner cover (Incl 2 5,12)

$

$

Not available

2

Cub Cadet KH-54-755-01-S

Kit, knob w/seal (Includes 3,4)

$9.49

$

In Stock, Qty 9

0

3

$7.99

$

Usually ships in 2-5 days

0

$2.49

$

In Stock, Qty 10

0

5

Cub Cadet KH-24-096-69-S

Cover, air cleaner

$47.99

$

Usually ships in 2-5 days

0

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-096-01

Cover, inner air cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, inner air cleaner

$4.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-47-883-03-S1

Element, precleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-47-883-03-S1

Element, air cleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-086-53-S

Screw, flg thd frm M6x1.0x16

$2.49

$

In Stock, Qty 6

0

12

Cub Cadet KH-24-126-21

Bracket, air cleaner
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 6

0

13

Cub Cadet KH-M-0545010

Screw, flg thd frm M5x0.8x10

$

$

Not available

14

Cub Cadet KH-24-094-39-S

Base, air cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-126-130-S

Bracket, air cleaner base

$10.99

$

In Stock, only 4 left!

0

16

Cub Cadet KH-24-041-06

Gasket, air cleaner base

$2.99

$

In Stock, Qty 19

0

17

Cub Cadet KH-24-096-17-S

Cover, blower housing
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, only 2 left!

0

18

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-086-91-S

Screw, wsh hd tap #8-18x1/2"

$3.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-M-651040-S

Screw, flg M6x1.0x40

$2.49

$

In Stock, Qty 12

0

21

Cub Cadet KH-24-164-93-S

Manifold, intake - plastic (Includes 22 & 23)
(Superseded to KH-24-164-276-S)

$219.99

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-24-153-27-S

O-Ring, intake port

$3.99

$

In Stock, Qty 8

0

23

Cub Cadet KH-24-041-53-S

Gasket, carburetor

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet KH-25-072-04

Stud M8x1.25x33 (4)
(Superseded to KH-25-072-24-S)

$3.99

$

In Stock, Qty 14

0

25

Cub Cadet KH-24-041-49-S

Gasket, exhaust manifold (2)

$

$

Not available

26

Cub Cadet 712-3086

Nut, hex. flange M8x1.25 (5)

$4.49

$

In Stock, only 2 left!

0
