Volunteer 466 (37BC466D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1G202Z - 1G313Z) Kohler CH640-3053 Crankcase Parts Diagram

4x4 Utility Vehicle

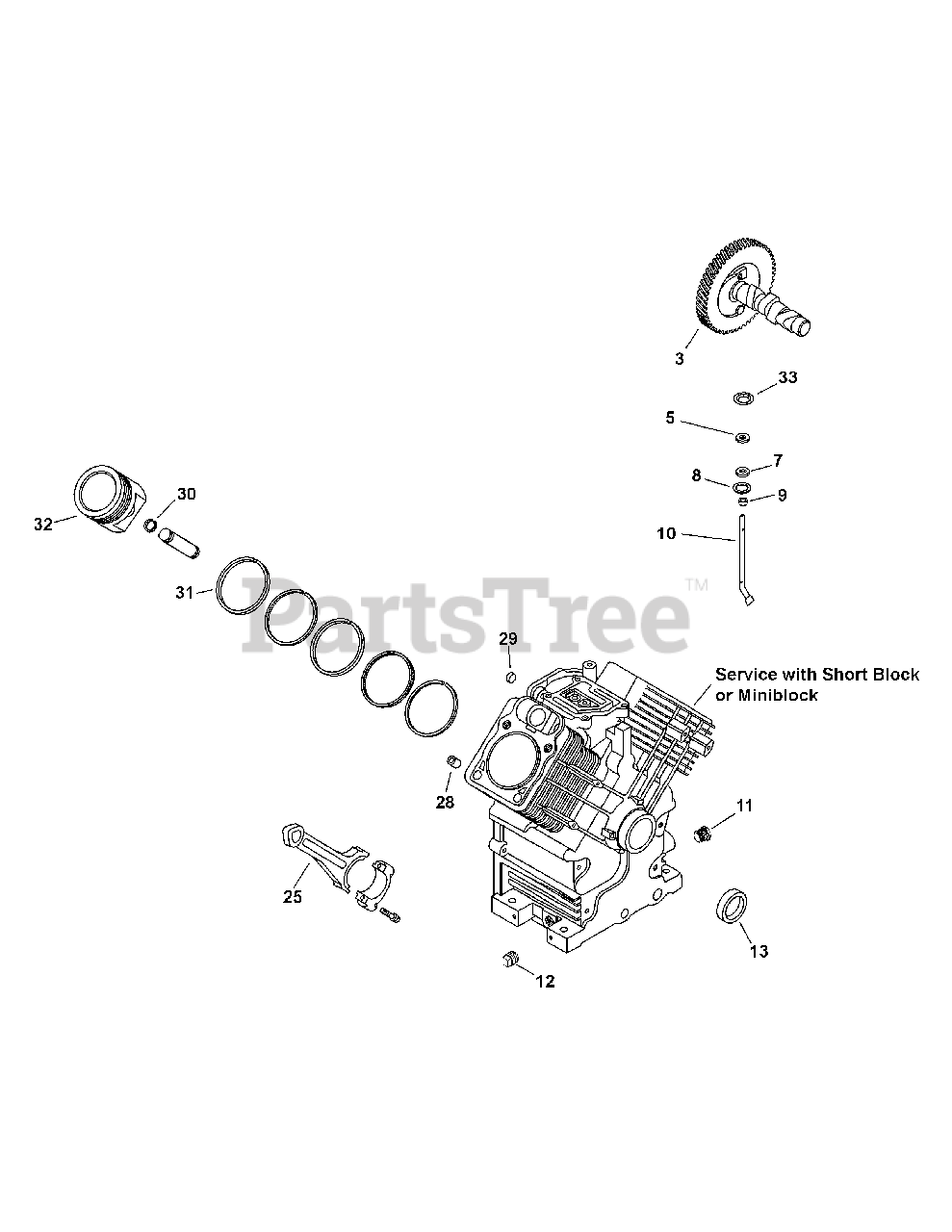

Kohler CH640-3053 Crankcase Parts Diagram

  • Title

3

Cub Cadet KH-24-012-10-S

Kit, Camshaft
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-931010-S

Washer, Flat 9 Mm

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

8

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32"

$2.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe 3/8"

$2.49

$

In Stock, only 3 left!

0

13

Cub Cadet KH-24-032-19-S

Oil Seal (Helix Lip)

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet KH-24-067-30-S

Rod Assy, Connecting
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

28

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

29

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

30

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

31

Cub Cadet KH-24-108-22-S

Ring Set (Std)

$

$

Not available

31

Cub Cadet KH-24-108-23-S

Ring Set (.08)

$

$

Not available

31

Cub Cadet KH-24-108-24-S

Ring Set (.25)

$

$

Not available

31

Cub Cadet KH-24-108-25-S

Ring Set (.50)

$

$

Not available

32

Cub Cadet KH-24-874-46-S

Kit, Piston Assy W/Ring(Std)77Mm

$

$

Not available

32

Cub Cadet KH-24-874-47-S

Kit, Piston Assy W/Ring Set(.08)77Mm

$

$

Not available

32

Cub Cadet KH-24-874-48-S

Kit, Piston Assy W/Ring Set(.25)77Mm

$

$

Not available

32

Cub Cadet KH-24-874-49-S

Kit, Piston Assy W/Ring Set(.5)77Mm

$

$

Not available

33

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-CH640-3053

Engine, Complete

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-522-438

Short Block

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-782-15

Mini Block

Note: (Not Shown)

$

$

Not available
