Volunteer 466 (37AC466D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Seats Battery Fuel Tank Parts Diagram

4x4 Utility Vehicle

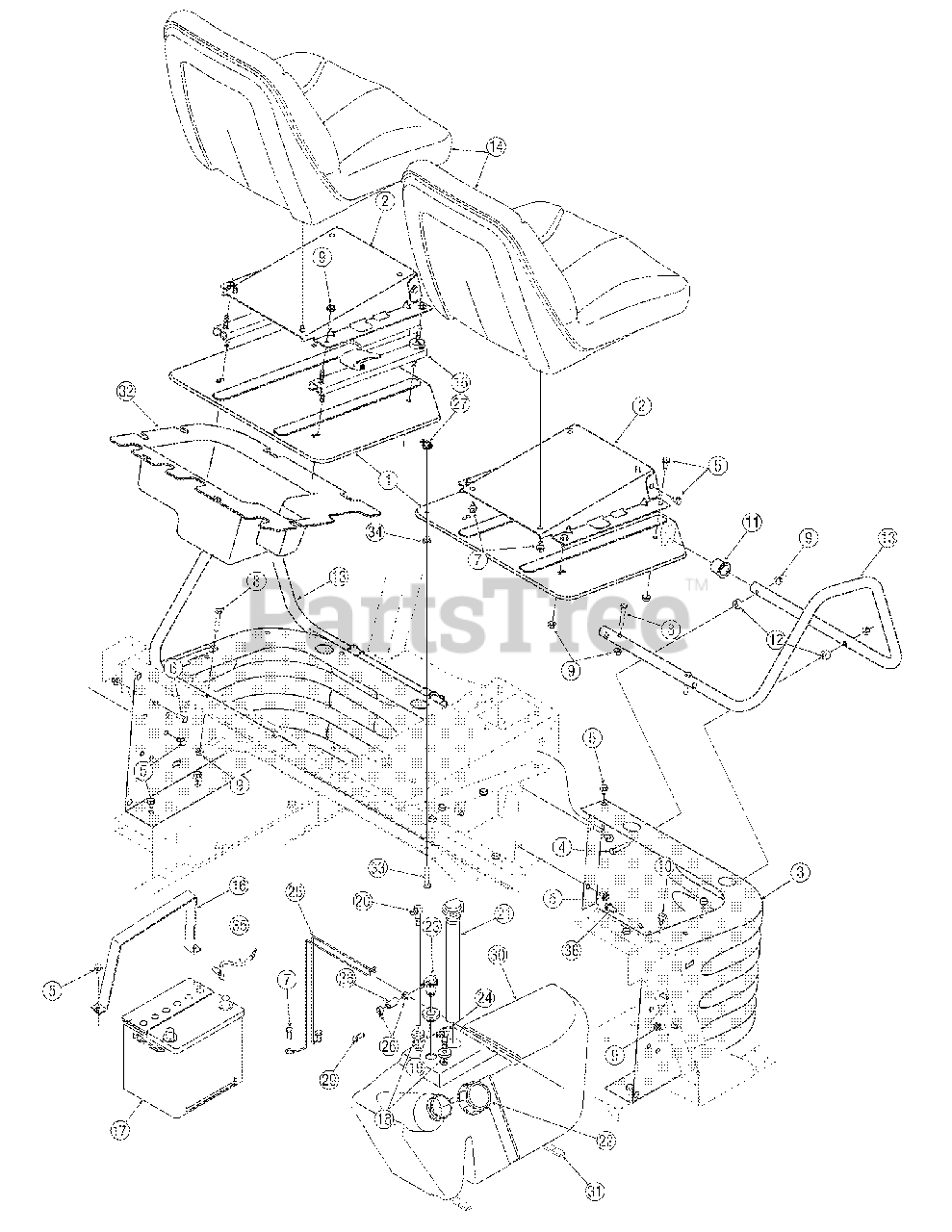

Seats Battery Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 607-04228B

Plt, Seat
(Superseded to 607-04228B-0637)

Variations

Cub Cadet 607-04228B-0637

Seat Uv Plate Assembly - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04654

Brkt., Mt., Seat
(Superseded to 707-04654B-0637)

Variations

Cub Cadet 707-04654-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04223

Box, Seat
(Superseded to 607-04223-0637)

Variations

Cub Cadet 607-04223-0637

BOX ASSY:SEAT UV - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0260A

Bolt, Crg., 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0607

Scr., TT, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0607

Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

8

Cub Cadet 710-3180

Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Nut, Flglk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 735-0271

Bmpr, .62 Dia. x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

11

Cub Cadet 741-04215

Brg, Flg, .894 ID x 1.1315

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 750-0258

Spcr, .315 x .750 x .375

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-04424

Hndl, Grab

Variations

Cub Cadet 750-04424-0637

HANDLE:GRAB - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 750-04424-0685

USE 750-04424-0637 HANDLE:GRA - CUB BLUE (0685)

$113.99

$

Usually ships in 3-6 days

0

$98.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 757-04008A

Seat
(Superseded to 757-04097)

$426.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 757-04033

Track, Seat
(Superseded to 957-04033)

$68.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 707-04870

Brkt., Mt., Battery
(Superseded to 707-04870B-0637)

Variations

Cub Cadet 707-04870-0637

USE 707-04870A-0637 BRACKET-M - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-04514

Battery, 540 CCA Dry
(Superseded to 925-04514)

Note: (Service replacement battery must be filled with acid before installation, purchase locally)

$314.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-04065

Bush, Tank, Gas

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 735-04067

Bush, Tank, Vent

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 751-10288

Ftg, Fuel, Pickup, 4x4

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 751-10361

Sensor, Fuel, Low
(Superseded to 951-10361)

$133.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-0699

Grommet 1.21X1.58 (for fuel sensor)

Note: not shown

$16.99

$

In Stock, only 3 left!

0

22

Cub Cadet 751-10374

Cap, Fuel Kohler Engine

$20.99

$

In Stock, only 3 left!

0

22

Cub Cadet 751-10373

Cap, Fuel Diesel Engine

$22.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 751-10375

Ftg, Fuel, Vent
(Superseded to 951-10375)

$77.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-3174

Ftg, Fuel, Pickup Diesel Engine

$19.99

$

In Stock, only 1 left!

0

25

Cub Cadet 732-04357

Wire, tank, fuel

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0397

Nut, Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 751-3130-80

Fuel Line, 5/16 Id X .56 Kohler Engine

Note: cut as required

$42.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-0535-68

Hose, Fuel Line Diesel Engine
(Superseded to 751-10349-72)

Note: cut as required

$60.99

$

In Stock, only 1 left!

0

29

Cub Cadet 737-0296

Vent, 3/8 Dia. Diesel Engine

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 651-04159

Tank assembly, Fuel Kohler Engine
(Superseded to 951-04247B)

$270.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 651-04158

Tank assembly, Fuel Diesel Engine
(Superseded to 951-05244)

$430.99

$

In Stock, only 1 left!

0

31

Cub Cadet 722-3022

Tape, .625 Wide X.25 Thk
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-05622

Tray, Seat box

$113.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 13

0

34

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 725-3283

Wire, Ground, Engine

$22.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-3008

Screw, Hex, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0
