Volunteer 466 (37AC466D210) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Frame & Bumper Parts Diagram

4x4 Utility Vehicle

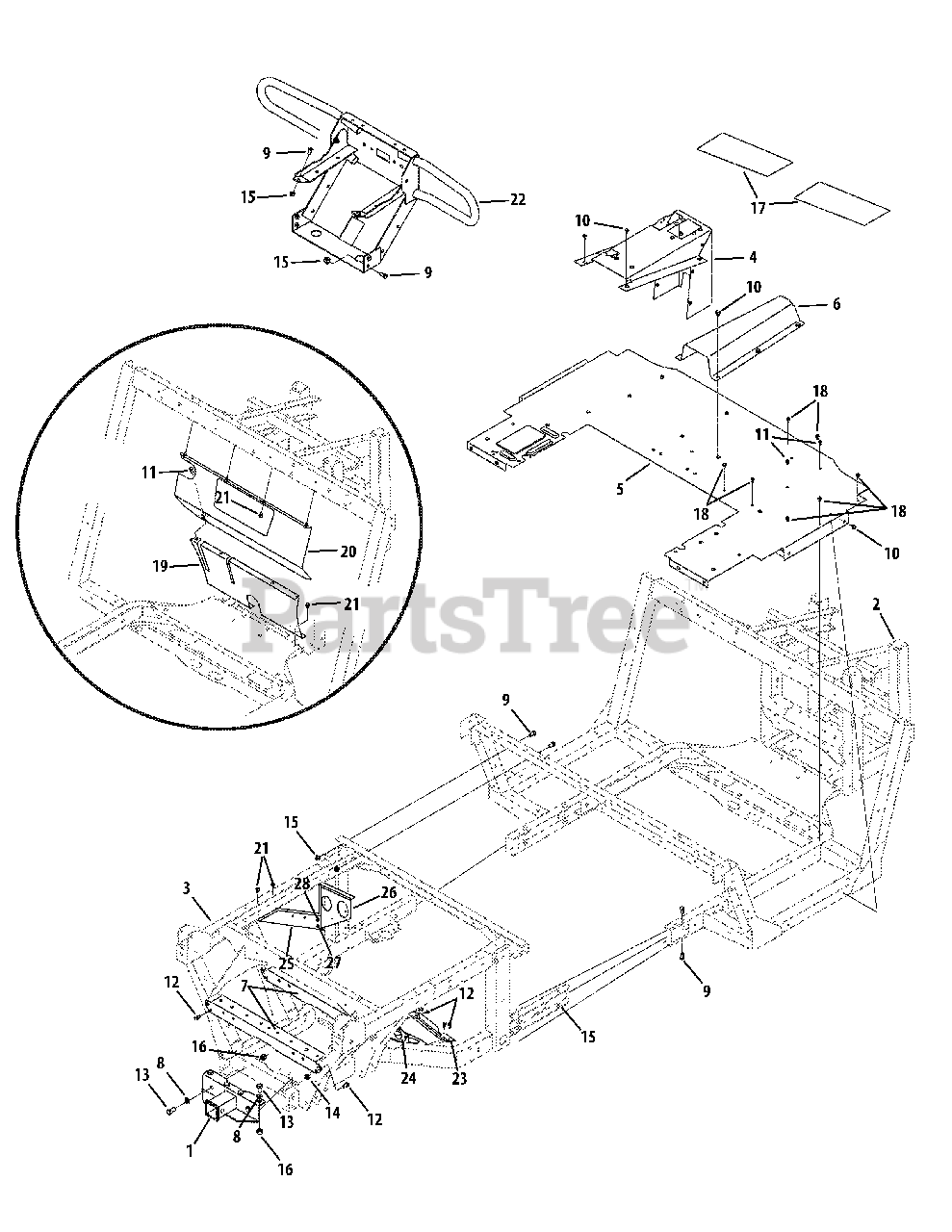

Frame & Bumper Parts Diagram

  • Title

1

Cub Cadet 607-04142A-0637

Hitch Assembly, receiver Rr

$225.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04182D

Frm Assembly, front, uv
(Superseded to 607-04182F-0637)

$1067.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04184B-0637

Frm Assembly, rear, uv
(Superseded to 607-04184E-0637)

$

$

Not available

4

Cub Cadet 707-04554A-0637

Plt, cnsol, 4x4

$

$

Not available

5

Cub Cadet 707-04563E

Plt, floor
(Superseded to 707-04563E-0637)

Variations

Cub Cadet 707-04563E-0637

Floor Plate, UV - POWDER BLACK (0637)

$269.99

$

Usually ships in 3-6 days

0

$269.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-04684A-0637

Cvr, shf, dr, front, 4x4

$109.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04770B-0637

Chan, support, rear
(Superseded to 707-04770C-0637)

$100.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0216

Screw, 3/8-16, .75, gr5, std

$4.49

$

In Stock, Qty 16

0

10

Cub Cadet 710-0607

Scr, tt, 5/16-18, 0.500, hxindwsh

$6.99

$

In Stock, Qty 12

0

11

Cub Cadet 710-1017

Scr, ab, 1/4-14, 0.625, trustrxi

$8.49

$

In Stock, Qty 9

0

12

Cub Cadet 710-3008

Screw, hhcs, 5/16-18 (4x2)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04043

Screw, Hx flg, 5/16-18 (4x4)

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3131

Screw, 1/2-13, 1.00, gr5, std

$5.49

$

In Stock, only 1 left!

0

14

Cub Cadet 712-04063

Nut, flglk, 5/16-18, grf, nylon

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Nut, flglk, 3/8-16, grf, nylon

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3083

Nut, hexlk, 1/2-13, grb, nylon

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 723-04021

Pad, abrasive, toe Plate

Note: 4x4 Units Only

$36.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-0465

Clip, pnl, ret,

$4.99

$

In Stock, Qty 16

0

19

Cub Cadet 707-04712B-0637

Pnl, Dash, Lower, 4x4
(Superseded to 707-04712D-0637)

$121.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 707-04711B-0637

Pnl, Dash, Upper

$121.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

Scr, tt, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 607-04131C-0637

Bmpr Assembly, frt.
(Superseded to 607-04131D-0637)

$525.99

$

Usually ships in 3-6 days

0

23

Cub Cadet N/A

Mt Assm, Sway Bar, RH

Note: 4x4 Units Only

$

$

Currently unavailable

23

Cub Cadet N/A

Mt Assm, Sway Bar, LH

Note: 4x4 Units Only - Not Shown

$

$

Currently unavailable

24

Cub Cadet 607-04330

Mt Assm, ISO, Trans/ Eng
(Superseded to 607-04330-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 607-04330-0637

MOUNT ASSY-ISO TRAN - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 607-04331

Brkt Assm, Air Filter Mnt
(Superseded to 607-04331A-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 607-04331-0637

USE 607-04331A-0637 BRACKET A - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 607-04333

Brkt Assm, Supt, Hose
(Superseded to 607-04333A-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 607-04333-0637

USE 607-04333A-0637 BRACKET A - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0751

Hhcs, 1/4-20 x .620

Note: 4x4 Units Only

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04064

Nut, Flglk, 1/4-20

Note: 4x4 Units Only

$3.99

$

In Stock, Qty 20+

0
