Volunteer 465 Tracker (37AC465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) Rear Left Fender & Cargo Bed Parts Diagram

4x4 Utility Vehicle

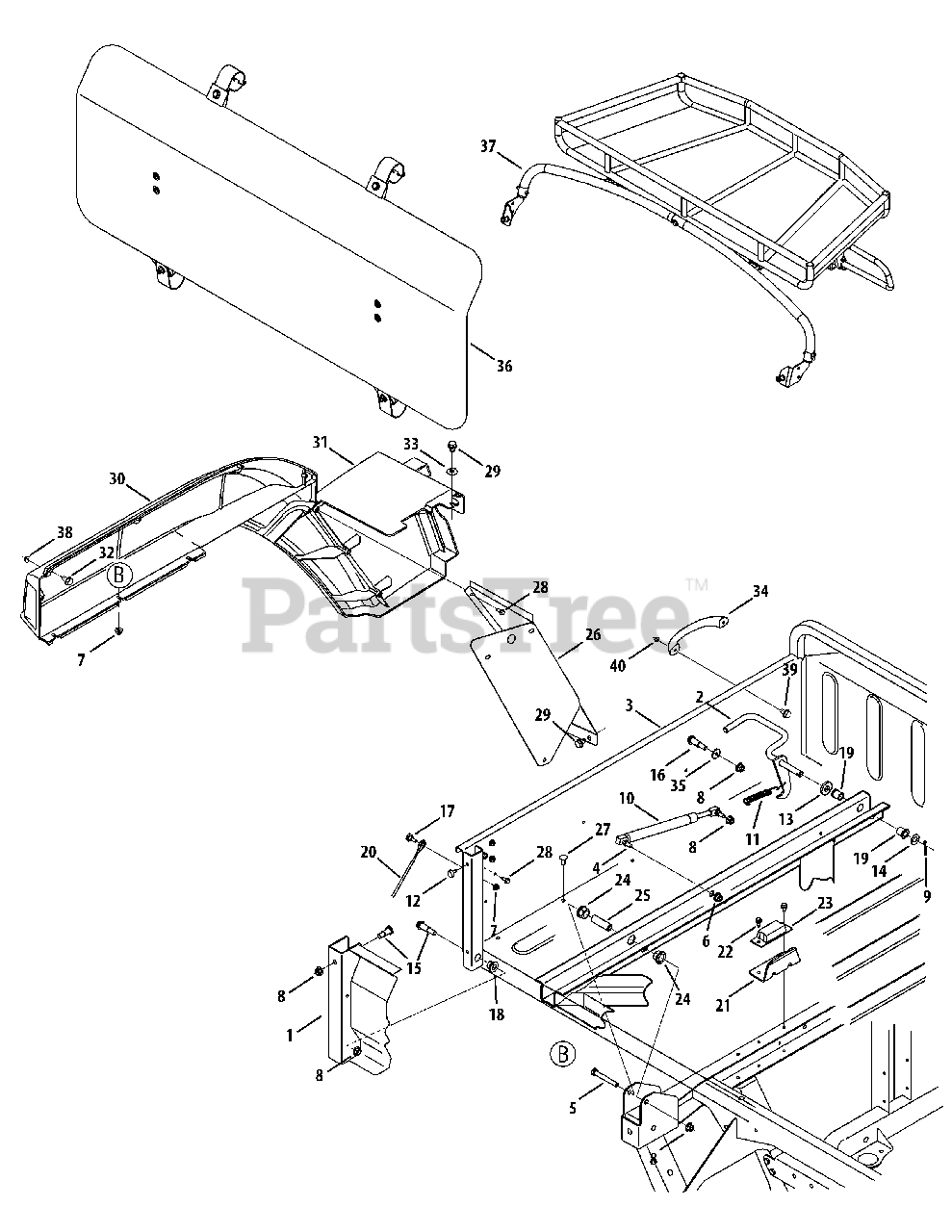

Rear Left Fender & Cargo Bed Parts Diagram

  • Title

1

Cub Cadet 607-04159B

Tgt Asm

Variations

Cub Cadet 607-04159B-0637

TAILGAIT ASM-UV - POWDER BLACK (0637)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159B-4021

TAILGAIT ASM-UV - CUB YELLOW 2 (4021)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159B-0638

TAILGAIT ASM-UV - MTD/TROY-BILT RED (0638)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159B-0716

TAILGAIT ASM-UV - CUB YELLOW-99 (0716)

$378.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04159B-4020

TAILGAIT ASM-UV - OLIVE GREEN (4020)

$378.99

$

Usually ships in 3-6 days

0

$343.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04180

Lvr Asm, bed, latch

$70.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04191A

Box Asm, bed
(Superseded to 607-04191C)

Variations

Cub Cadet 607-04191A-0637

USE 607-04191C-0637 BOX ASSY- - POWDER BLACK (0637)

$778.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04191A-0716

USE 607-04191C-4021 BOX ASSY- - CUB YELLOW-99 (0716)

$778.99

$

In Stock, only 1 left!

0

Cub Cadet 607-04191A-4021

USE 607-04191C-4021 BOX ASSY- - CUB YELLOW 2 (4021)

$778.99

$

In Stock, only 1 left!

0

$707.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04166

Stud, ball, 5/16-18

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3022

Screw, 3/8-16, 2.75, gr5, std

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 712-04063

Nut, flglk, 5/16-18, grf, nylon

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

Nut, flglk, 1/4-20, grf, nylon

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Nut, flglk, 3/8-16, grf, nylon

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0162

Pin, cot, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 732-04109A

Spr, gas, 6.91 Stroke
(Superseded to 932-04109B)

$87.99

$

In Stock, only 4 left!

0

10

Cub Cadet 714-04054

PIN-CLIP RETAINER

Note: Not shown

$

$

Not available

11

Cub Cadet 732-0428A

Spr, extn, .50 Od X 4.35 Lg

$

$

Not available

12

Cub Cadet 735-0271A

Bmpr, .62 Dia. x .3

$8.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-04019

Wash, flat, .531 X 1.25 X .181

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0572

Wash, flat, .510 X 1.00 X .060
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0430

Scr, shldr, .50 X .685, 3/8-16

$11.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0966A

Scr, shldr, .50x.925, 3/8-16

$4.99

$

In Stock, Qty 19

0

17

Cub Cadet 738-1023

Scr, shldr, .375x.280, 1/4-20
(Superseded to 738-1023A)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 741-0324

Brg, flg, hex, .506 Id X .590 Lg
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

19

Cub Cadet 741-0673

Brg, flg, .503 X .689 X .792
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

20

Cub Cadet 746-04245

Cbl, lanyard

$20.99

$

In Stock, Qty 6

0

21

Cub Cadet 707-04786

Brkt, Bed Guide

Variations

Cub Cadet 707-04786-0637

BRACKET:BED GUIDE - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-1652

Scr, tt, 1/4-20x.625, hxindwsh

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 731-04016

Bmpr, suspn, extn

$45.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 748-0229

Brg, hex Flng .629 Id
(Superseded to 948-0229)

$

$

Not available

25

Cub Cadet 750-04634

Spcr, .390 Id X.625 Od X2.03 Lg

$43.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 707-04728B

Brkt, Lh, Shld
(Superseded to 707-04728D-0637)

Variations

Cub Cadet 707-04728B-0637

Shield Bracket, LH - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0134

Scr, Crg, 1/4-20, .62, Gr2

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-04261

Scr, #12-16, .50, Hxindwsh

$6.49

$

In Stock, only 3 left!

0

29

Cub Cadet 710-0607

Scr, Tt, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

30

Cub Cadet 731-05280A

Fdr, Lh Rr
(Superseded to 759-05060)

$455.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-05450A

Fdr, Lh Rr, Camo

$

$

Not available

31

Cub Cadet 731-05282

Fdr, Lwr Lh Rr
(Superseded to 931-05282B)

$100.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-05452

Fdr, Lwr Lh Rr, Camo

$

$

Not available

32

Cub Cadet 710-0286

Screw, Mach., 1/4-20 x .500

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 731-06155

Handle

$31.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

36

Head Rest

Note: If Equipped 39A-207-100

$

$

Not available

37

Hood Rack

Note: If Equipped 39A-206-100

$

$

Not available

38

Cub Cadet 712-0264

Nut, Acorn, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0924

Screw, Mach., 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0324

Nut, Hexlk., 1/4-20

$3.99

$

In Stock, Qty 16

0
