Volunteer 465 Tracker (37AC465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) Engine Controls Parts Diagram

4x4 Utility Vehicle

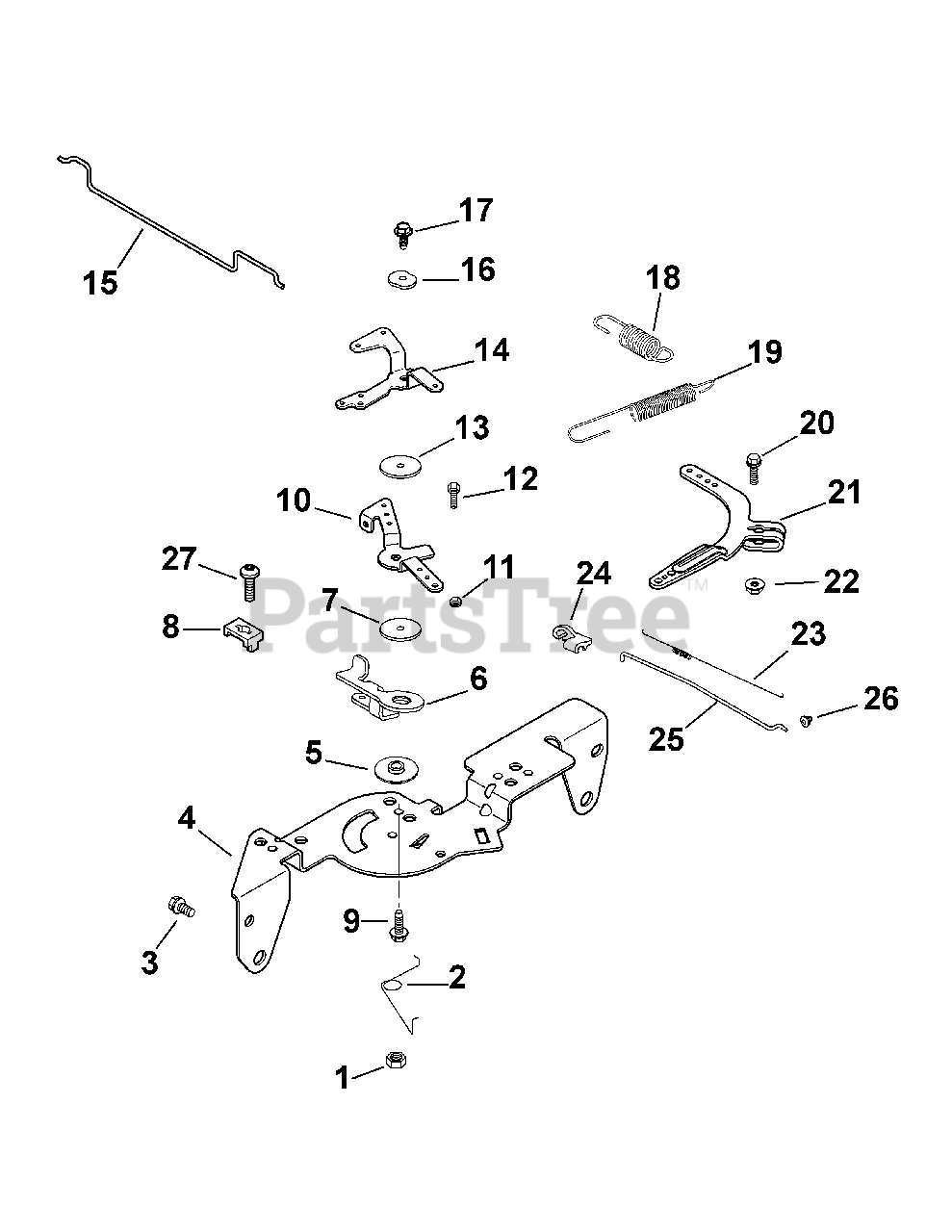

Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-M-547050-S

Nut, hex. lock M5x0.8

$2.49

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-089-03

Spring, choke return

$

$

Not available

3

Cub Cadet KH-M-645016-S

Screw, hex flange M6x1.0x16

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-24-126-161-S

Bracket, control
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-112-27

Spacer, control assembly

$

$

Currently unavailable

6

Cub Cadet KH-24-090-47-S

Lever, throttle actuator

$2.99

$

In Stock, Qty 11

0

7

Cub Cadet KH-24-468-20-S

Washer, flat, 5mm

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-237-01

Clamp, cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-M-545016-S

Screw, hex. flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-090-48-S

Lever, throttle control

$

$

Not available

11

$2.49

$

In Stock, only 4 left!

0

12

Cub Cadet KH-M-401030

Screw, cap M4x0.7x30

$

$

Not available

13

KH-24-468-01-S

Washer, flat, 5.5 mm

$

$

Not available

14

Cub Cadet KH-24-090-05

Lever, choke

$

$

Not available

15

Cub Cadet KH-24-079-21-S

Linkage, choke

$

$

Not available

16

Cub Cadet KH-41-468-03

Washer, spring 1/4"

$

$

Not available

17

Cub Cadet KH-M-545020-S

Screw, hex. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-089-55-S

Spring, governor

$2.49

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-089-45-S

Spring, governor

$8.99

$

In Stock, Qty 10

0

20

Cub Cadet KH-24-211-03-S

Bolt, rd hd sq neck, M6x1.0x25

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-090-33-S

Lever, governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-M-641060-S

Nut, flange M6x1.0

$4.49

$

In Stock, Qty 8

0

23

KH-24-089-01-S

Spring, linkage

$

$

Not available

24

Cub Cadet KH-25-158-11

Bushing, linkage retaining

$

$

Not available

25

Cub Cadet KH-24-079-01

Linkage, throttle

$

$

Not available

26

Cub Cadet KH-25-158-08

Bushing, throttle linkage

$5.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-24-086-43-S

Scr, lbd thd frm, M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0
