Volunteer 465 EFI (37BM465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H013H - 1H294H) Kohler EFI Engine Transmission Accessories Parts Diagram

4x4 Utility Vehicle

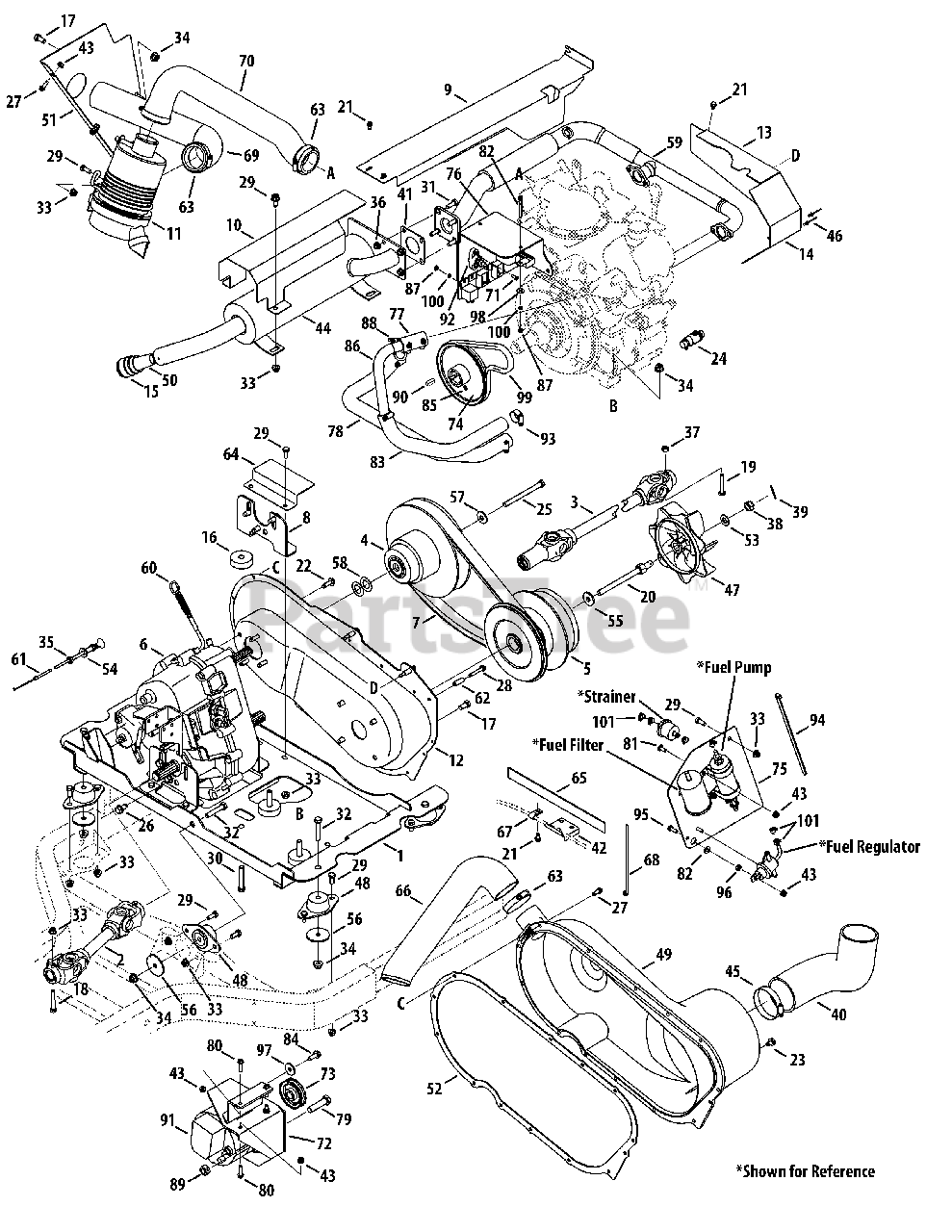

Kohler EFI Engine Transmission Accessories Parts Diagram

  • Title

1

Cub Cadet 607-04177D-0637

Tray Assembly, Engine, Kohler

$537.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04306

Shaft Assembly, Rr/prop

$800.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04314

Shaft Assembly, Frt/prop, Hilliard

$672.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-05124

Clutch Assembly, Cvt, Driven
(Superseded to 918-07077)

$698.99

$

In Stock, only 1 left!

0

5

Cub Cadet 918-04585

Clutch Assembly, Cvt, Driver, Cvr

$1226.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 959-05023

Case Assembly, Transfer

$1555.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 754-04125B

Belt, Cvt, 4x4

$114.99

$

In Stock, only 1 left!

0

8

Cub Cadet 707-04724-0637

Bracket, Trans, Mount

$44.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04887C

Cover, Heat, Shield

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 707-04891

Exhaust, Shield, Heat

$78.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-04156

Filter Assembly, Air Cleaner

$168.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751-10376

Filter, Air

Note: Not shown, For 951-04156 filter assembly

$75.99

$

In Stock, only 4 left!

0

11

Cub Cadet 751-3197

Valve, Dust

Note: Not shown, For 951-04156 filter assembly

$37.99

$

In Stock, only 4 left!

0

12

Cub Cadet 707-04943A-0637

Cover, Back, Kohler

$75.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 707-04972A

Cover, Eng, Kohler

$45.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 707-04979

Cover, Engine, Rr, Kohler

$51.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-10690

Clamp

$25.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 750-04619

Spacer, Engine, Kohl

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0216

Hex Head Screw, 3/8-16, .75

$4.49

$

In Stock, Qty 16

0

18

Cub Cadet 710-3103

Hex Head Screw, 5/16-18, 2.00

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-04653

Hex Head Screw, 5/16-18, 1.875

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04657

Hex Head Screw, 7/16-20, 5.00

$30.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

Screw, Tt, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0650

Screw, Tt, 5/16-18, .875

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0603

Screw, B, 5/16-12, 0.500

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-10517A

Drain, Oil

$24.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-1257

Hex Head Screw, 3/8-24, 2.50

$7.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-0623

Screw, Tt, 3/8-16, 0.750

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 710-0642

Screw, Tt, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-1325

Screw, Tt, 1/4-20, 1.625

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-3011

Hex Head Screw, 3/8-16, 2.25

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3038

Hex Head Screw, 5/16-18, .875

$4.99

$

In Stock, only 3 left!

0

32

Cub Cadet 710-3144

Hex Head Screw, 3/8-16, 2.00

$4.49

$

In Stock, Qty 7

0

33

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0711

Nut, Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 912-3009

Nut, Hex Lock, 5/16-18, Ctrlk
(Superseded to 712-3009)

$

$

Not available

38

Cub Cadet 912-3012

Nut, Hex, 1/2-20, Gr5, Slot
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

40

Cub Cadet 751-10510

Tube, Cvt, Intake

$106.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 721-04167

Gasket, Engine
(Superseded to 721P04167)

$16.99

$

In Stock, only 1 left!

0

42

Cub Cadet 707-05304-0637

Bracket, Cable Shield

$24.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 751-10152B

Muffler

$1079.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 726-04068

Clamp, Hose, Adj.

$23.99

$

In Stock, only 1 left!

0

46

Cub Cadet 728-0117

Rivet, Pop, .125 Od, #42

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 731-04275

Impeller, Blower

$35.99

$

In Stock, Qty 5

0

48

Cub Cadet 731-04667

Compression Mount, Eng, Head

$112.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 731-06748

Cover, Cvt

$65.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 751-10689

Spark Arrester Screen

$28.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 707-05257A-0637

Plate, Baffle

$41.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 721-04292

Seal, CVT, Cvr

$

$

Not available

53

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 9

0

56

Cub Cadet 736-04018

Washer, Flat, .38 x 2.00 x .12

$7.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

58

Cub Cadet 736-0566

Washer, Flat, .793 x 1.368 x .025

$6.99

$

In Stock, Qty 13

0

59

Cub Cadet 751-10680A

Pipe, Exhaust, Kohl, EFI

$317.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 946-04851

Cable, Throttle Control, Kohler

$100.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 946-04292

Cable, Choke Control, Kohler

$55.99

$

In Stock, only 1 left!

0

62

Cub Cadet 750-04184

Spacer, .260 Id x .375od x 1.0l

$12.99

$

In Stock, only 1 left!

0

63

Cub Cadet 726-0476

Clamp, Hose

$12.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 707-05217-0637

Shield, Harness

$18.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751-11232

Heat Shield Sleeve
(Superseded to 751-11232A)

$10.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751-10997

Hose, CVT, Exhaust

$54.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 726-04056

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

69

Cub Cadet 751-10995

Hose, Air, Inlet

$49.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 751-10996

Hose, Air, Intake

$55.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

72

Cub Cadet 607-04227-0637

Support, Asm, Alternator, Kohler

$112.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 756-04097

Pulley, 2.65 OD x 3L

$108.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 756-04357

Pulley, 6.00 OD x 1.125

$102.99

$

In Stock, only 1 left!

0

75

Cub Cadet 707-05161-0637

Bracket, Fuel System, Kohler EFI

$63.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 707-05167-0637

Bracket, Electrical, Kohler EFI

$56.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 751-10678

Hose, Rdtr, Top Rear

$98.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 751-10679

Hose, Rdtr, Lower Rear

$32.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 710-0489

Hex Head Screw, 1/2-13 x 2.00

$7.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-0788

Screw, tt, 1/4-20 x 1.00

$7.49

$

In Stock, only 4 left!

0

81

Cub Cadet 710-0946

Screw, Machine, 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 936-0463

Washer, Flat, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

83

Cub Cadet 751-10258A

Hose, Radiator

$38.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-1238

Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 1903631

Screw, 1/4-20 x 3/8

$3.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 750-04989

Tube, Rdtr

$71.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

88

Cub Cadet 737-04232

Fitting, Petcock

$21.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 8

0

90

Cub Cadet 714-0118

Square key, 1/4 x 1.50lg

$6.99

$

In Stock, only 4 left!

0

91

Cub Cadet 725-04806

Alternator, Aux, 65 Amp

$1039.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 725-04661

Electric Power Distribution Post

$39.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 726-04114

Clamp, Hose, Adj

$8.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 726-04098

Tie, Cable

$3.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 710-0924

Screw, Machine, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

96

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

97

Cub Cadet 936-0231

Washer, Flat, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

98

Cub Cadet 936-0400

Washer, Flat, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

99

Cub Cadet 954-04014

Belt, V-Type

$28.99

$

In Stock, only 4 left!

0

100

Cub Cadet 936-0722

Washer, Lock
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 18

0
