Volunteer 465 EFI (37BM465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H013H - 1H294H) Kohler EFI Engine - Fuel System Parts Diagram

4x4 Utility Vehicle

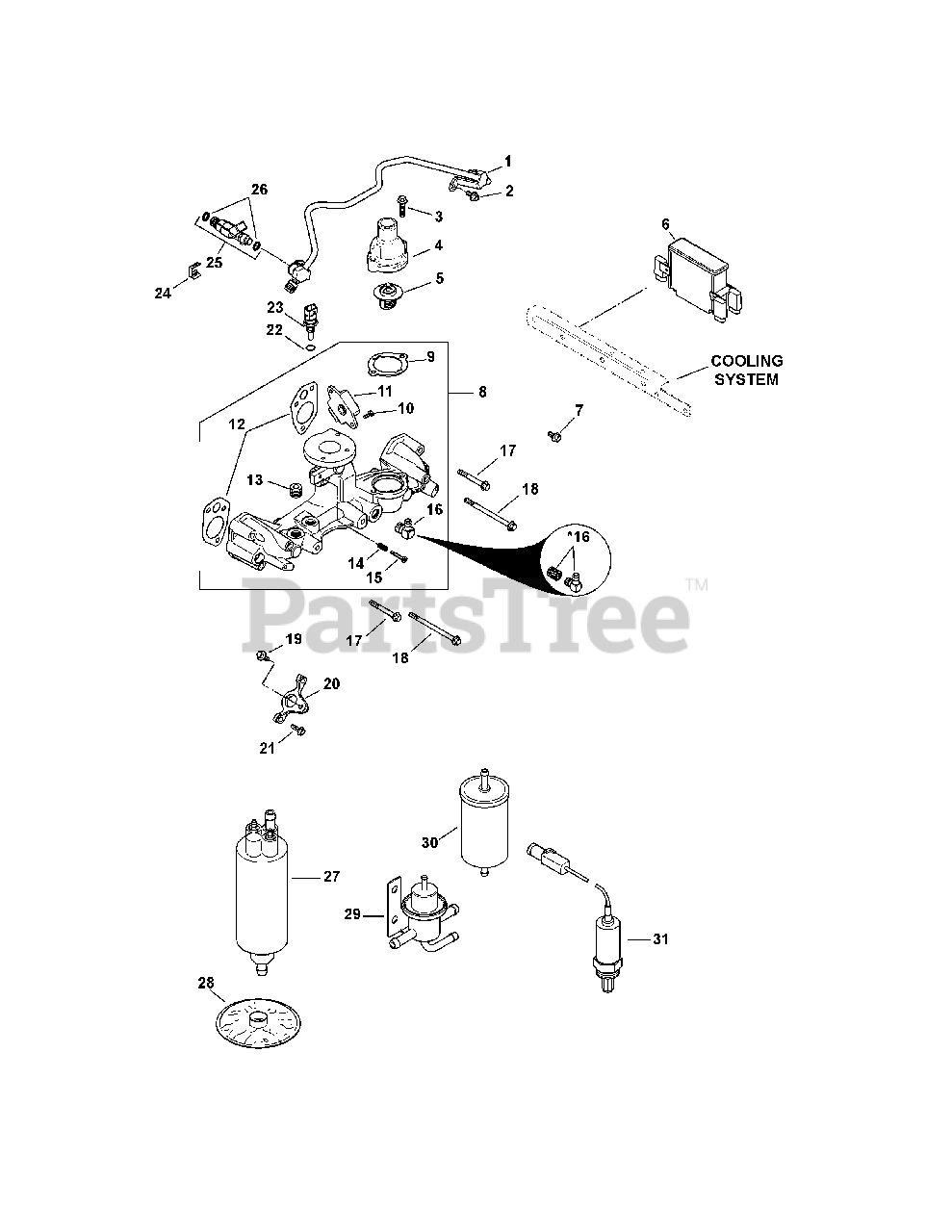

Kohler EFI Engine - Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-66-399-02-S

Rail, Fuel

$157.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-M-651012-S

Screw, Flg, M6 x 1.0 x 12

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-086-124-S

Screw, Flg, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-66-081-01-S

Housing, Thermostat

$31.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-66-453-02-S

Kit, Thermostat

$54.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-66-584-12-S

Module, Engine Mngmnt. (ECU)

$

$

Not available

7

Cub Cadet KH-M-650012-S

Screw, Flg, M6 x 1.0 x 12

$

$

Currently unavailable

8

Cub Cadet KH-66-164-22-S

Kit, EFI Intake Mnfld (Incl 9-15)

$621.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-66-041-01-S

Gasket, Thermostat

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-M-442012-S

Screw, Phl Pan, M4x0.7x12

$4.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-418-06-S

Kit, Throttle Position Sensor

$

$

Not available

12

Cub Cadet KH-66-041-05-S

Gasket, Intake Manifold

$2.49

$

In Stock, only 3 left!

0

13

Cub Cadet KH-25-139-62-S

Plug, Pipe Ctsk, 3/8"

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-089-09-S

Spring, Speed Control (Short)

$3.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-M-442025-S

Screw, Phl Pan M4 x 0.7 x 25

$2.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-66-155-02-S

Connector, Hose

$12.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-M-651050-S

Screw, Flg M6 x 1.0 x 50

$2.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-M-651090-S

Screw, Flg M6 x 1.0 x 90

$2.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-M-651016

Screw, Flg Thd Frm M6x1.0x16

$

$

Not available

20

Cub Cadet KH-24-126-131-S

Bracket, Speed Sensor

$10.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-M-851016-S

Screw, Flg Thd Frm M5x0.8x16

$6.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-12-153-04

O-Ring

$

$

Not available

23

Cub Cadet KH-24-418-12-S

Sensor, Temperature

$64.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-24-154-05-S

Clip, Fuel Injector

$3.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-331-02-S

Injector, Fuel (Includes 26)

$205.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-153-26-S

O-Ring

$3.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-24-393-52-S

Pump Ass’y, Fuel

$367.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-24-050-12-S

Filter, Fuel Strainer
(Superseded to KH-24-050-22-S)

$16.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-24-403-16-S

Regulator Ass’y, Fuel Pressure

$215.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-24-050-03-S

Filter, Fuel, EFI High Pressure

Note: (Do not substitute)

$75.99

$

In Stock, only 2 left!

0

31

Cub Cadet KH-24-418-05-S

Sensor, Oxygen

$191.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-07-S

Tie

Note: (Not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-66-176-23-S

Harness, EFI Wiring

Note: (Not shown)

$695.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-07-S

Tie

Note: (Not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-05-S

Tie

Note: (Not shown)

$2.49

$

In Stock, only 2 left!

0
