Volunteer 465 Diesel (37BK465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I029Z - 1H020Z) Yanmar Engine Camshaft & Driving Gear Parts Diagram

4x4 Utility Vehicle

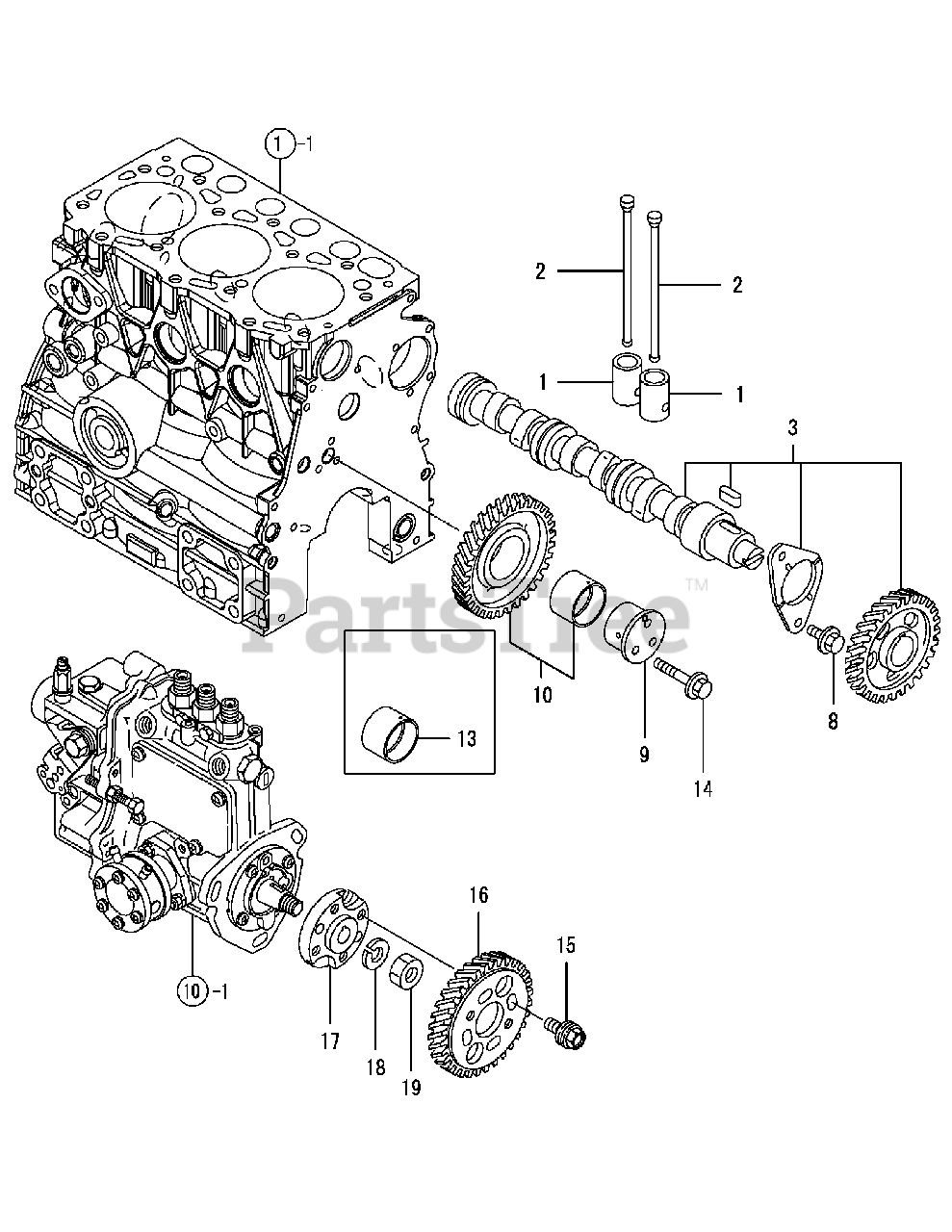

Yanmar Engine Camshaft & Driving Gear Parts Diagram

  • Title

1

Cub Cadet YA-119620-14200

Tappet

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet YA-119515-14400

Rod, Push

$

$

Not available

3

Cub Cadet YA-119515-14581

Camshaft Assembly

$467.99

$

Usually ships in 3-6 days

0

8

Cub Cadet YA-26106-060122

Bolt, M 6 x 12 Plated

$0.99

$

Usually ships in 3-6 days

0

9

Cub Cadet YA-119717-25050

Shaft, Idle Gear

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet YA-119717-25101

Gear Assembly, Idle

$

$

Currently unavailable

13

Cub Cadet YA-119717-25911

Bush, Idle Gear

$43.99

$

Usually ships in 3-6 days

0

14

Cub Cadet YA-26106-060352

Bolt, M 6 x 35 Plated

$0.99

$

Usually ships in 3-6 days

0

15

Cub Cadet YA-129150-25301

Bolt, FI-P

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet YA-119717-25930

Gear, Pump

$235.99

$

Usually ships in 3-6 days

0

17

Cub Cadet YA-119717-51150

Flange

$

$

Not available

18

Cub Cadet YA-22217-120000

Spring Washer 12

$0.99

$

Usually ships in 3-6 days

0

19

Cub Cadet YA-26716-120002

Nut 12

$1.49

$

Usually ships in 3-6 days

0

Note:1-1 Refers to CYLINDER BLOCK, Ref No 1

$

$

Not available

Note:10-1 Refers to FUEL INJECTION PUMP, Ref No 1

$

$

Not available
