Volunteer 465 (37BC465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I029Z - 1H020Z) Kohler CH640-3042 Engine Head & Valve & Breather Parts Diagram

4x4 Utility Vehicle

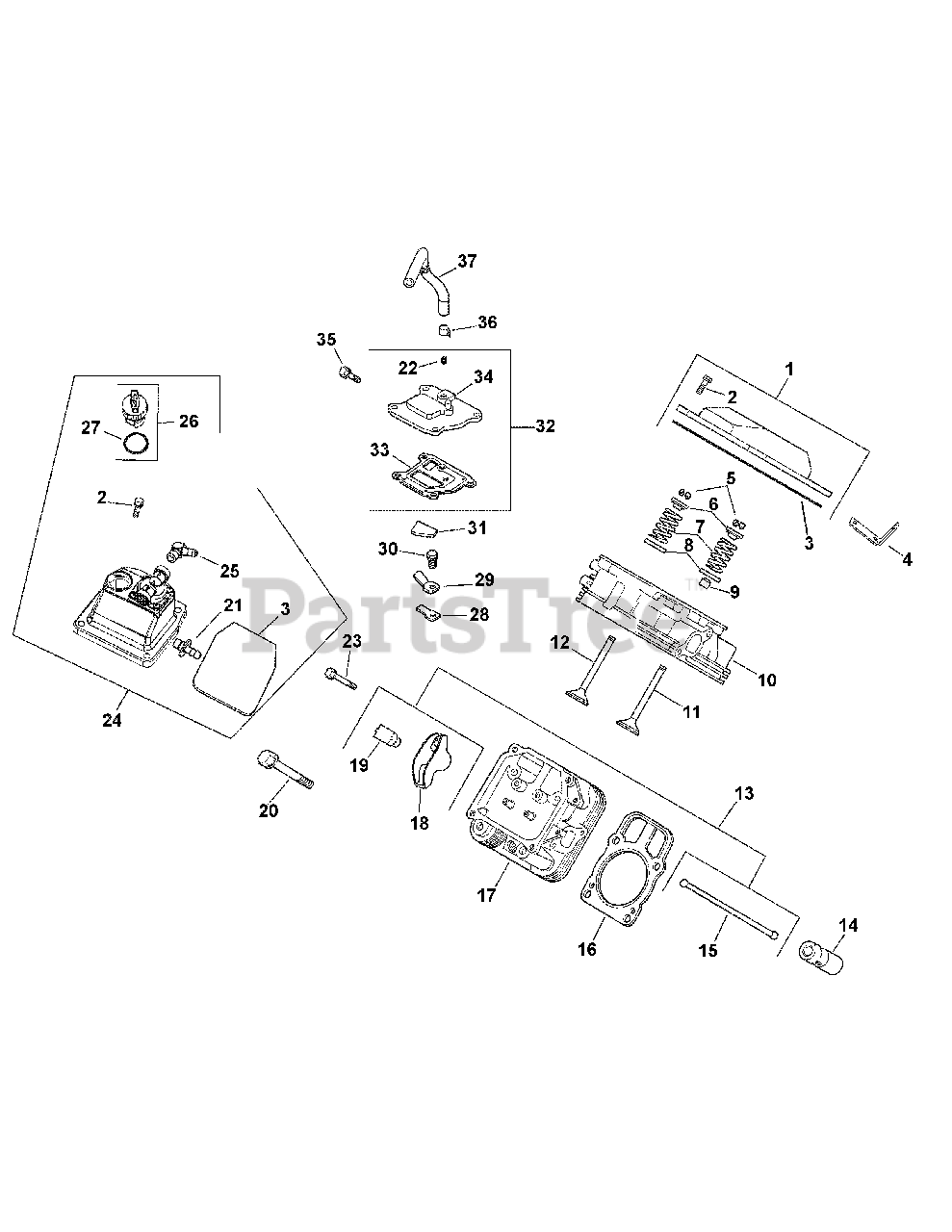

Kohler CH640-3042 Engine Head & Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-140-S

Kit, oil fill rocker cover (Incl. 2,3)

$36.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-651030-S

Screw, hex flange M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-30-S

O-Ring, valve cover

$11.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-25-445-01-S

Strap, lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, retainer

$5.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-12-173-01

Cap, valve spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet KH-24-089-02

Spring, valve

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, spring

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, valve stem
(Superseded to KH-25-032-14-S)

$11.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-318-107-S

Head assembly, #1 cylinder
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-017-01

Valve, intake (Std.)

$

$

Not available

11

Cub Cadet KH-24-017-02

Valve, intake (.25)

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, exhaust (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 7

0

12

Cub Cadet KH-24-016-02

Valve, exhaust (.25)

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, valve train (Incl. 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-07-S

Lifter, valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 14

0

15

Cub Cadet KH-24-411-05

Rod, push

$

$

Not available

16

Cub Cadet KH-24-841-01-S

Kit, cyl head gskt (Incl. 21,22)

$45.99

$

In Stock, only 4 left!

0

17

Cub Cadet KH-24-318-115-S

Head assembly, #2 cylinder
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-186-01

Arm, rocker

$

$

Not available

19

Cub Cadet KH-24-599-02-S

Pivot, rocker arm

$2.49

$

In Stock, Qty 12

0

20

Cub Cadet KH-12-086-16

Screw, Flg, M10x1.5x90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet KH-25-294-10-S

Fitting, 45

$6.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-25-139-60-S

Plug, ctsk pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-M-640034-S

Screw, hex flange M6x1.0x34

$2.49

$

In Stock, Qty 18

0

24

Cub Cadet KH-24-559-12-S

Kit, fuel pump (Includes 2, 3, 21, 25-27)

$162.99

$

In Stock, only 2 left!

0

25

Cub Cadet KH-25-294-11-S

Fitting, 90

$11.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-755-46

Cap assembly, oil fill (Incl. 27)

$

$

Not available

27

Cub Cadet KH-24-153-02

O-Ring, dipstick

$

$

Not available

28

Cub Cadet KH-24-402-03

Reed, breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-66-018-04-S

Retainer, reed

$4.99

$

In Stock, Qty 8

0

30

Cub Cadet KH-M-0545010

Screw, hex. flange M5x0.8x10

$

$

Not available

31

Cub Cadet KH-24-050-11-S

Filter, breather

$2.49

$

In Stock, only 2 left!

0

32

Cub Cadet KH-24-033-01

Kit, breathe (Includes 33,34)

$

$

Not available

33

Cub Cadet KH-24-041-67-S

Gasket, breather

$13.99

$

In Stock, Qty 14

0

34

Cub Cadet KH-24-096-86-S

Cover, breather
(Superseded to KH-24-033-01)

$

$

Not available

35

Cub Cadet KH-M-645020-S

Screw, hex flange M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

36

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet KH-24-326-89-S

Hose, breather

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-147-S

Kit, cylnd head hardware

Note: (Includes 5-9,11,12,15,18,19,23)

$96.99

$

In Stock, only 3 left!

0
