Volunteer 465 (37BC465D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1G202Z - 1G313Z) Kohler CH640-3053 Ignition Parts Diagram

4x4 Utility Vehicle

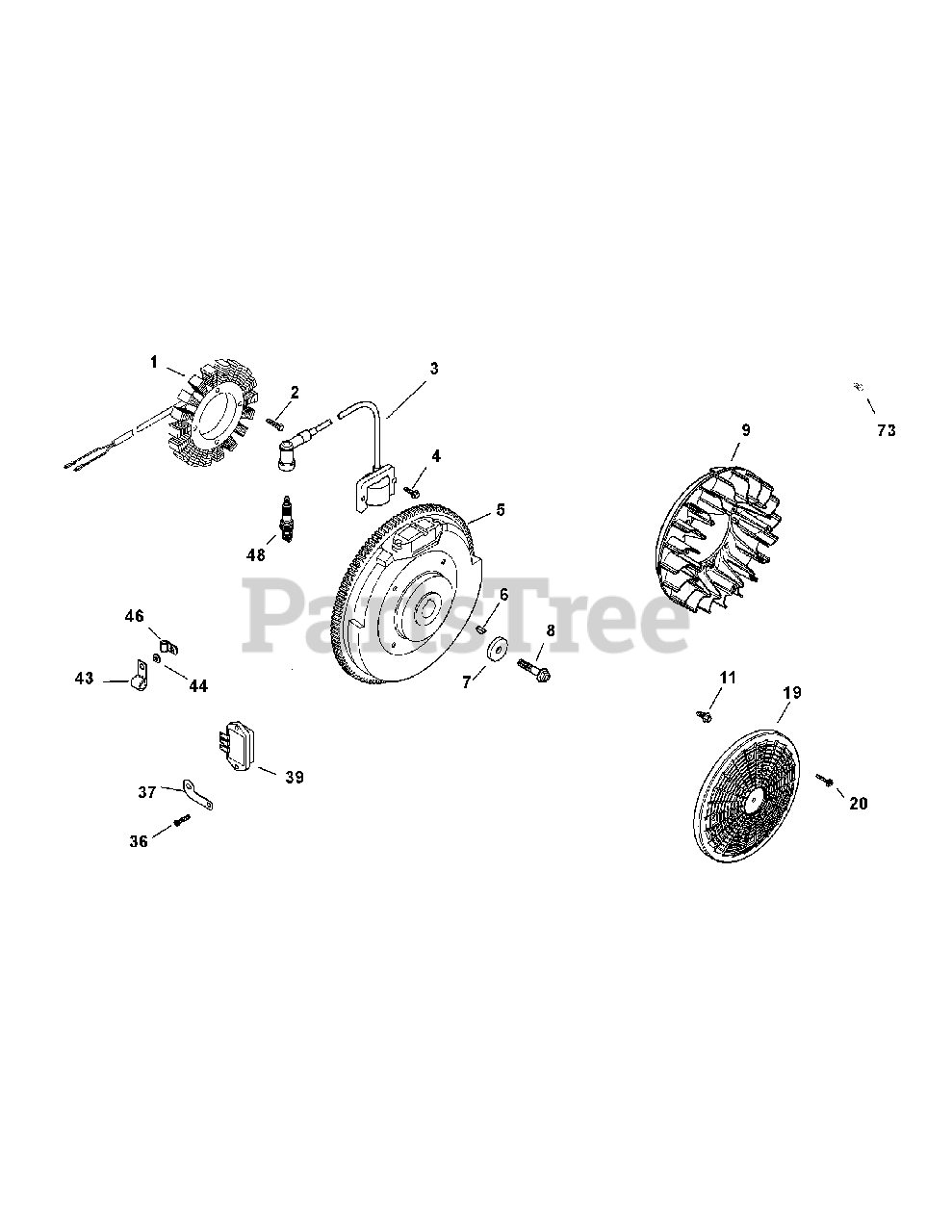

Kohler CH640-3053 Ignition Parts Diagram

  • Title
1

Cub Cadet KH-237878

Kit, 15 / 20 Amp Stator

$149.99

$

In Stock, Qty 15

0

2

Cub Cadet KH-M-548025-S

Screw, Thd Frm M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-45-S

Kit, Module Igntn (Cdi Fixed)
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

$

$

Not available

6

Cub Cadet KH-X-42-15

Key, 3/16" X 5/8"

$

$

Not available

7

Cub Cadet KH-12-468-03

Washer, Flat 13/32"

$

$

Not available

8

Cub Cadet KH-25-086-361-S

Screw, Flg M10X1.5X4

$3.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-157-16-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

19

Cub Cadet KH-24-162-35-S

Screen,Grass Low Prfle W/O Hole

$24.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-25-086-126-S

Screw, Sems Dog Point

$5.49

$

In Stock, only 3 left!

0

36

Cub Cadet KH-25-086-157-S

Screw, Hex Flange Hi-Lo

$2.49

$

In Stock, only 2 left!

0

37

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

43

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

44

Cub Cadet KH-X-25-63

Washer, Flat 1/4" (O.D. 1/2")

$

$

Not available

$7.49

$

Usually ships in 2-5 days

0

48

Cub Cadet KH-25-132-12-S

Spark Plug (Pro Series)

$20.99

$

Usually ships in 2-5 days

0

73

Cub Cadet KH-25-086-91-S

Screw, Wsh Hd Tap #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-171-S

Wiring Harness Assy

Note: (not shown)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-07-S

Tie Not Shown

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0
