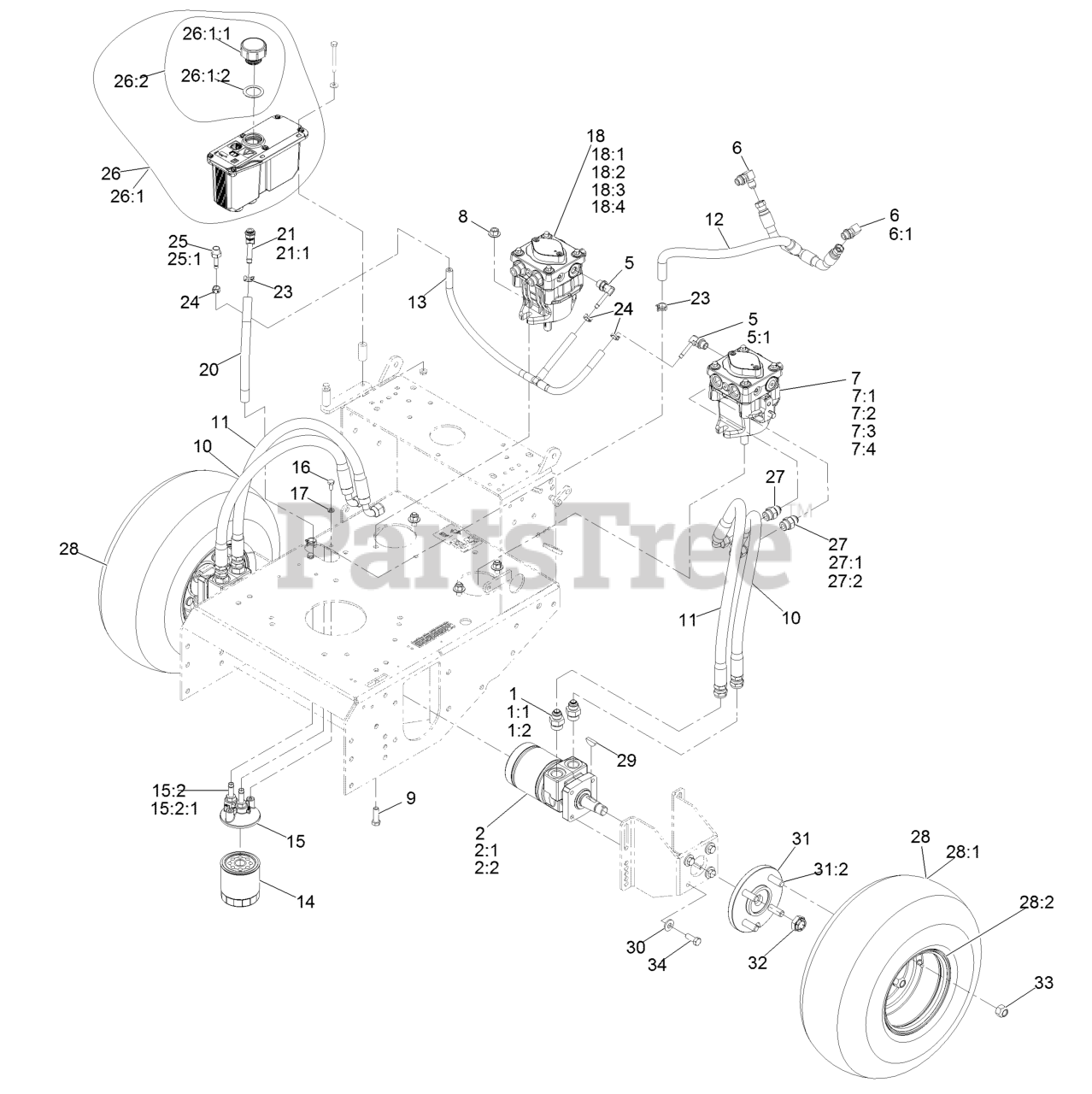

VHS481GKA48300 - Exmark 48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Hydraulic Assembly Parts Diagram

48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603991

Adapter-Straight

$21.99

$

In Stock, only 4 left!

0

1:1

Exmark 237-80

O-Ring

$6.99

$

In Stock, Qty 19

0

1:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD Motor ASM

$1206.99

$

In Stock, only 2 left!

0

2:1

Exmark 1-000119

Seal Kit

$201.99

$

In Stock, only 2 left!

0

2:2

Exmark 1-000138

Bearing And Seal Kit

$310.99

$

Usually ships in 3-6 days

0

5

Exmark 103-1799

Elbow-90 DEG

$29.99

$

In Stock, only 2 left!

0

5:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

6

Exmark 103-1802

Fitting-Elbow, 90 DEG

$23.99

$

In Stock, only 2 left!

0

6:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

7

Exmark 116-0942

LH HYD Pump ASM

$1165.99

$

In Stock, only 1 left!

0

7:1

Exmark 103-2664

Input Shaft Kit

$779.99

$

Usually ships in 3-6 days

0

7:2

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

7:3

Exmark 103-2666

Cylinder Block Kit

$546.99

$

Usually ships in 3-6 days

0

7:4

Exmark 105-6184

Seal Overhaul Kit

$84.99

$

In Stock, Qty 12

0

8

Exmark 32128-43

Nut-Whizlock 3/8-16

$1.49

$

In Stock, only 4 left!

0

9

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

10

Exmark 119-7827

HYD Hose ASM

$78.99

$

In Stock, only 2 left!

0

11

Exmark 119-7826

HYD Hose ASM

$88.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2123

Charge Hose ASM

$60.99

$

Usually ships in 3-6 days

0

13

Exmark 116-0918

Case Drain Hose ASM

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 1-523541

Element, Oil Filter (Winter)

$49.99

$

In Stock, only 1 left!

0

14

Exmark 109-4180

Element, Oil Filter

$49.99

$

In Stock, Qty 13

0

15

Exmark 103-2889

Filter Head ASM

$107.99

$

Usually ships in 3-6 days

0

15:2

Exmark 103-1912

Adapter-Straight

$22.99

$

Usually ships in 3-6 days

0

15:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

16

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-805004

Washer-Lock 1/4 Heavy

$1.49

$

In Stock, Qty 14

0

18

Exmark 116-0943

RH HYD Pump ASM

$1165.99

$

Usually ships in 3-6 days

0

18:1

Exmark 103-2664

Input Shaft Kit

$779.99

$

Usually ships in 3-6 days

0

18:2

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

18:3

Exmark 103-2666

Cylinder Block Kit

$546.99

$

Usually ships in 3-6 days

0

18:4

Exmark 105-6184

Seal Overhaul Kit

$84.99

$

In Stock, Qty 12

0

20

Exmark 103-2959

Hose-Charge

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 103-1807

Fitting-Barbed, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

23

Exmark 103-1988

Clamp-Hose 11/16

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-1716

Clamp-Hose 17/32

$1.49

$

In Stock, Qty 8

0

25

Exmark 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

25:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

26

Exmark 126-1248

ASM, HYD Reservoir
(Superseded to 116-2066)

$191.99

$

Usually ships in 3-6 days

0

26:1

Exmark 103-1948

Reservoir-HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

26:1:1

Cap-Reservoir, HYD

$

$

Not available

26:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

26:2

Exmark 115-4212

Decal-Warning

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 1-603990

Adapter-Straight

$18.99

$

In Stock, Qty 12

0

27:1

Exmark 1-603920

O-Ring-SAE #8

$3.99

$

In Stock, Qty 20+

0

27:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

28

Exmark 1-413473

Wheel And Tire ASM

$206.99

$

Usually ships in 3-6 days

0

28:1

Exmark 1-413474

Tire-Turfmaster

$134.99

$

Usually ships in 3-6 days

0

28:2

Exmark 1-603715

Rim-Wheel
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

29

Exmark 1-807019

Key-Woodruff 1 X 1/4

$19.99

$

In Stock, only 2 left!

0

30

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

31

Exmark 112-9049

Wheel Hub ASM

$188.99

$

In Stock, only 2 left!

0

31:2

Exmark 1-633926

Stud-Wheel

$4.99

$

In Stock, Qty 20+

0

32

Exmark 116-2839

Nut-Lock

$11.99

$

In Stock, only 3 left!

0

33

Exmark 242-50

Nut-Lug 1/2-20
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

34

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0
