VHS481GKA48300 - Exmark 48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

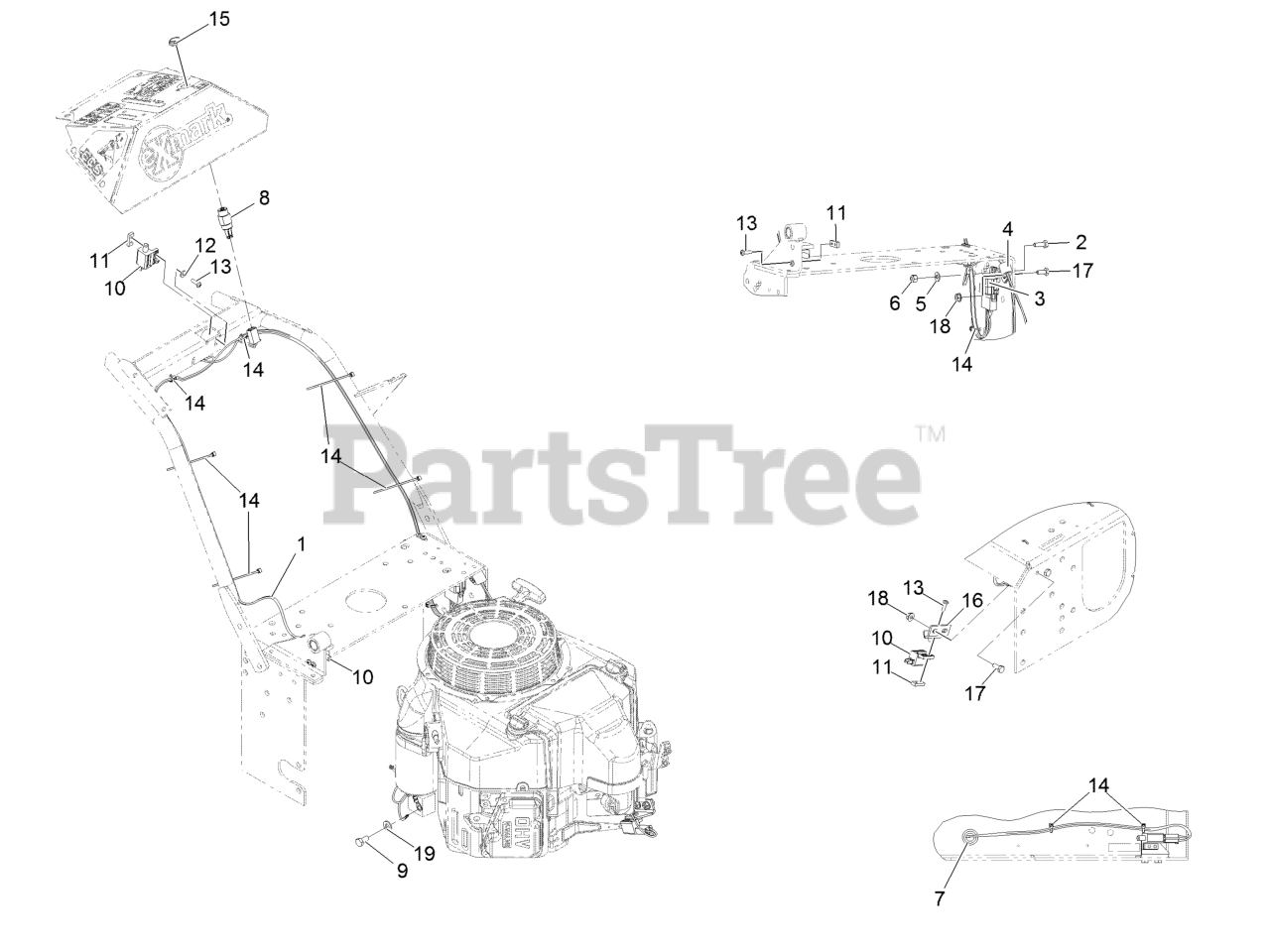

Electrical Assembly Parts Diagram

  • Title

1

Exmark 116-2611

Harness-Wiring

$134.99

$

Usually ships in 3-6 days

0

2

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-323430

Module-Interlock

$140.99

$

In Stock, only 4 left!

0

4

Exmark 1-603727

Clip-Loom

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

6

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

7

Exmark 1-543296

Grommet

$8.49

$

In Stock, only 4 left!

0

8

Exmark 1-403121

Switch & Key (Includes Nut & Washer)

$22.99

$

In Stock, Qty 5

0

9

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, only 4 left!

0

10

Exmark 1-513051

Switch-N.O.

$19.99

$

In Stock, Qty 20+

0

11

Exmark 1-633181

Plate-Tapped

$6.49

$

In Stock, Qty 12

0

12

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 103-0498

Nut-Ignition

$3.49

$

In Stock, Qty 20+

0

16

Exmark 1-323213

Bracket-Switch, Blade

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

18

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

19

Exmark 33094-00

Washer

$0.99

$

In Stock, only 2 left!

0
