VHS481GKA48300 - Exmark 48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

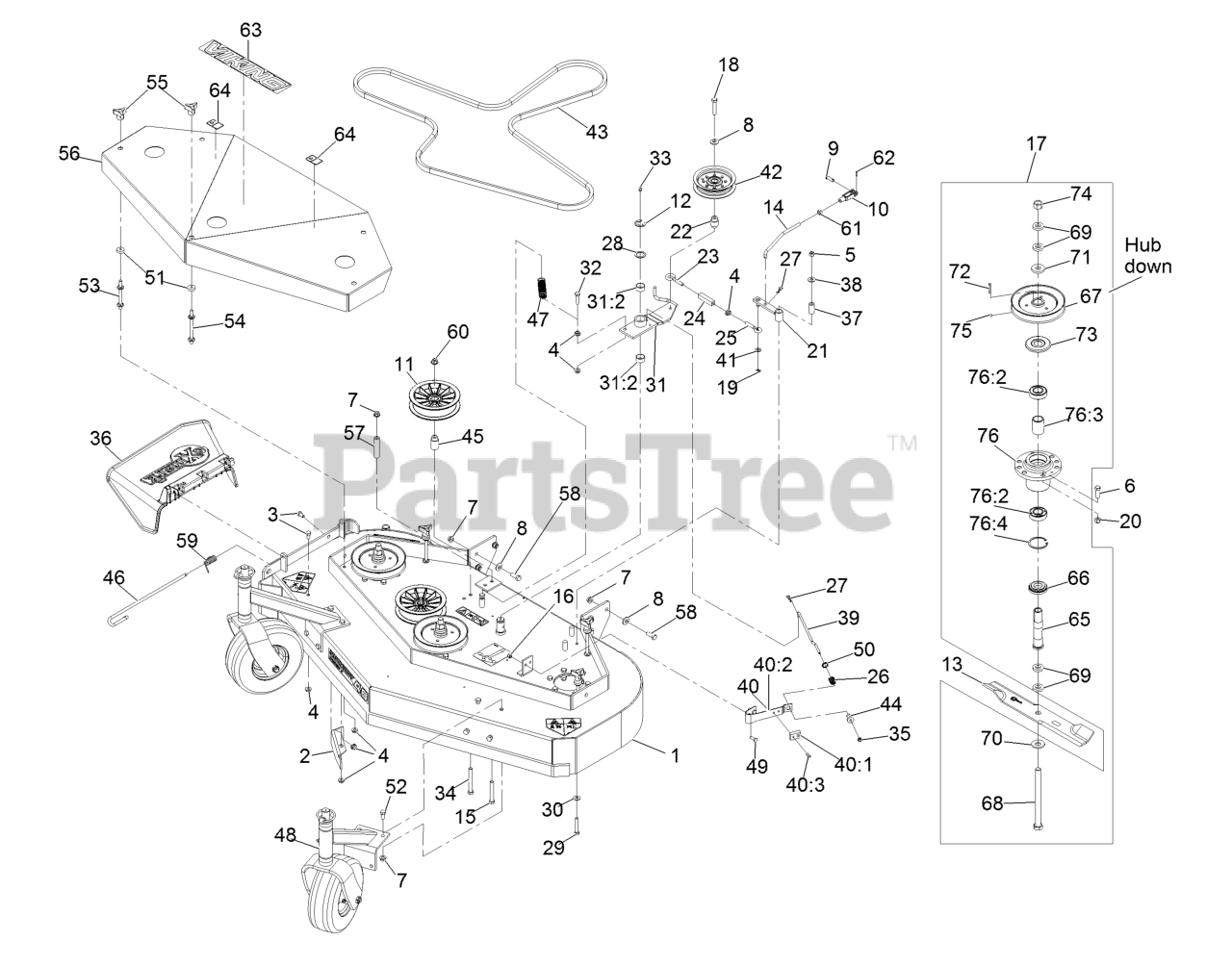

Deck Assembly Parts Diagram

  • Title

1

Exmark 1-404257

Deck W/Decals And Dogleg

$2630.99

$

Usually ships in 3-6 days

0

2

Exmark 116-1729-01

Baffle-Dogleg

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 13

0

4

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

6

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

9

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

10

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, only 1 left!

0

11

Exmark 109-0977

Pulley,Idler 5"

$72.99

$

In Stock, Qty 8

0

12

Exmark 32151-103

E-Ring

$3.49

$

In Stock, Qty 7

0

13

Exmark 103-1577

Blade, 16.25 Solid
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

13

Exmark 103-6581

Blade, 16.25 Mulching
(Superseded to 103-6581-S)

$34.99

$

In Stock, only 4 left!

0

13

Exmark 103-6583

Blade, 16.25 Notched
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

13

Exmark 103-6738

Blade,Low Lift 16.25
(Superseded to 103-6738-S)

$31.99

$

In Stock, Qty 7

0

13

Exmark 116-5178

Blade-Extreme 2, 16.25"
(Superseded to 116-5178-S)

$36.99

$

In Stock, Qty 9

0

14

Exmark 1-323174

Arm-Linkage, Assist

$29.99

$

Usually ships in 3-6 days

0

15

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, Qty 5

0

16

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

17

Exmark 103-8387

Asm, Cutter Housing Complete

$550.99

$

Usually ships in 3-6 days

0

18

Exmark 702809

Screw-HH

$5.49

$

In Stock, only 4 left!

0

19

Exmark 32120-35

E-Ring

$4.49

$

In Stock, Qty 6

0

20

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 16

0

21

Exmark 1-322235

Arm-Assist, 32/36

$54.99

$

Usually ships in 3-6 days

0

22

Exmark 1-303434

Bushing-Engagement

$14.99

$

In Stock, only 1 left!

0

23

Exmark 1-303348

Eyebolt-Thread, LH

$6.49

$

In Stock, Qty 9

0

24

Exmark 1-303236

Body-Turnbuckle

$22.99

$

In Stock, only 3 left!

0

25

Exmark 1-303238

Eyebolt-Thread, RH

$6.49

$

In Stock, Qty 7

0

26

Exmark 1-323747

Spring-Compression

$3.49

$

In Stock, Qty 10

0

27

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-303352

Washer-Spindle

$2.99

$

In Stock, only 3 left!

0

29

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 5

0

30

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

31

Exmark 103-3600

Idler Arm ASM

$133.99

$

Usually ships in 3-6 days

0

31:2

Exmark 1-323729

Sleeve-Bearing

$5.49

$

In Stock, only 2 left!

0

32

Exmark 116-3515

Screw,HH Special 5/16-18 X 1.25

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

34

Exmark 323-20

Screw-HH 3/8-16 X 3-1/4

$3.49

$

In Stock, only 2 left!

0

35

Exmark 3296-56

Nut-Nyloc 1/4-20 Thin

$2.49

$

In Stock, Qty 20+

0

36

Exmark 109-5151

Deflector-Discharge

$52.99

$

In Stock, Qty 11

0

37

Exmark 1-403179

Tube-Pivot

$18.99

$

In Stock, only 1 left!

0

38

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-323714

Rod-Brake

$28.99

$

Usually ships in 3-6 days

0

40

Exmark 1-324372

Pad And Spring ASM

$68.99

$

In Stock, only 1 left!

0

40:1

Exmark 1-323709

Pad-Brake

$28.99

$

In Stock, only 3 left!

0

40:2

Exmark 1-323710

Spring
(Superseded to 1-324372)

$68.99

$

In Stock, only 1 left!

0

40:3

Exmark 103-0138

Rivet 3/16 X 1/2

$1.49

$

In Stock, Qty 18

0

41

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

42

Exmark 116-3626

Pulley-Idler
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 17

0

43

Exmark 1-403174

Drive Belt (Main Deck) 48"
(Superseded to 1-403174-SL)

$80.99

$

In Stock, Qty 9

0

44

Exmark 1-323746

Spacer-Flanged

$1.49

$

In Stock, only 3 left!

0

45

Exmark 1-413113

Bushing-Idler

$5.99

$

In Stock, only 3 left!

0

46

Exmark 109-8854

Pin-Chute

$15.99

$

In Stock, only 1 left!

0

47

Exmark 1-323071

Spring-Extension

$15.99

$

In Stock, Qty 20+

0

48

Exmark 116-8245

ASM-Caster Mnt W/Weight

$732.99

$

Usually ships in 3-6 days

0

49

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-323748

Ring-Push On

$1.99

$

In Stock, Qty 7

0

51

Exmark 1-323417

Washer-Belt Shield

$3.49

$

In Stock, Qty 20+

0

52

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, only 1 left!

0

53

Exmark 1-303537

Stud-Shield, Belt (Short)

$6.49

$

In Stock, Qty 20+

0

54

Exmark 1-303536

Stud-Shield, Belt (Long)

$7.99

$

In Stock, Qty 20+

0

55

Exmark 1-323385

Knob-3 Prong

$5.49

$

In Stock, Qty 20+

0

56

Exmark 1-402100-01

Shield-Belt

$

$

Currently unavailable

56

Exmark 116-2703

ASM,Shield W/Decals 48 Viking

$498.99

$

Usually ships in 3-6 days

0

57

Exmark 1-403188

Spacer

$14.99

$

Usually ships in 3-6 days

0

58

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

59

Exmark 116-0962

Spring, Torsion

$8.49

$

In Stock, only 1 left!

0

60

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

61

Exmark 3219-2

Nut-Hex 5/16-24

$0.99

$

In Stock, Qty 11

0

62

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

63

Exmark 126-6891

Decal, Viking Hydro Model

$11.99

$

In Stock, only 1 left!

0

64

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

65

Exmark 1-323529

Tube-Spindle, Short

$88.99

$

In Stock, only 2 left!

0

66

Exmark 103-2535

Spacer-Guard Bottom

$12.99

$

In Stock, only 3 left!

0

67

Exmark 1-403183

Sheave

$69.99

$

In Stock, only 1 left!

0

68

Exmark 1-800861

Screw-Cap, HH

$19.99

$

In Stock, only 2 left!

0

69

Exmark 1-323539

Spacer-Blade Drive

$2.49

$

In Stock, Qty 20+

0

70

Exmark 1-513208

Washer-Spring Disc 5/8

$8.99

$

In Stock, only 2 left!

0

71

Exmark 1-323339

Washer

$5.49

$

Usually ships in 3-6 days

0

72

Exmark 1-807267

Key-Machine 1/4 X 3/16 X 1 1/4

$2.99

$

In Stock, only 2 left!

0

73

Exmark 103-1330

Guard-Bearing Top

$5.49

$

In Stock, only 2 left!

0

74

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

0

75

Exmark 3246-18

Setscrew-5/16-18 X 3/8

$5.49

$

Usually ships in 3-6 days

0

76

Cutter Housing ASM

$

$

Not available

76

Exmark 103-8280

Asm, Cutter Housing W/Bearings

$254.99

$

In Stock, only 4 left!

0

76:2

Exmark 103-2477

Bearing-Jackshaft

$59.99

$

In Stock, Qty 11

0

76:3

Exmark 103-2534

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

76:4

Exmark 32120-8

Ring-Retaining

$2.99

$

In Stock, Qty 16

0
