VHS481GKA48300 - Exmark 48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 315000000 - 315999999) (2015) Hydraulic Assembly Parts Diagram

48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

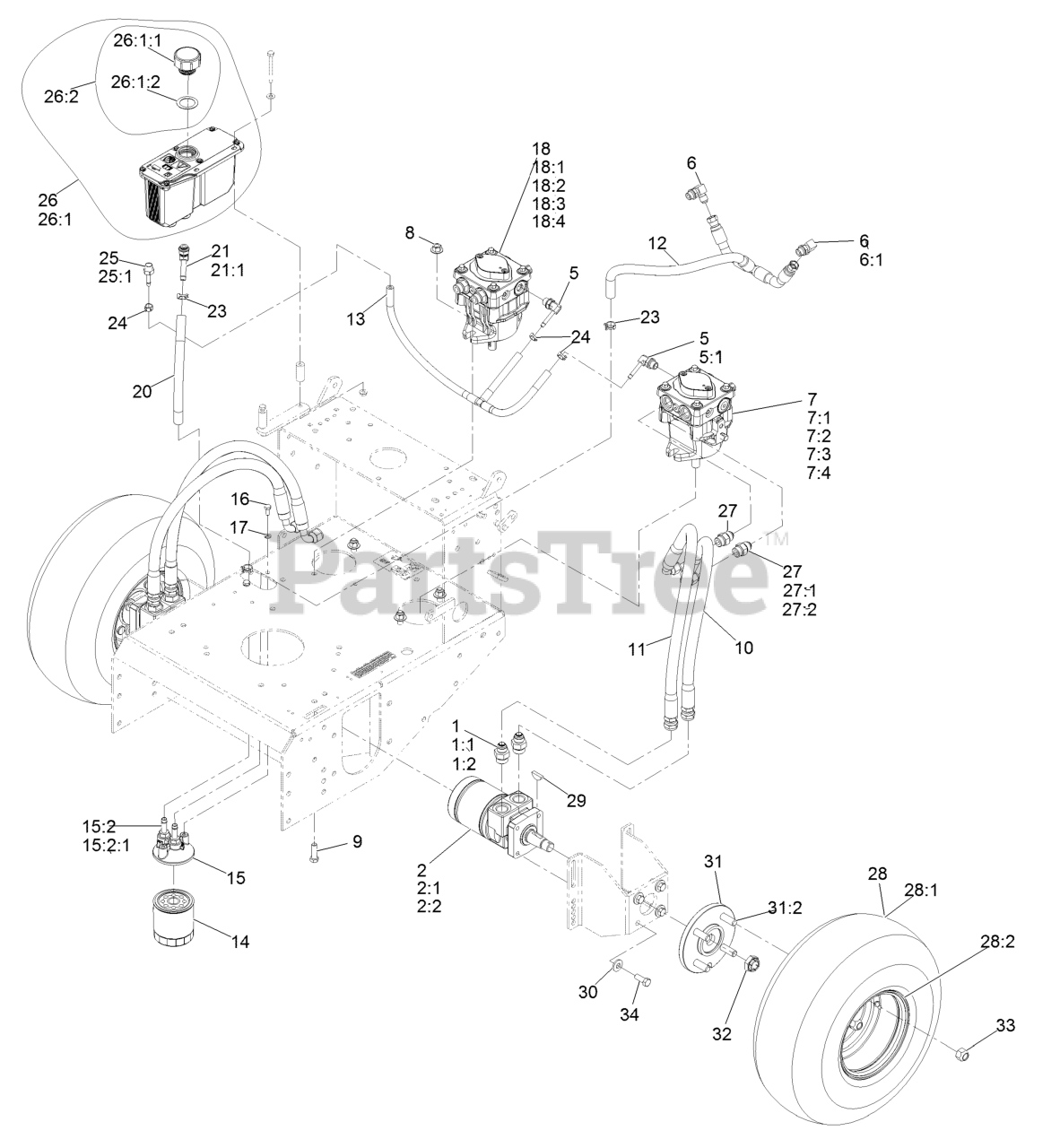

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

1:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

1:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

2:1

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

2:2

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

5

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

5:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

6:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 116-0942

LH HYD PUMP ASM

$1115.99

$

Usually ships in 3-6 days

0

7:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

7:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

7:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

7:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

8

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 119-7827

HYD HOSE ASM

$78.99

$

In Stock, only 1 left!

0

11

Exmark 119-7826

HYD HOSE ASM

$88.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2123

CHARGE HOSE ASM

$60.99

$

Usually ships in 3-6 days

0

13

Exmark 116-0918

CASE DRAIN HOSE ASM

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32degF (0degC).

$47.99

$

In Stock, only 1 left!

0

14

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 15

0

15

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

15:2

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

15:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

16

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

18

Exmark 116-0943

RH HYD PUMP ASM

$1115.99

$

Usually ships in 3-6 days

0

18:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

18:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

18:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

18:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

20

Exmark 103-2959

HOSE-CHARGE

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

25

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

25:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Exmark 126-1248

116-2066
(Superseded to 116-2066)

$191.99

$

Usually ships in 3-6 days

0

26:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

26:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, Qty 20+

0

26:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 8

0

26:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

27:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

27:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

28

Exmark 1-413473

WHEEL AND TIRE ASM

$206.99

$

Usually ships in 3-6 days

0

28:1

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

Usually ships in 3-6 days

0

28:2

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

29

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

30

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

31

Exmark 112-9049

WHEEL HUB ASM

$188.99

$

In Stock, only 1 left!

0

31:2

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

32

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

33

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

34

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
