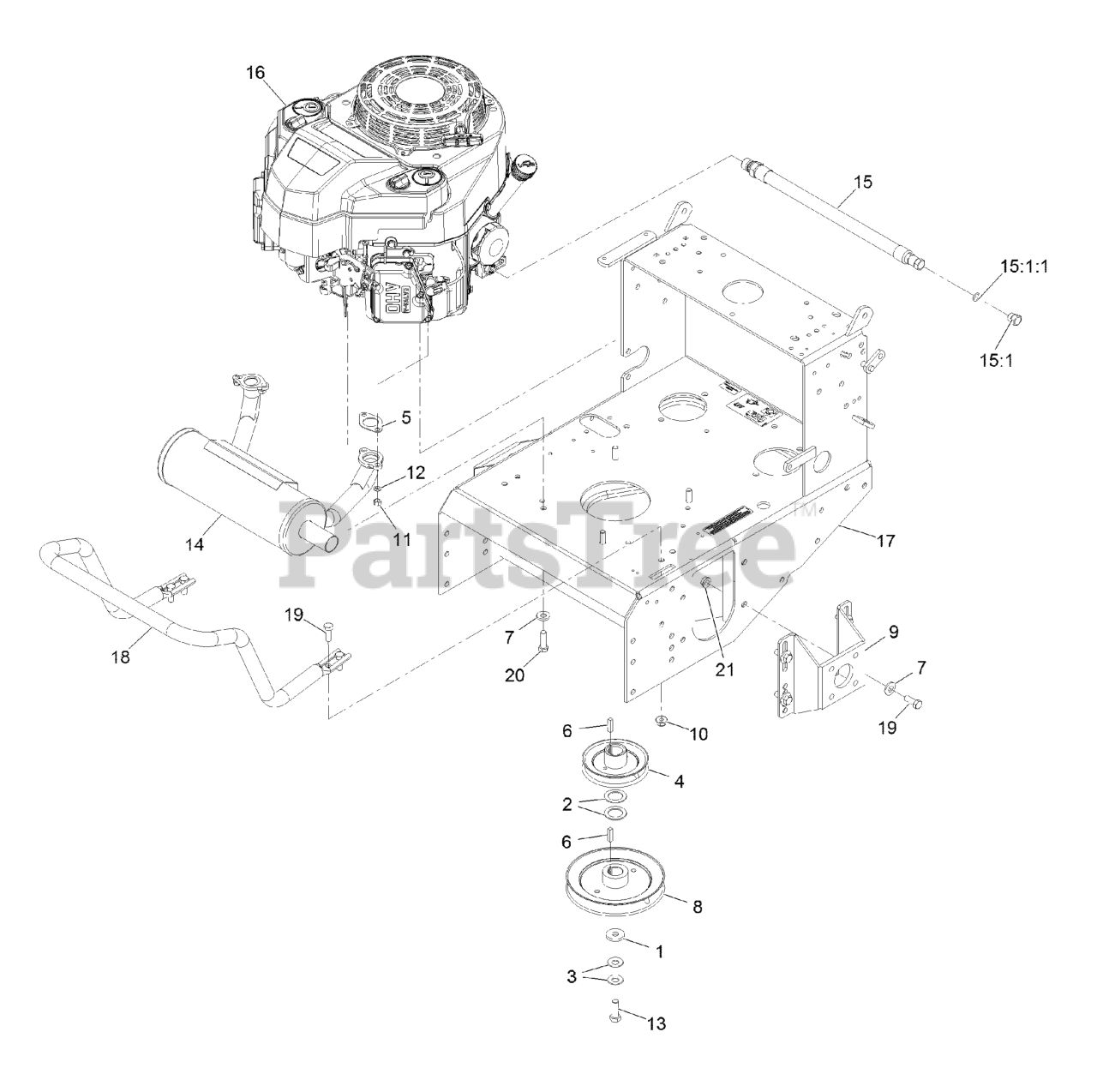

VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (Rev C) (2019) Engine Deck Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

2

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

5

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

6

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-1668

1-643292
(Superseded to 1-643292)

Note: Apply anti-seize compound in bore.

$92.99

$

In Stock, only 1 left!

0

9

Exmark 103-2289-01

MOUNT-MOTOR

$137.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

12

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

13

Exmark 116-3702

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 116-3734

MUFFLER-HORIZONTAL, OFFSE

$325.99

$

Usually ships in 3-6 days

0

15

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$52.99

$

In Stock, only 1 left!

0

15:1

Exmark 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.49

$

In Stock, only 1 left!

0

15:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

16

Engine-Kawasaki

Note: Not serviced separately

$

$

Not available

17

Exmark 116-6132

ASM, VH ENGINE DECK W/DECALS

$1127.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4729-03

TUBE-GUARD MUFFLER

$85.99

$

Usually ships in 3-6 days

0

19

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
