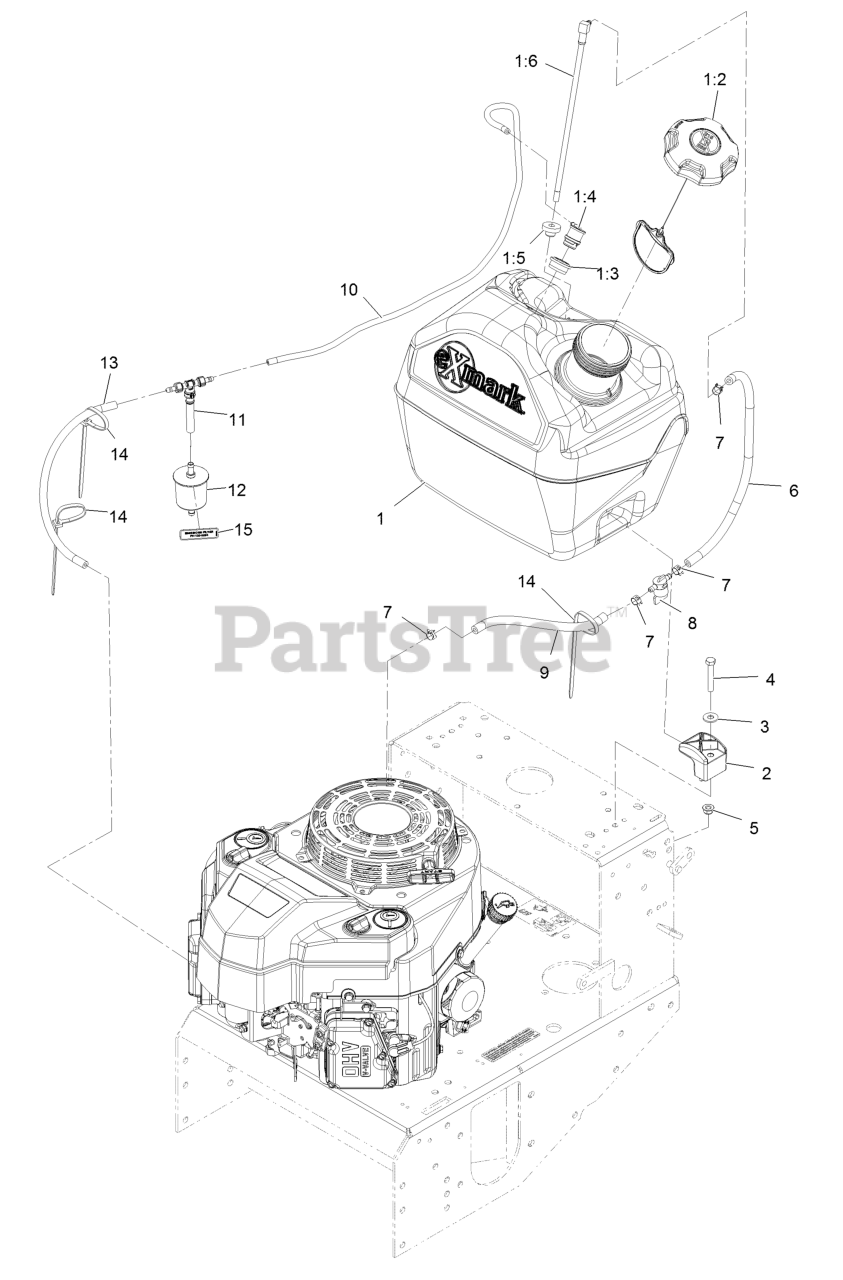

VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Fuel Tank Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 135-2855

ASM, Fuel Tank 5 Gal
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

Cap-Fuel, Ratcheting

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

Grommet

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

Valve-Vent, Fuel

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 10

0

1:6

Exmark 109-9364

Fitting-Fuel (W/Line And Screen)
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

Clamp

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

4

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 5

0

5

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

6

Exmark 114-4428

Hose-Fuel

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-603770

Valve-Fuel

$8.49

$

In Stock, Qty 7

0

9

Exmark 109-0293

Hose-Fuel Line 8 1/2"

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-4346

Hose-Emissions

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 116-5464

Tee And Check

$46.99

$

In Stock, only 1 left!

0

12

Exmark 120-2235

Filter-Fuel

$9.49

$

In Stock, Qty 5

0

13

Exmark 115-7872

Hose-Fuel

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

15

Exmark 116-4769

Decal-Filter, Emissions

$2.99

$

In Stock, only 3 left!

0

16

Pn 41019-1055 Filter W/6In Fuel Line

$

$

Not available
