VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Engine Deck Assembly and Park Brake Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

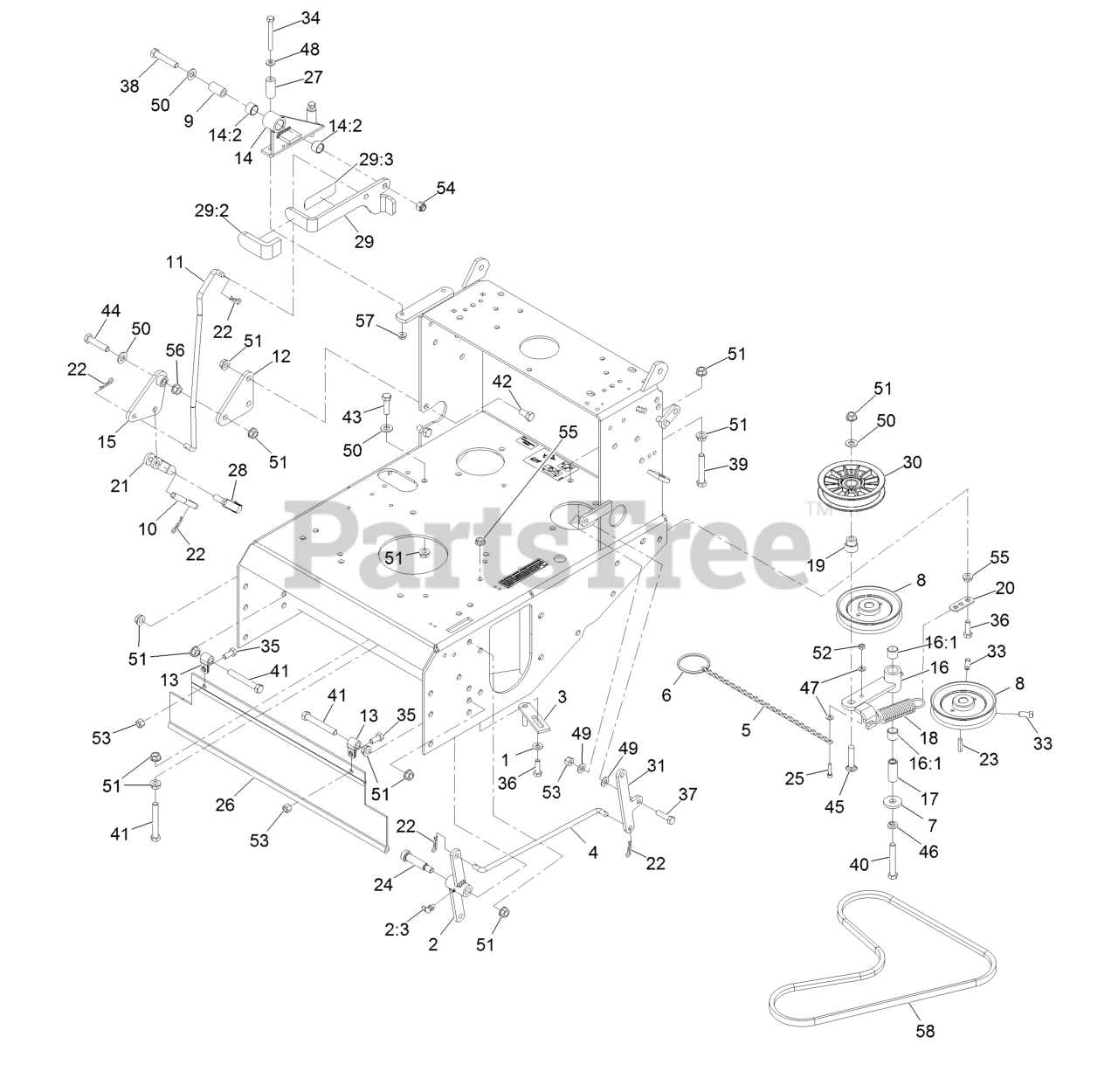

Engine Deck Assembly and Park Brake Assembly Parts Diagram

  • Title

1

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

2

Exmark 1-322108

Bellcrank ASM

$172.99

$

Usually ships in 3-6 days

0

2:3

Exmark 302-40

Zerk-90deg 1/4-28

$3.49

$

In Stock, Qty 20+

0

3

Exmark 1-322110

Guide-Belt

$12.99

$

In Stock, Qty 8

0

4

Exmark 1-323172

Linkage-Engage, Blade

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 1-323365

Chain-Link, Twist

$17.99

$

In Stock, only 1 left!

0

6

Exmark 1-323366

Ring-Split

$6.49

$

In Stock, only 2 left!

0

7

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

8

Exmark 1-413010

Sheave ASM

$50.99

$

In Stock, only 2 left!

0

9

Exmark 1-413344

Bushing-Pivot

$19.99

$

In Stock, only 2 left!

0

10

Exmark 1-413489

Linkage-Lower

$22.99

$

In Stock, only 1 left!

0

11

Exmark 1-413496

Linkage-Upper

$60.99

$

Usually ships in 3-6 days

0

12

Exmark 1-413497

Bellcrank

$35.99

$

Usually ships in 3-6 days

0

13

Exmark 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

0

14

Exmark 1-414504

Bracket ASM

$90.99

$

Usually ships in 3-6 days

0

14:2

Exmark 1-413347

Sleeve-Bushing

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-414508

Bellcrank ASM

$62.99

$

Usually ships in 3-6 days

0

16

Exmark 1-602521

Idler Arm ASM

$115.99

$

Usually ships in 3-6 days

0

16:1

Exmark 103-4681

Sleeve-Bearing

$5.49

$

In Stock, Qty 20+

0

17

Exmark 1-603044

Bushing

$14.99

$

In Stock, Qty 20+

0

18

Exmark 1-603402

Spring-Extension

$7.99

$

In Stock, only 3 left!

0

19

Exmark 1-603496

Bushing-Idler

$7.49

$

In Stock, Qty 20+

0

20

Exmark 1-603801

Anchor-Spring

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, Qty 5

0

22

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-807272

Key-5Mm X 5Mm X 25Mm

$5.99

$

In Stock, Qty 11

0

24

Exmark 1-809062

Screw

$17.99

$

In Stock, only 2 left!

0

25

Exmark 1-809069

Screw-HSH #10-24 X 7/8

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 103-2056

Shield-Drag

$63.99

$

In Stock, Qty 8

0

27

Exmark 103-2191

Spacer

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 103-2399

Pin-Clevis Spring 3/8

$6.49

$

In Stock, Qty 11

0

29

Exmark 103-3495

Lever, Park Brake W/Decals

$80.99

$

Usually ships in 3-6 days

0

29:2

Exmark 1-303020

Grip-Lever

$2.99

$

In Stock, Qty 6

0

29:3

Exmark 116-7923

Decal-Parking Brake

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 109-4077

Pulley-Idler, Flat

$21.99

$

In Stock, only 1 left!

0

31

Exmark 116-1737-01

Bellcrank

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 120-6474

Screw-Set, SQH 5/16-18 X 3/4

$2.99

$

In Stock, Qty 11

0

34

Exmark 321-15

Screw-HH

$1.49

$

In Stock, Qty 11

0

35

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 13

0

36

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

37

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$3.99

$

In Stock, Qty 20+

0

38

Exmark 323-10

Screw-HH 3/8-16 X 2

$0.99

$

In Stock, Qty 20+

0

39

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

40

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.49

$

In Stock, Qty 10

0

41

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, only 3 left!

0

42

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, only 1 left!

0

43

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

44

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.49

$

In Stock, only 2 left!

0

46

Exmark 3253-5

Washer-Lock 3/8 Heavy

$0.99

$

In Stock, Qty 17

0

47

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

50

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 12

0

51

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

52

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

53

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

54

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 8

0

55

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

56

Exmark 32128-21

Nut-3/8-16 Flanged Side Lock

$0.99

$

In Stock, Qty 20+

0

57

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

58

Exmark 103-4760

Belt-Cog
(Superseded to 103-4760-SL)

$44.99

$

In Stock, Qty 11

0
