VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Engine Deck Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

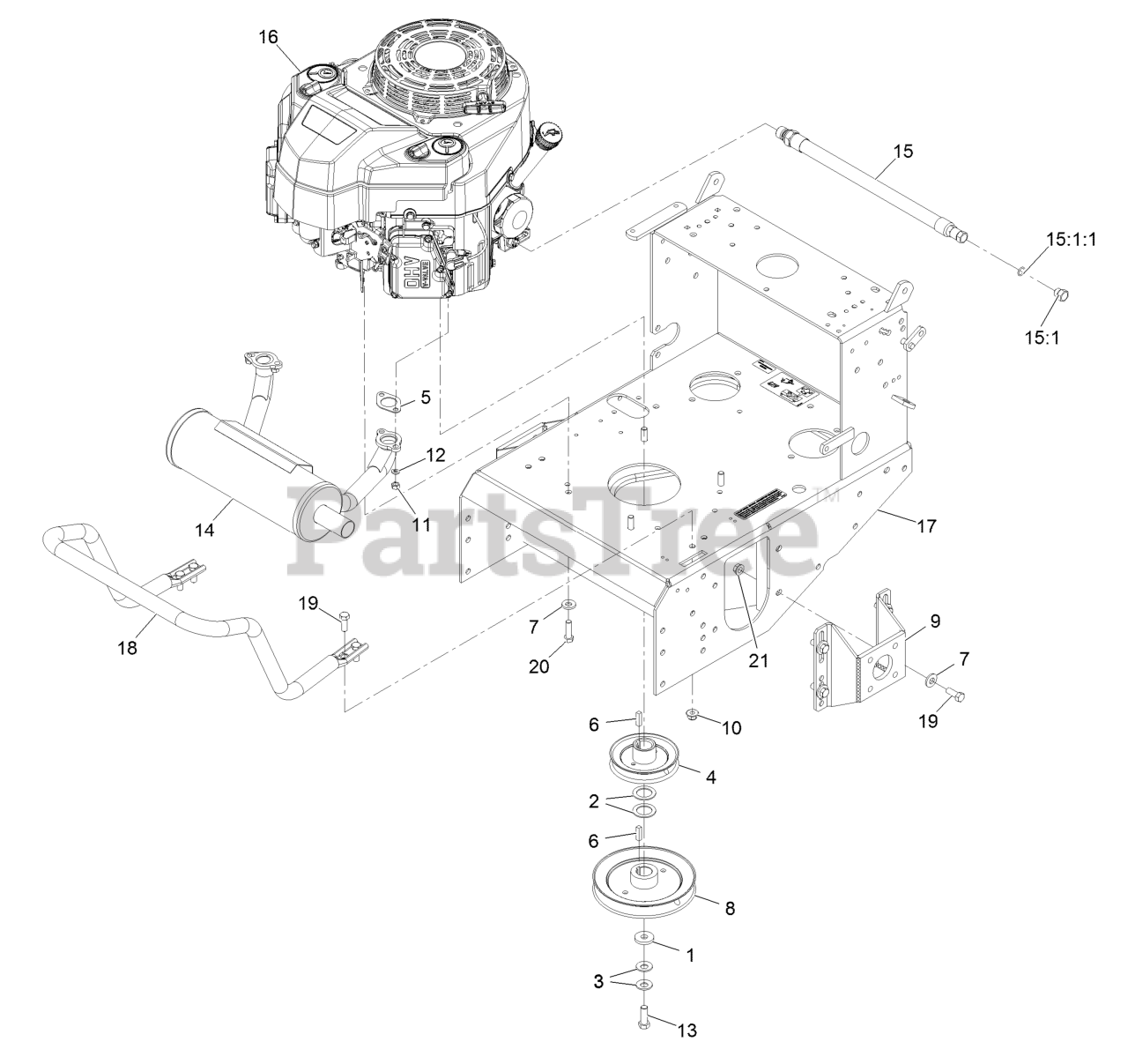

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

2

Exmark 1-523157

Washer

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-653035

Pulley

$68.99

$

In Stock, only 2 left!

0

5

Exmark 1-653313

Gasket-Exhaust

$4.99

$

Usually ships in 3-6 days

0

6

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.99

$

In Stock, only 2 left!

0

7

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-1668

Sheave
(Superseded to 1-643292)

$92.99

$

In Stock, only 1 left!

0

9

Exmark 103-2289-01

Mount-Motor

$137.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 114-3549

Nut-M8

$1.99

$

In Stock, Qty 20+

0

12

Exmark 114-3550

Washer-Spring Lock M8

$1.49

$

In Stock, Qty 6

0

13

Exmark 116-3702

Screw-HH

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 116-3734

Muffler-Horizontal, Offset

$325.99

$

Usually ships in 3-6 days

0

15

Exmark 116-5052

Asm-Oil Drain Hose W/Plug

$52.99

$

In Stock, only 1 left!

0

15:1

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

15:1:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

16

Engine-Kawasaki

$

$

Not available

17

Exmark 116-6132

ASM, Vh Engine Deck W/Decals

$1127.99

$

Usually ships in 3-6 days

0

18

Exmark 116-6278-03

Guard-Muffler
(Superseded to 135-4729-03)

$85.99

$

Usually ships in 3-6 days

0

19

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

20

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0
