VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Engine Deck and Speed Control Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

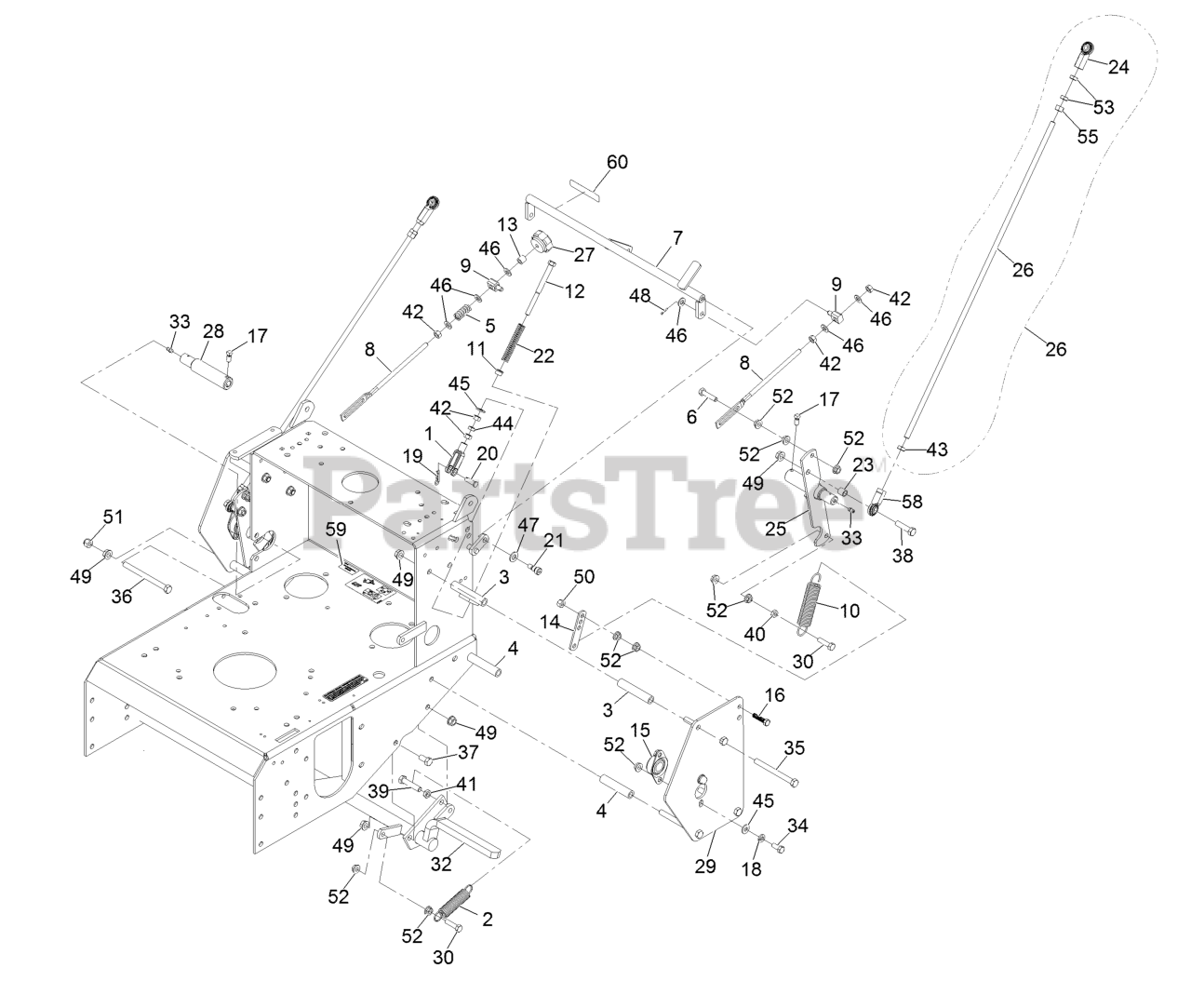

Engine Deck and Speed Control Assembly Parts Diagram

  • Title

1

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, only 1 left!

0

2

Exmark 1-323161

Spring

$11.99

$

In Stock, only 3 left!

0

3

Exmark 1-323195-01

Spacer-Shield

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-323197-01

Spacer-Shield

$7.99

$

In Stock, Qty 16

0

5

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

6

Exmark 1-403180

Screw-HH 5/16-18 X 1 3/8 Special

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-412203-01

Crank-Control, Speed

$158.99

$

Usually ships in 3-6 days

0

8

Exmark 1-413350

Link-Control, Speed

$15.99

$

In Stock, only 1 left!

0

9

Exmark 1-603676

Swivel-Adjustable, Short
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

10

Exmark 1-603693

Spring

$14.99

$

In Stock, only 3 left!

0

11

Exmark 1-603735

Bushing-Flanged

$6.49

$

In Stock, only 4 left!

0

12

Exmark 1-603737

Bolt-Neutral Return

$9.49

$

In Stock, only 2 left!

0

13

Exmark 1-603903

Spacer

$5.49

$

In Stock, only 2 left!

0

14

Exmark 1-613089

Tab-Spring, Extension

$10.99

$

In Stock, Qty 5

0

15

Exmark 1-633102

Bearing-Flanged

$18.99

$

In Stock, only 2 left!

0

16

Exmark 1-800016

Bolt-HH 5/16-18 X 1 1/4 Tap

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 1-803022

Setscrew-5/16-18 X 5/8

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-805005

Washer-Lock 5/16 Heavy

$1.49

$

In Stock, Qty 12

0

19

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

21

Exmark 1-809056

Screw-Sh 5/16-18 X 1 3/8

$7.99

$

In Stock, only 2 left!

0

22

Exmark 103-0265

Spring, Neutral Return

$5.49

$

In Stock, only 1 left!

0

23

Exmark 103-1166

Spacer-Tube, Pump Link

$6.49

$

In Stock, only 3 left!

0

24

Exmark 103-2463

Balljoint

$28.99

$

In Stock, only 2 left!

0

25

Exmark 103-1190-01

Shaft-Control, LH

$173.99

$

Usually ships in 3-6 days

0

26

Exmark 103-1734

Linkage, Drive

$28.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3415

Drive Link ASM

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 103-3060

Knob-Tracking

$6.99

$

In Stock, only 2 left!

0

28

Exmark 103-4796-01

Shaft-Control, RH

$136.99

$

Usually ships in 3-6 days

0

29

Exmark 110-4897-01

Shield-Control

$103.99

$

Usually ships in 3-6 days

0

30

Exmark 116-3515

Screw,HH Special 5/16-18 X 1.25

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 126-1599

Shaft-Cross, Brake

$174.99

$

Usually ships in 3-6 days

0

33

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

34

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 13

0

35

Exmark 323-16

Screw-HH 3/8-16 X 4

$3.49

$

In Stock, Qty 7

0

36

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 16

0

37

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, only 1 left!

0

38

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

39

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3218-3

Nut-Jam 3/8-16

$0.99

$

In Stock, Qty 10

0

42

Exmark 3219-2

Nut-Hex 5/16-24

$0.99

$

In Stock, Qty 11

0

43

Exmark 3220-16

Nut-Jam 3/8-24 LH

$1.99

$

In Stock, Qty 5

0

44

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 14

0

48

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

49

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

50

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

51

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 8

0

52

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

53

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

55

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

0

58

Exmark 103-1167

Joint-Ball End

$31.99

$

In Stock, Qty 10

0

59

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

60

Exmark 116-7918

Decal-Tracking Adjustment

$25.99

$

Usually ships in 3-6 days

0
