VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

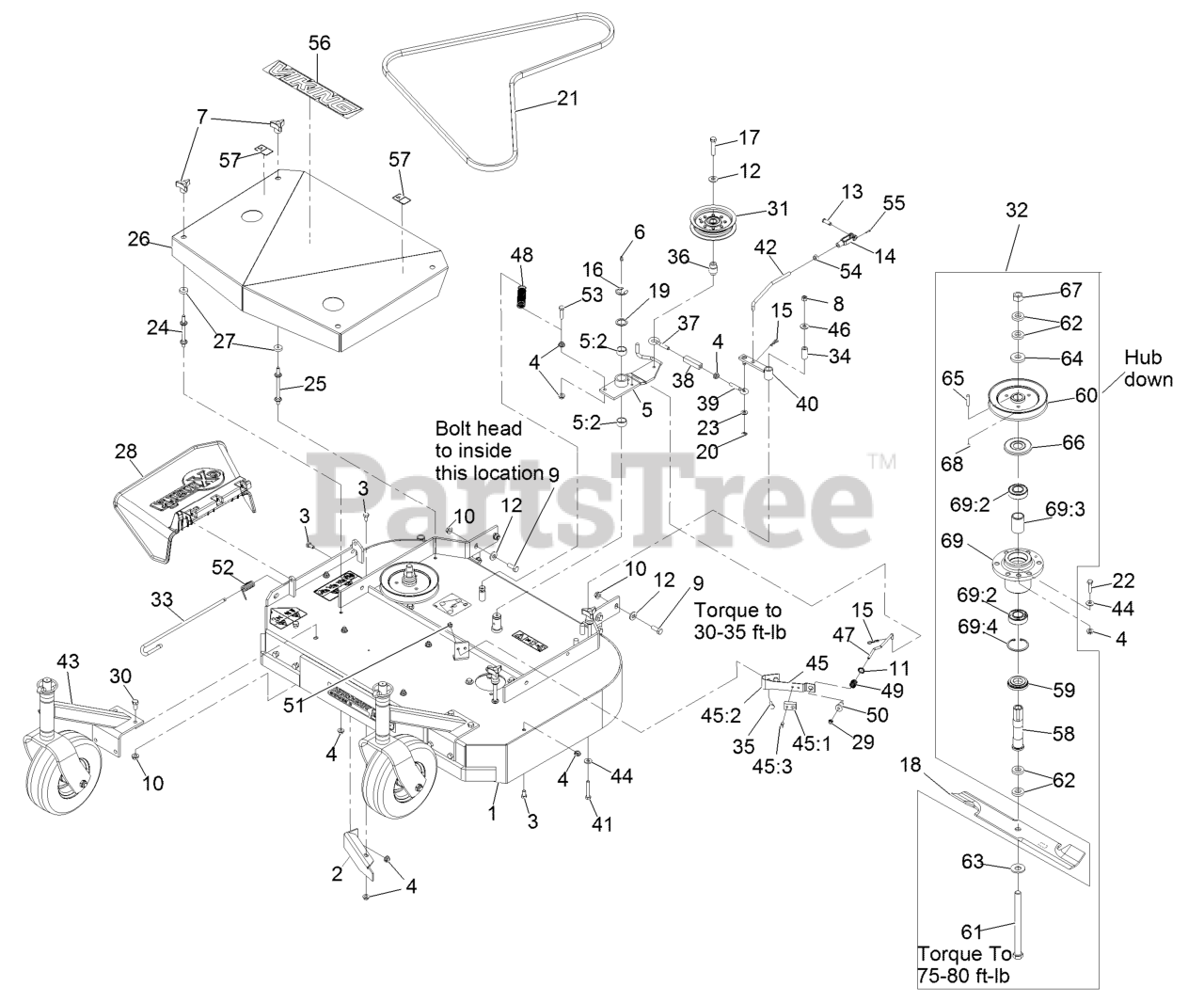

Deck Assembly Parts Diagram

  • Title

1

Exmark 103-2312

ASM,DECK 36 RIGID

$2638.99

$

Usually ships in 3-6 days

0

2

Exmark 116-1730-01

BAFFLE-DOGLEG

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 103-3600

IDLER ARM ASM

$133.99

$

Usually ships in 3-6 days

0

5:2

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, only 2 left!

0

6

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

7

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

17

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

18

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

18

Exmark 103-6580

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

18

Exmark 103-6582

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$31.99

$

In Stock, Qty 20+

0

18

Exmark 103-6584

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 5

0

18

Exmark 116-5176

116-5176-S
(Superseded to 116-5176-S)

$30.99

$

In Stock, Qty 20+

0

19

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

20

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

21

Exmark 1-323735

BELT,BLADE VIKING HYD 36
(Superseded to 1-323735-SL)

$77.99

$

In Stock, only 3 left!

0

22

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

25

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

26

Exmark 116-2704

ASM,SHIELD W/DECALS 36 VI

$398.99

$

Usually ships in 3-6 days

0

27

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

28

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

0

29

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

31

Exmark 116-3626

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 17

0

32

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$550.99

$

Usually ships in 3-6 days

0

33

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

34

Exmark 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

35

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

40

Exmark 1-322235

ARM-ASSIST, 32/36

$54.99

$

Usually ships in 3-6 days

0

41

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

42

Exmark 1-323174

ARM-LINKAGE, ASSIST

$29.99

$

Usually ships in 3-6 days

0

43

Exmark 116-8245

ASM-CASTER MNT W/WEIGHT

$732.99

$

Usually ships in 3-6 days

0

44

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

45

Exmark 1-324372

PAD AND SPRING ASM

$68.99

$

In Stock, only 1 left!

0

45:1

Exmark 1-323709

PAD-BRAKE

Note: Not illustrated

$28.99

$

In Stock, only 3 left!

0

45:2

Exmark 1-323710

1-324372
(Superseded to 1-324372)

Note: Not illustrated

$68.99

$

In Stock, only 1 left!

0

45:3

Exmark 103-0138

RIVET-POP

Note: Not illustrated

$1.49

$

In Stock, Qty 18

0

46

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Exmark 1-323715

ROD-BRAKE

$26.99

$

In Stock, Qty 5

0

48

Exmark 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

49

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 10

0

50

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

51

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

52

Exmark 116-0962

SPRING, TORSION

$8.49

$

In Stock, only 1 left!

0

53

Exmark 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

54

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

55

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

56

Exmark 126-6891

DECAL, VIKING HYDRO MODEL

$11.99

$

In Stock, only 1 left!

0

57

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

58

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$88.99

$

In Stock, only 2 left!

0

59

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

60

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$69.99

$

In Stock, only 1 left!

0

61

Exmark 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

62

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

63

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

64

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

65

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

66

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$5.49

$

In Stock, only 2 left!

0

67

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

68

Exmark 3246-18

SETSCREW

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$5.49

$

Usually ships in 3-6 days

0

69

Cutter Housing ASM

Note: Not serviced separately

$

$

Not available

69

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$254.99

$

In Stock, only 4 left!

0

69:2

Exmark 103-2477

BEARING-JACKSHAFT

$59.99

$

In Stock, Qty 11

0

69:3

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

69:4

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0
