VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016) Engine Deck and Speed Control Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

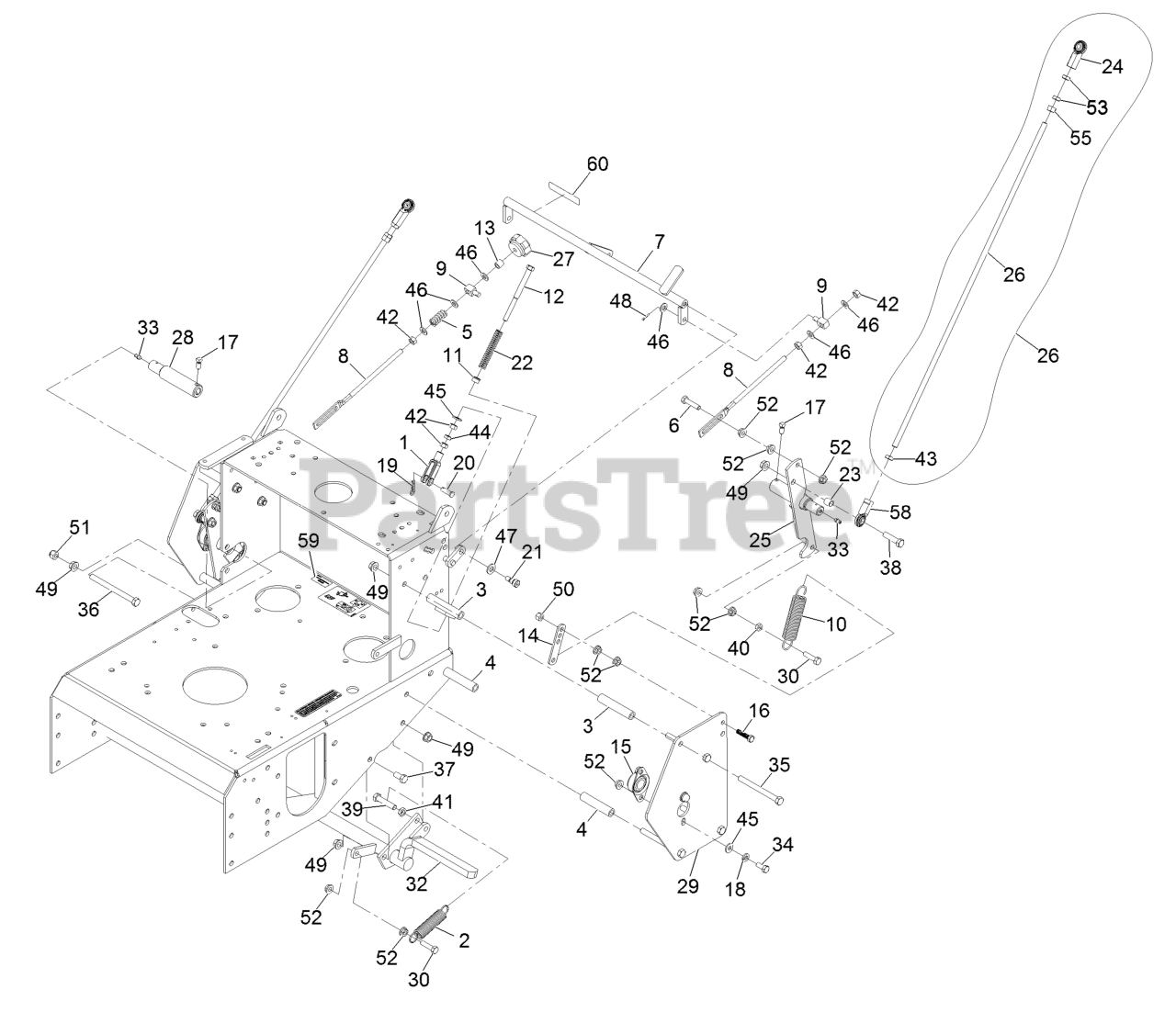

Engine Deck and Speed Control Assembly Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

3

Exmark 1-323195

1-323195-01
(Superseded to 1-323195-01)

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-323197

1-323197-01
(Superseded to 1-323197-01)

$7.99

$

In Stock, Qty 16

0

5

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

6

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-412203-01

CRANK-CONTROL, SPEED

$158.99

$

Usually ships in 3-6 days

0

8

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

0

9

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

10

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

0

11

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

12

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

13

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 1 left!

0

14

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

15

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

16

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

19

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

21

Exmark 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

22

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$5.49

$

In Stock, only 1 left!

0

23

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.49

$

In Stock, only 3 left!

0

24

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

25

Exmark 103-1190-01

SHAFT-CONTROL, LH

$173.99

$

Usually ships in 3-6 days

0

26

Exmark 103-1734

LINKAGE,DRIVE (PLT)

$28.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3415

DRIVE LINK ASM

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 1 left!

0

28

Exmark 103-4796-01

SHAFT-CONTROL, RH

$136.99

$

Usually ships in 3-6 days

0

29

Exmark 110-4897-01

SHIELD-CONTROL

$103.99

$

Usually ships in 3-6 days

0

30

Exmark 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 126-1599

SHAFT-CROSS, BRAKE

$174.99

$

Usually ships in 3-6 days

0

33

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

34

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

35

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

36

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

37

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

38

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

42

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

43

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

44

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

49

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

50

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

52

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

53

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

55

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

58

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

59

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

60

Exmark 116-7918

DECAL-TRACKING ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0
