VH5217KAC - Exmark 52" Viking Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 510000 - 599999) (2005) Hydraulic Group Parts Diagram

52" Viking Hydro Walk-Behind Mower, 17hp Kawasaki

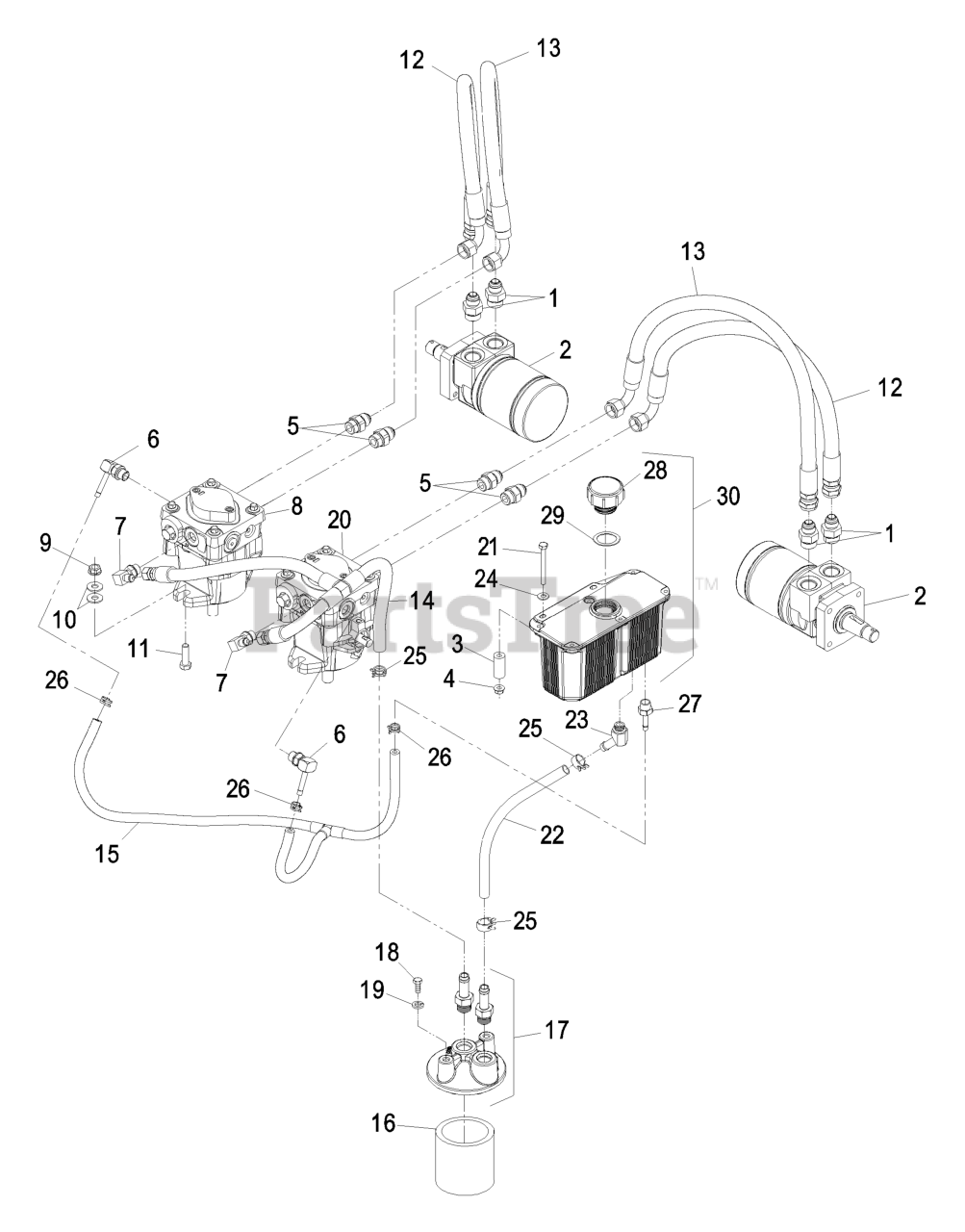

Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

3

Exmark 103-2191

SPACER

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 106-5490

109-4988
(Superseded to 109-4988)

$1200.99

$

In Stock, only 1 left!

0

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$78.99

$

In Stock, only 2 left!

0

13

Exmark 1-323241

HOSE-PRESSURE, HIGH

$86.99

$

Usually ships in 3-6 days

0

14

Exmark 103-3914

CHARGE HOSE ASM

$73.99

$

Usually ships in 3-6 days

0

15

Exmark 103-4019

CASE DRAIN HOSE ASM

$69.99

$

Usually ships in 3-6 days

0

16

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$49.99

$

In Stock, Qty 13

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F (0°C).

$49.99

$

In Stock, only 1 left!

0

17

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

20

Exmark 103-4611

109-4987
(Superseded to 109-4987)

$1321.99

$

Usually ships in 3-6 days

0

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

21

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

22

Exmark 103-2959

HOSE-CHARGE

$8.49

$

Usually ships in 3-6 days

0

23

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

27

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

29

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0
