Exmark VH481KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS481V (SN: 313000000 - 313999999) (2013) Engine Deck Assembly (cont.) Parts Lookup with Diagrams

1

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

2

Exmark 1-412203-01

CRANK-CONTROL, SPEED

$158.99

$

Usually ships in 3-6 days

3

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$7.99

$

In Stock, only 2 left!

4

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

5

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

6

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$5.49

$

In Stock, only 1 left!

7

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

8

Exmark 3256-2

WASHER-FLAT

(Superseded to 3256-2) 

$0.99

$

In Stock, Qty 20+

9

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

10

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

11

Exmark 1-603903

SPACER

$5.49

$

In Stock, Qty 20+

12

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

13

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

14

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

15

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

16

Exmark 1-603676

126-8571

(Superseded to 126-8571) 

$5.49

$

In Stock, only 2 left!

17

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

18

Exmark 103-1190-01

SHAFT-CONTROL, LH

$173.99

$

Usually ships in 3-6 days

20

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

22

Exmark 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

23

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

24

Exmark 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

25

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

26

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

27

Exmark 110-4897-01

SHIELD-CONTROL

$103.99

$

Usually ships in 3-6 days

28

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

29

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

30

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

31

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

32

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

33

Exmark 103-4796-01

SHAFT-CONTROL, RH

$136.99

$

Usually ships in 3-6 days

34

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

35

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

36

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

37

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

38

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

39

Exmark 1-413489

LINKAGE-LOWER

$22.99

$

In Stock, only 1 left!

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

41

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 11

42

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

43

Exmark 103-1734

LINKAGE,DRIVE (PLT)

$28.99

$

Usually ships in 3-6 days

44

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

45

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

46

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

47

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

48

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.49

$

In Stock, only 3 left!

49

Exmark 103-2085-03

126-1599

(Superseded to 126-1599) 

$174.99

$

Usually ships in 3-6 days

50

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

51

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

52

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

53

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

54

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

55

Exmark 103-3495

LEVER,PARK BRK W/DECAL

$80.99

$

Usually ships in 3-6 days

56

Exmark 1-414504

BRACKET ASM

$90.99

$

Usually ships in 3-6 days

57

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

58

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

59

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

60

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

61

Exmark 1-413496

LINKAGE-UPPER

$60.99

$

Usually ships in 3-6 days

62

Exmark 1-413497

BELLCRANK

$35.99

$

Usually ships in 3-6 days

63

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

64

Exmark 1-414508

BELLCRANK ASM

$62.99

$

Usually ships in 3-6 days

65

Exmark 1-303548

BUSHING-PLASTIC

$5.49

$

In Stock, only 2 left!

66

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

67

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$52.99

$

In Stock, only 1 left!

68

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

69

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

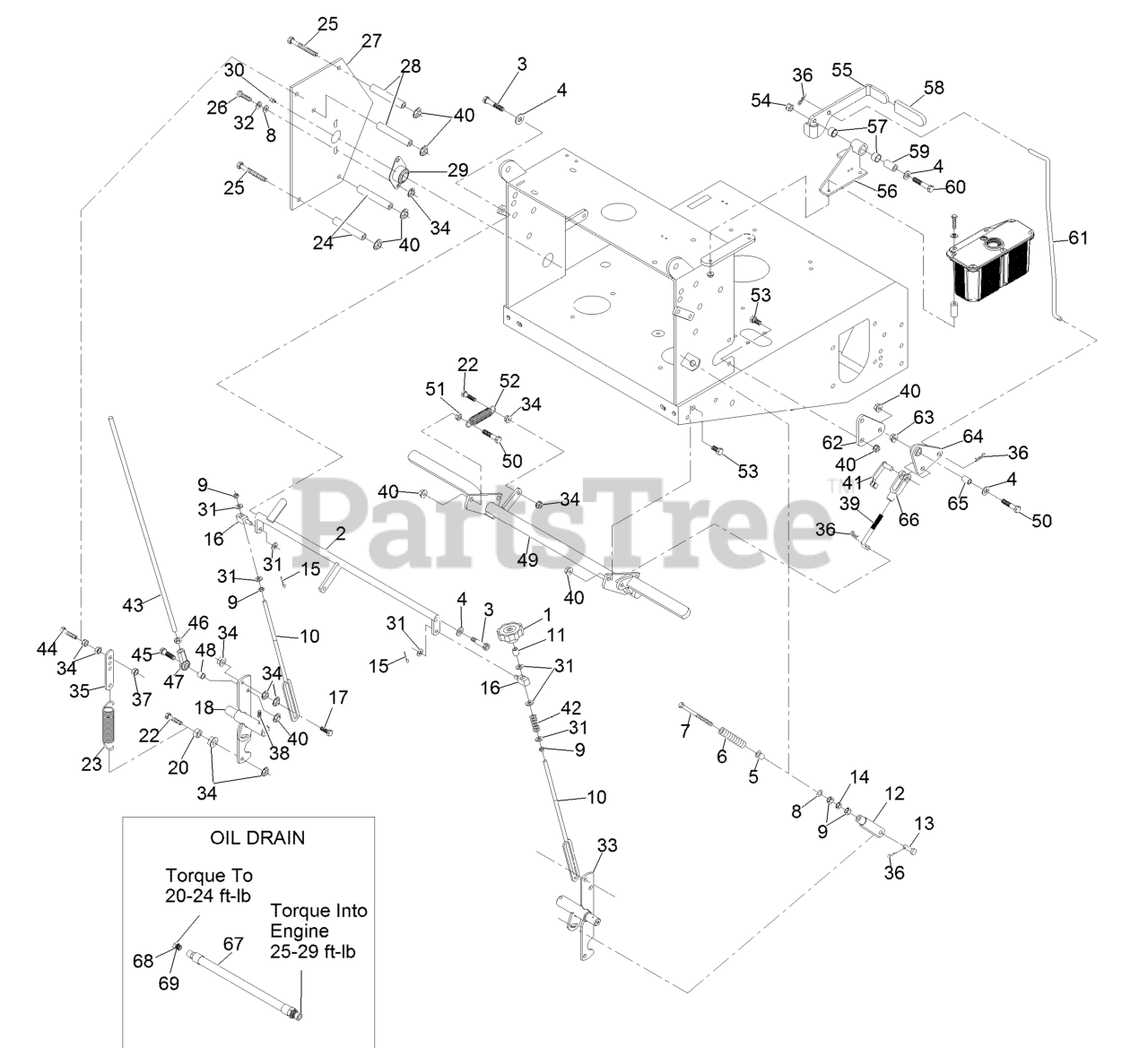

VH481KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS481V (SN: 313000000 - 313999999) (2013) Engine Deck Assembly (cont.) Parts Diagram

Engine Deck Assembly (cont.) Parts Diagram
