VH4815KC - Exmark 48" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 130000 - 149999) (1997) Hydraulics Group Parts Diagram

48" Viking Hydro Walk-Behind Mower, 15hp Kohler

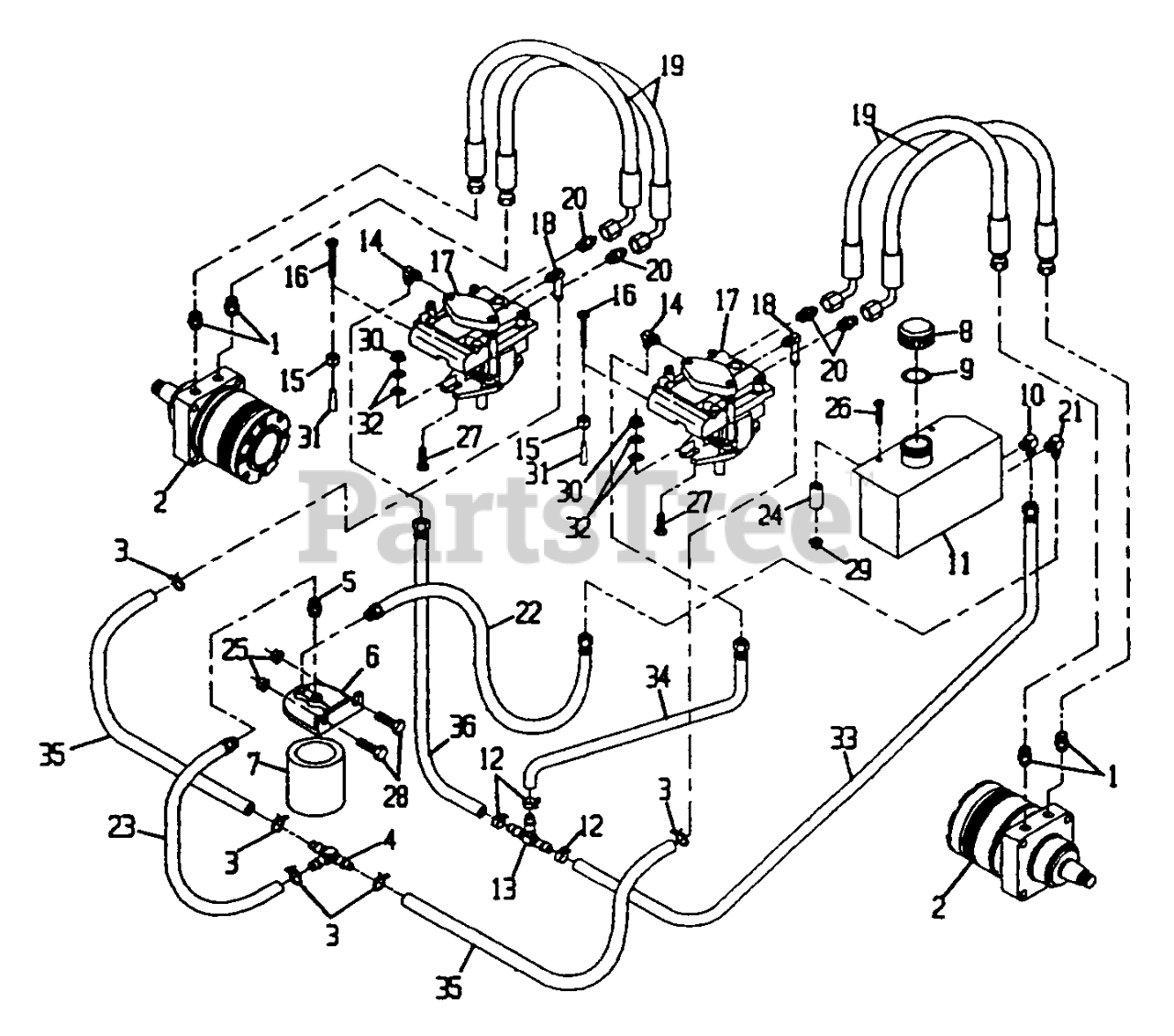

Hydraulics Group Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

3

Exmark 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

4

Exmark 1-603721

FITTING-TEE, HOSE

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 1-513510

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 1-603720

DISCONTINUED

Note: Use teflon pipe sealant or equivalent on hydraulic reservoir and filter head fittings

$

$

Not available

7

Exmark 1-513211

109-4180
(Superseded to 109-4180)

Note: Use only for operation below 32øF(0øC)

$49.99

$

In Stock, Qty 13

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

$49.99

$

In Stock, only 1 left!

0

8

Exmark 1-513167

CAP

$28.99

$

In Stock, only 4 left!

0

9

Exmark 1-523103

GASKET-CAP, TANK

$7.49

$

In Stock, Qty 5

0

10

Exmark 1-603987

FITTING-ELBOW

$21.99

$

Usually ships in 3-6 days

0

11

Exmark 1-512166-03

DISCONTINUED

Note: Use teflon pipe sealant or equivalent on hydraulic reservoir and filter head fittings

$

$

Not available

12

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-603722

FITTING-TEE, HOSE

$25.99

$

Usually ships in 3-6 days

0

14

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

15

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-801063

SCREW

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 1-613042

PUMP

$1399.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603989

FITTING

$38.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 1-403102

HOSE-PRESSURE, HIGH

$121.99

$

In Stock, Qty 5

0

20

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 1-603988

FITTING-ELBOW

$23.99

$

Usually ships in 3-6 days

0

22

Exmark 1-602985

ASM,HOSE LO PRESSURE

$64.99

$

In Stock, only 2 left!

0

23

Exmark 1-602754

ASM,HOSE CHARGE LINE

$50.99

$

Usually ships in 3-6 days

0

24

Exmark 1-323218

DISCONTINUED

$

$

Not available

25

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-800258

321-11
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

28

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-613073

GRIP-VALVE, DUMP

$5.99

$

Usually ships in 3-6 days

0

32

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-602750

ASM,HOSE CASE DRAIN

$51.99

$

Usually ships in 3-6 days

0

34

Exmark 1-632286

HOSE ASM

$28.99

$

In Stock, only 3 left!

0

35

Exmark 1-413273

HOSE

$14.99

$

In Stock, only 1 left!

0

36

Exmark 1-632285

HOSE ASM

$45.99

$

In Stock, only 3 left!

0
