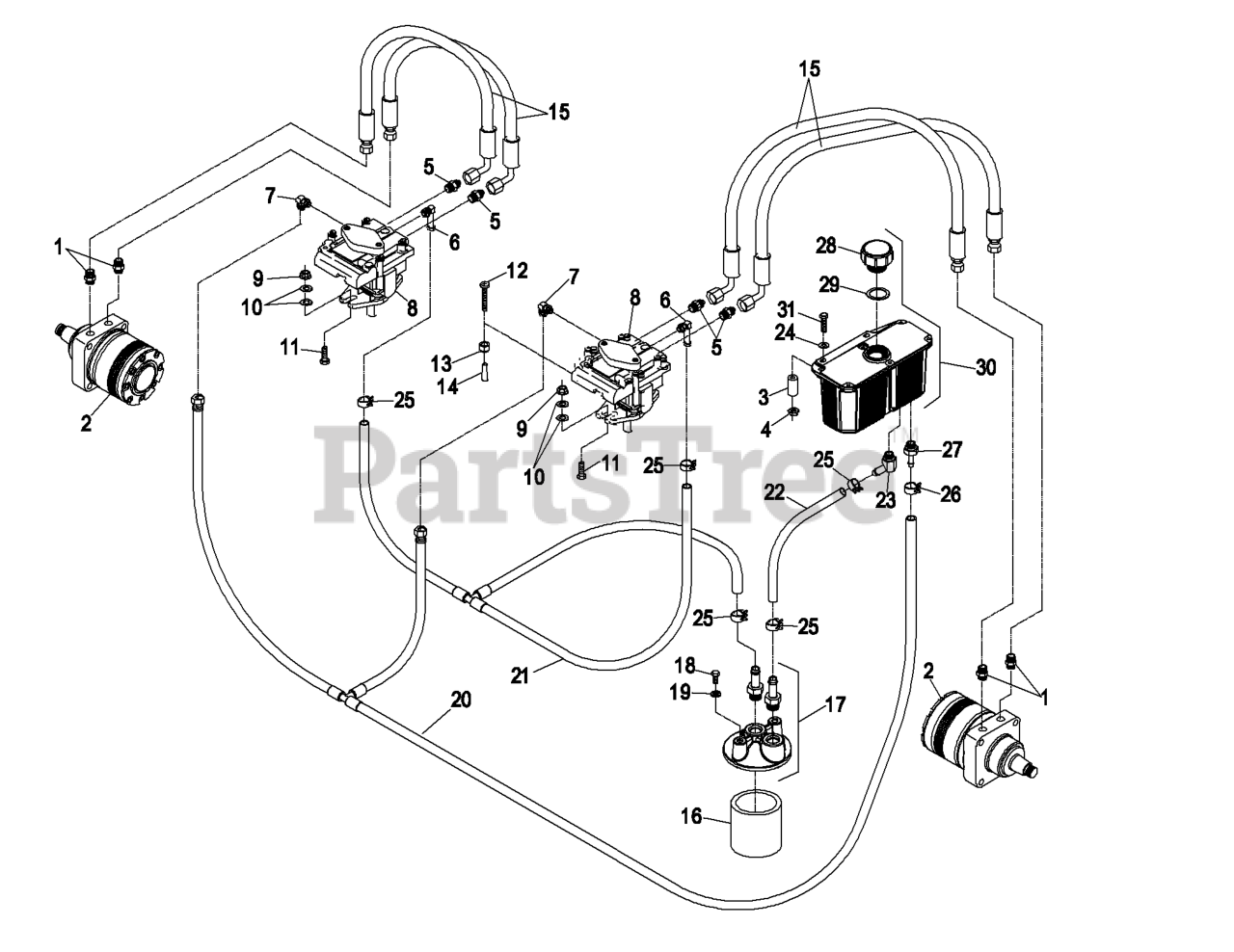

VH3615KAC - Exmark 36" Viking Hydro Walk-Behind Mower, 15hp Kawasaki (SN: 370000 - 439999) (2003) Hydraulic Group Parts Diagram

36" Viking Hydro Walk-Behind Mower, 15hp Kawasaki

Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$22.99

$

In Stock, Qty 9

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1208.99

$

In Stock, only 2 left!

0

Exmark 1-000138

BEARING AND SEAL KIT

$328.99

$

In Stock, only 1 left!

0

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 1 left!

0

3

Exmark 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

0

4

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 10

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-603989

FITTING

$40.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 1-613042

PUMP

$1402.99

$

Usually ships in 3-6 days

0

Exmark 2513018

80-6130
(Superseded to 80-6130)

$91.99

$

In Stock, only 4 left!

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-801063

SCREW

$5.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-613073

GRIP-VALVE, DUMP

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$83.99

$

In Stock, only 3 left!

0

16

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$52.99

$

In Stock, Qty 20+

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F(0°C)

$52.99

$

In Stock, only 1 left!

0

17

Exmark 103-2889

FILTER HEAD ASM

$113.99

$

Usually ships in 3-6 days

0

Exmark 103-1912

ADAPTER-STRAIGHT

$23.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

20

Exmark 103-2073

HYD HOSE ASM

$72.99

$

Usually ships in 3-6 days

0

21

Exmark 103-2057

HYD HOSE ASM

$56.99

$

Usually ships in 3-6 days

0

22

Exmark 103-2959

HOSE-CHARGE

$8.99

$

In Stock, only 1 left!

0

23

Exmark 103-1807

FITTING-BARBED, 45 DEG

$29.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, only 4 left!

0

27

Exmark 103-1801

ADAPTER-STRAIGHT

$33.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$35.99

$

In Stock, Qty 6

0

29

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-1947

HYD RESERVOIR ASM

$279.99

$

Usually ships in 3-6 days

0

31

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0
