VH3614KA - Exmark 36" Viking Hydro Walk-Behind Mower, 14hp Kawasaki (SN: 190000 - 219999) (1999) Engine Deck Group Parts Diagram

36" Viking Hydro Walk-Behind Mower, 14hp Kawasaki

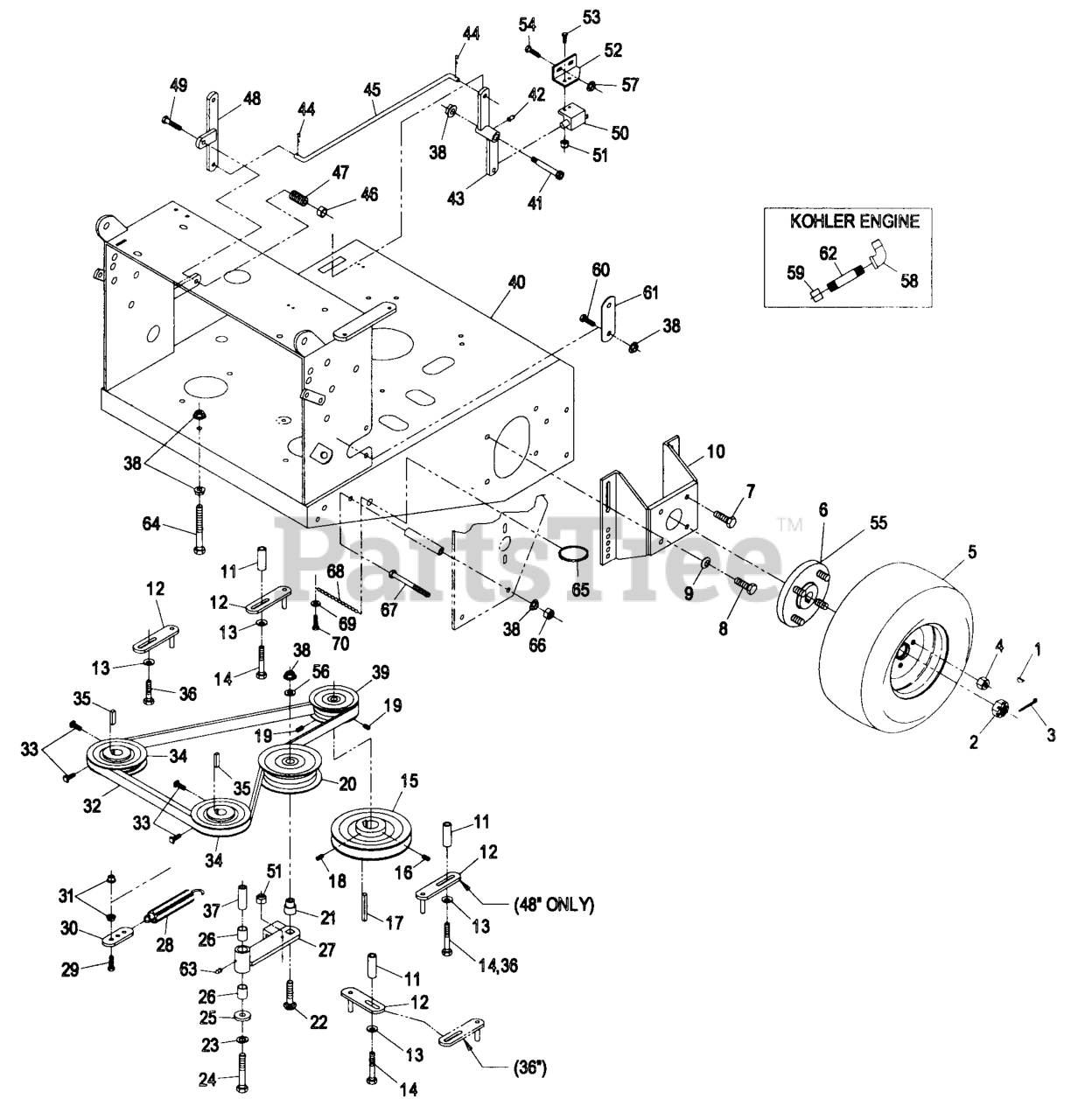

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

2

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$7.99

$

In Stock, only 1 left!

0

3

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

5

Exmark 1-413473

WHEEL AND TIRE ASM

$218.99

$

Usually ships in 3-6 days

0

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$72.99

$

In Stock, only 2 left!

0

6

Exmark 1-602997

112-9049
(Superseded to 112-9049)

Note: Use anti-seize compound on pulley bore and on tapered bore of hub.

$184.99

$

In Stock, only 1 left!

0

7

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

8

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

10

Exmark 1-322162-01

MOUNT-MOTOR

$

$

Not available

Exmark 1-402062-01

MOUNT-MOTOR

$178.99

$

Usually ships in 3-6 days

0

11

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

$11.99

$

In Stock, only 3 left!

0

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

$11.99

$

In Stock, only 3 left!

0

12

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

13

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

14

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (36" Kaw & Kohler)

$2.99

$

Usually ships in 3-6 days

0

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (48" Kaw & Kohler)

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 1-403087

1-403160
(Superseded to 1-403160)

Note: Use anti-seize compound on pulley bore and on tapered bore of hub.

$79.99

$

Usually ships in 3-6 days

0

Exmark 1-303498

SHEAVE,BLADE DRIVE

$145.99

$

In Stock, only 2 left!

0

16

Exmark 1-803046

30-1710
(Superseded to 30-1710)

Note: Use Pro-Lock (nut type, Part no. 840022, 5 ml tube) on setscrew threads.

$10.99

$

In Stock, only 2 left!

0

17

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 7

0

18

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock (nut type, Part no. 840022, 5 ml tube) on setscrew threads.

$2.99

$

In Stock, Qty 8

0

19

Exmark 1-803310

SCREW-SET

Note: Use Pro-Lock (nut type, Part no. 840022, 5 ml tube) on setscrew threads.

$2.99

$

In Stock, only 1 left!

0

20

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$34.99

$

In Stock, only 2 left!

0

21

Exmark 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

22

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.49

$

In Stock, Qty 10

0

23

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

25

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

27

Exmark 1-602521

IDLER ARM ASM

Note: (w/bearings)

$112.99

$

Usually ships in 3-6 days

0

Exmark 1-602458

1-602521
(Superseded to 1-602521)

Note: (w/o bearings)

$112.99

$

Usually ships in 3-6 days

0

28

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

29

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-603801

ANCHOR-SPRING

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-323225

BELT,HYDRO TRANS DRIVE

$29.99

$

Usually ships in 3-6 days

0

33

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock (nut type, Part no. 840022, 5 ml tube) on setscrew threads.

$2.99

$

In Stock, Qty 8

0

34

Exmark 1-603778

SHEAVE - PUMP

$88.99

$

Usually ships in 3-6 days

0

35

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

36

Exmark 1-809072

33114-025
(Superseded to 33114-025)

Note: (36" Kaw) (48" Koh)

$1.99

$

In Stock, Qty 20+

0

Exmark 1-809072

33114-025
(Superseded to 33114-025)

Note: (36" Kohler)

$1.99

$

In Stock, Qty 20+

0

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (36" Kaw & 48" Kaw)

$1.49

$

Usually ships in 3-6 days

0

37

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 6

0

38

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-403092

DISCONTINUED

Note: Use Pro-Lock (retaining type, Part no. 840023, .5cc tube) on pulley.

$

$

Not available

40

Exmark 1-322225

103-3500
(Superseded to 103-3500)

$

$

Not available

41

Exmark 1-809062

SCREW

$17.99

$

In Stock, only 2 left!

0

42

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

43

Exmark 1-322108

BELLCRANK ASM

$167.99

$

Usually ships in 3-6 days

0

Exmark 1-322086

1-322108
(Superseded to 1-322108)

$167.99

$

Usually ships in 3-6 days

0

44

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

45

Exmark 1-323172

LINKAGE-ENGAGE, BLADE

$19.99

$

Usually ships in 3-6 days

0

46

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

47

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

48

Exmark 1-322090-01

116-1737-01
(Superseded to 116-1737-01)

$11.99

$

Usually ships in 3-6 days

0

49

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

50

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

51

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

52

Exmark 1-323213

BRACKET-SWITCH, BLADE

$31.99

$

Usually ships in 3-6 days

0

53

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

54

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

55

Exmark 1-613150

1-633926
(Superseded to 1-633926)

$4.99

$

In Stock, Qty 17

0

56

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

57

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

58

Exmark 1-303431

FITTING-ELBOW-90

Note: (Koh) Use a Teflon pipe sealant of equivalent on threads.

$

$

Not available

59

Exmark 1-543233

CAP-HEX

Note: (Koh) Use a Teflon pipe sealant of equivalent on threads.

$17.99

$

Usually ships in 3-6 days

0

60

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

61

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

62

Exmark 1-323326

NIPPLE

Note: (Kohler) Use a Teflon pipe sealant of equivalent on threads.

$

$

Not available

63

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

64

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

65

Exmark 1-323366

RING-SPLIT

$6.49

$

In Stock, only 2 left!

0

66

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

67

Exmark 1-800303

323-23
(Superseded to 323-23)

$5.49

$

In Stock, Qty 16

0

68

Exmark 1-323365

CHAIN-LINK, TWIST

$17.99

$

In Stock, only 1 left!

0

69

Exmark 1-805252

3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

70

Exmark 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$18.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16
