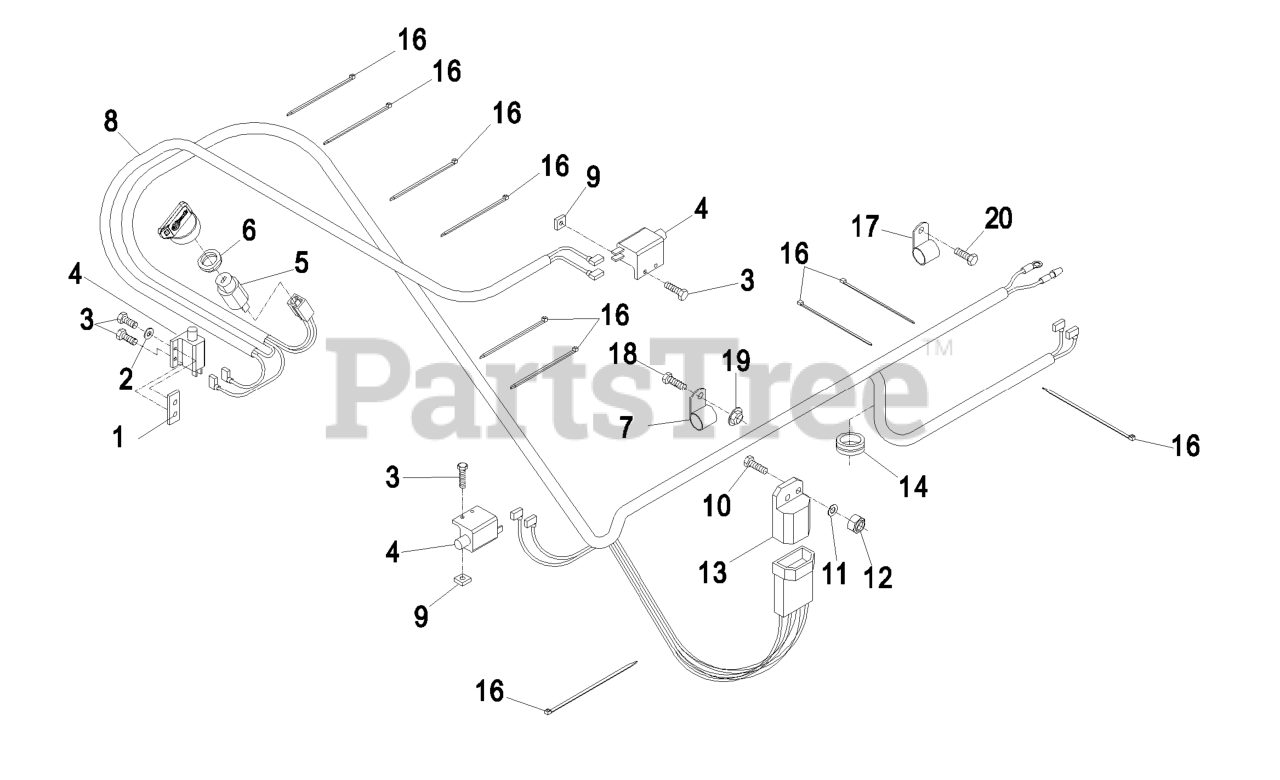

VH3215KCC - Exmark 32" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 370000 - 439999) (2003) Electrical Group Parts Diagram

32" Viking Hydro Walk-Behind Mower, 15hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

2

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

5

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

6

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

7

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 103-2007

HARNESS-WIRING

Note: Use dielectric grease on all wiring harness connectors.

$165.99

$

Usually ships in 3-6 days

0

Exmark 103-2286

HARNESS-WIRE

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

9

Exmark 1-804002

NUT-SQH

$

$

Not available

10

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 1 left!

0

14

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

16

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
