VH3215KCC - Exmark 32" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 260000 - 319999) (2001) ECS Upper Handle And Controls Parts Diagram

32" Viking Hydro Walk-Behind Mower, 15hp Kohler

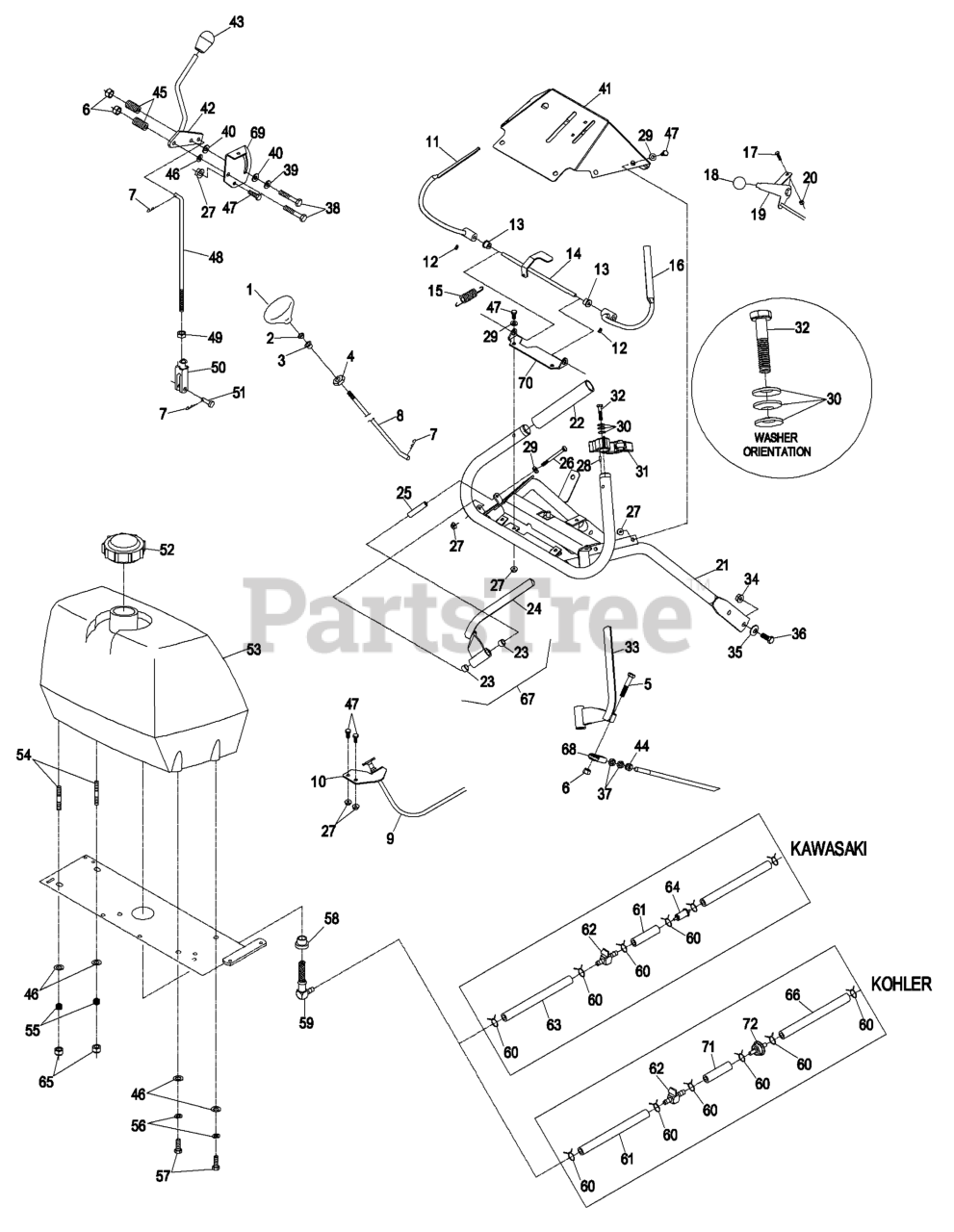

ECS Upper Handle And Controls Parts Diagram

  • Title

1

Exmark 1-323134

KNOB-PUSH / PULL

$28.99

$

In Stock, only 2 left!

0

2

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-323143

BEARING-NYLON

$6.49

$

In Stock, only 4 left!

0

4

Exmark 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

5

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-2193

LINKAGE,BLADE PUSH/PULL

$23.99

$

Usually ships in 3-6 days

0

9

Exmark 103-1796

CABLE-CHOKE

Note: For 15 HP Kaw units with separate choke control - Engine Code FH451V - BS04

$44.99

$

In Stock, only 1 left!

0

10

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

Note: For 15 HP Kaw units with separate choke control - Engine Code FH451V - BS04

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$33.99

$

In Stock, only 1 left!

0

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads and on thumblatch screws.

$1.49

$

In Stock, Qty 5

0

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

0

15

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

16

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$33.99

$

In Stock, only 1 left!

0

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

18

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

19

Exmark 1-413428

CONTROL,THROTTLE

Note: For 15 HP Kaw units with combined throttle/choke control - Engine Code FH451V - AS04

$63.99

$

In Stock, only 1 left!

0

Exmark 1-633696

THROTTLE CABLE ASM

Note: For 15 HP Kaw units with separate choke control - Engine Code FH451V - BS04

$62.99

$

In Stock, only 4 left!

0

Exmark 1-323322

CABLE-CONTROL, THROTTLE

$66.99

$

Usually ships in 3-6 days

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 103-2194-03

WLD,VH ECS HANDLE

$678.99

$

Usually ships in 3-6 days

0

22

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

24

Exmark 103-2466-03

103-2514
(Superseded to 103-2514)

$127.99

$

In Stock, only 4 left!

0

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

26

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

27

Exmark 32128-33

NUT-HF

Note: For 15 HP Kaw units with combined throttle/choke control - Engine Code FH451V - AS04

$0.99

$

In Stock, Qty 6

0

Exmark 32128-33

NUT-HF

Note: For 15 HP Kaw units with separate choke control - Engine Code FH451V - BS04

$0.99

$

In Stock, Qty 6

0

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

28

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

31

Exmark 103-1371

ASM,LATCH RH THUMB

$28.99

$

In Stock, Qty 5

0

Exmark 103-1372

ASM,LATCH LH THUMB

$28.99

$

In Stock, only 1 left!

0

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads and on thumblatch screws.

$1.49

$

In Stock, Qty 19

0

33

Exmark 103-2465-03

116-4082
(Superseded to 116-4082)

$51.99

$

Usually ships in 3-6 days

0

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

36

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

0

41

Exmark 103-0546-03

103-2458
(Superseded to 103-2458)

$

$

Not available

42

Exmark 103-0773

116-8632
(Superseded to 116-8632)

$62.99

$

In Stock, only 1 left!

0

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$22.99

$

Usually ships in 3-6 days

0

44

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

SCREW-HH

Note: For 15 HP Kaw units with combined throttle/choke control - Engine Code FH451V - AS04

$1.49

$

In Stock, Qty 20+

0

Exmark 321-3

SCREW-HH

Note: For 15 HP Kaw units with separate choke control - Engine Code FH451V - BS04

$1.49

$

In Stock, Qty 20+

0

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-323522

ROD-CONTROL, SPEED

$14.99

$

Usually ships in 3-6 days

0

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

52

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

53

Exmark 1-413179

109-6930
(Superseded to 109-6930)

$

$

Not available

54

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$6.49

$

Usually ships in 3-6 days

0

55

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

56

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

57

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

58

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 17

0

59

Exmark 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 7

0

60

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

61

Exmark 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

62

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

63

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

64

Kawasaki Pn 41019-1055 Filter W/6" Fuel Line

$

$

Not available

65

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

66

Exmark 1-603954

HOSE-LINE, FUEL

$8.99

$

In Stock, only 1 left!

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

0

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

0

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

69

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$14.99

$

Usually ships in 3-6 days

0

70

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

0

71

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

72

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$18.99

$

In Stock, only 1 left!

0
