VH16KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, 16hp Kawasaki (SN: 850000 - 919999) (2010) ECS Upper Handle And Controls Parts Diagram

48" Viking Hydro Walk-Behind Mower, 16hp Kawasaki

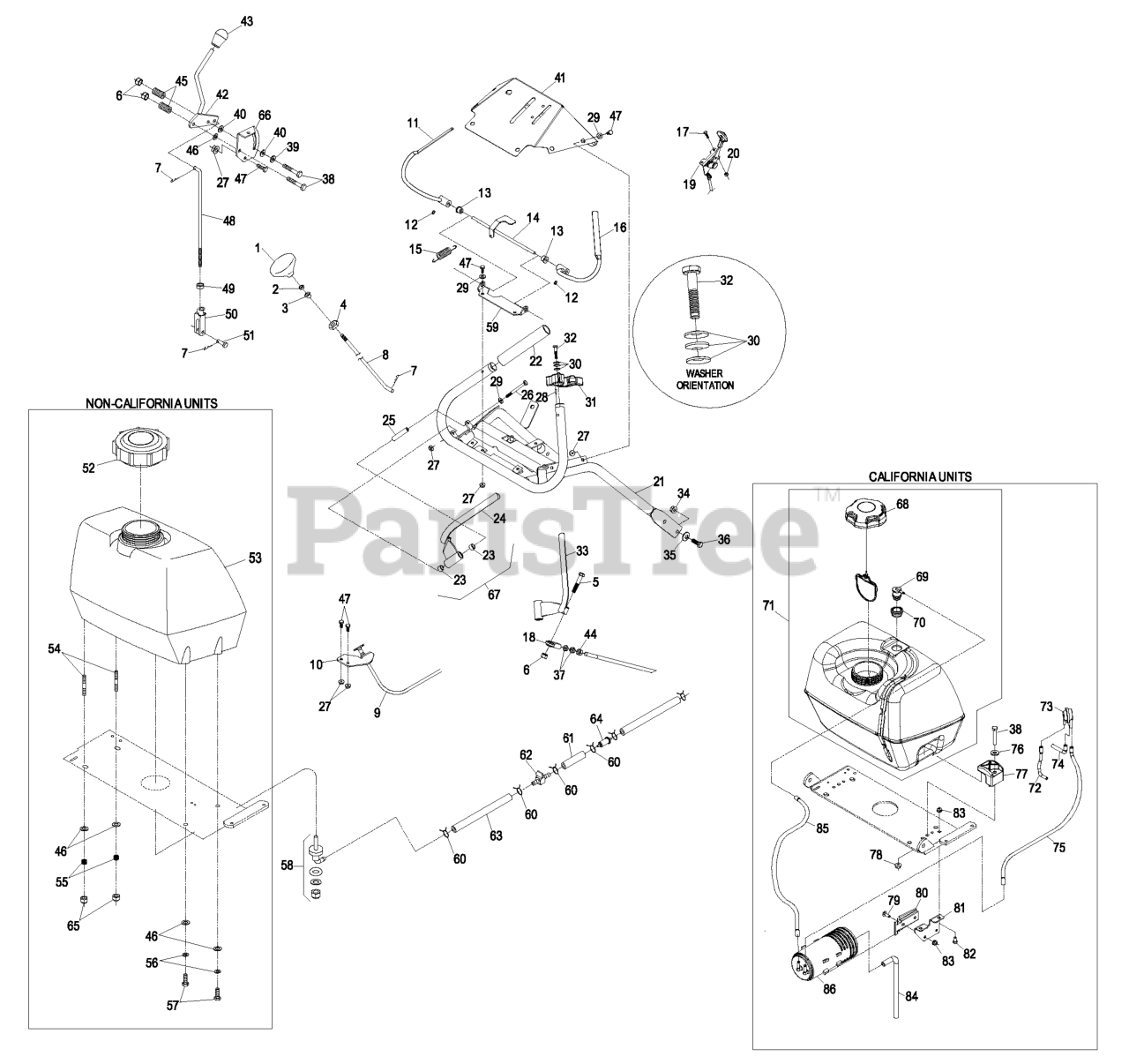

ECS Upper Handle And Controls Parts Diagram

  • Title

1

Exmark 1-323134

KNOB-PUSH / PULL

$28.99

$

In Stock, only 2 left!

0

2

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-323143

BEARING-NYLON

$6.49

$

In Stock, only 4 left!

0

4

Exmark 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

5

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-2193

LINKAGE,BLADE PUSH/PULL

$23.99

$

Usually ships in 3-6 days

0

9

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, only 1 left!

0

10

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

0

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumb latch screws, and on fuel fittings.

$1.49

$

In Stock, Qty 5

0

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

0

15

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

16

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$33.99

$

In Stock, only 1 left!

0

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

18

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

19

Exmark 116-2426

CONTROL, THROTTLE

$44.99

$

In Stock, Qty 15

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 103-2194-03

WLD,VH ECS HANDLE

$678.99

$

Usually ships in 3-6 days

0

22

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

24

Exmark 103-2466-03

103-2514
(Superseded to 103-2514)

$127.99

$

In Stock, only 4 left!

0

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

26

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

28

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

31

Exmark 103-1371

ASM,LATCH RH THUMB

Note: (Shown)

$28.99

$

In Stock, Qty 5

0

Exmark 103-1372

ASM,LATCH LH THUMB

Note: (Not Shown)

$28.99

$

In Stock, only 1 left!

0

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumb latch screws, and on fuel fittings.

$1.49

$

In Stock, Qty 19

0

33

Exmark 103-2465-03

116-4082
(Superseded to 116-4082)

$51.99

$

Usually ships in 3-6 days

0

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

36

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

0

41

Exmark 109-4931

ASM,CONSOLE W/DECALS

$266.99

$

Usually ships in 3-6 days

0

42

Exmark 103-0773

116-8632
(Superseded to 116-8632)

$62.99

$

In Stock, only 1 left!

0

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$22.99

$

Usually ships in 3-6 days

0

44

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-323522

ROD-CONTROL, SPEED

$14.99

$

Usually ships in 3-6 days

0

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

52

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

0

54

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$6.49

$

Usually ships in 3-6 days

0

55

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

56

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

57

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

58

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumb latch screws, and on fuel fittings.

$36.99

$

In Stock, only 2 left!

0

59

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

0

60

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

61

Exmark 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

62

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

63

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

64

Pn 41019-1055 Filter W/6" Fuel Line

$

$

Not available

65

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

66

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$14.99

$

Usually ships in 3-6 days

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

0

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

0

68

Exmark 115-4465

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

69

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$16.99

$

In Stock, only 4 left!

0

70

Exmark 119-6549

114-0284
(Superseded to 114-0284)

$2.99

$

In Stock, Qty 19

0

71

Exmark 116-1661

126-1525
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

72

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

73

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

74

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

75

Exmark 116-2231

HOSE-VENT, FORMED

$35.99

$

Usually ships in 3-6 days

0

76

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

77

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

78

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

79

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

80

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

81

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

82

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

83

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

84

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

85

Exmark 114-0286

HOSE-VENT

$8.49

$

Usually ships in 3-6 days

0

86

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0
