VH16KA362CA - Exmark 36" Viking Hydro Walk-Behind Mower, 16hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Engine Deck Assembly Parts Diagram

36" Viking Hydro Walk-Behind Mower, 16hp Kawasaki, CARB

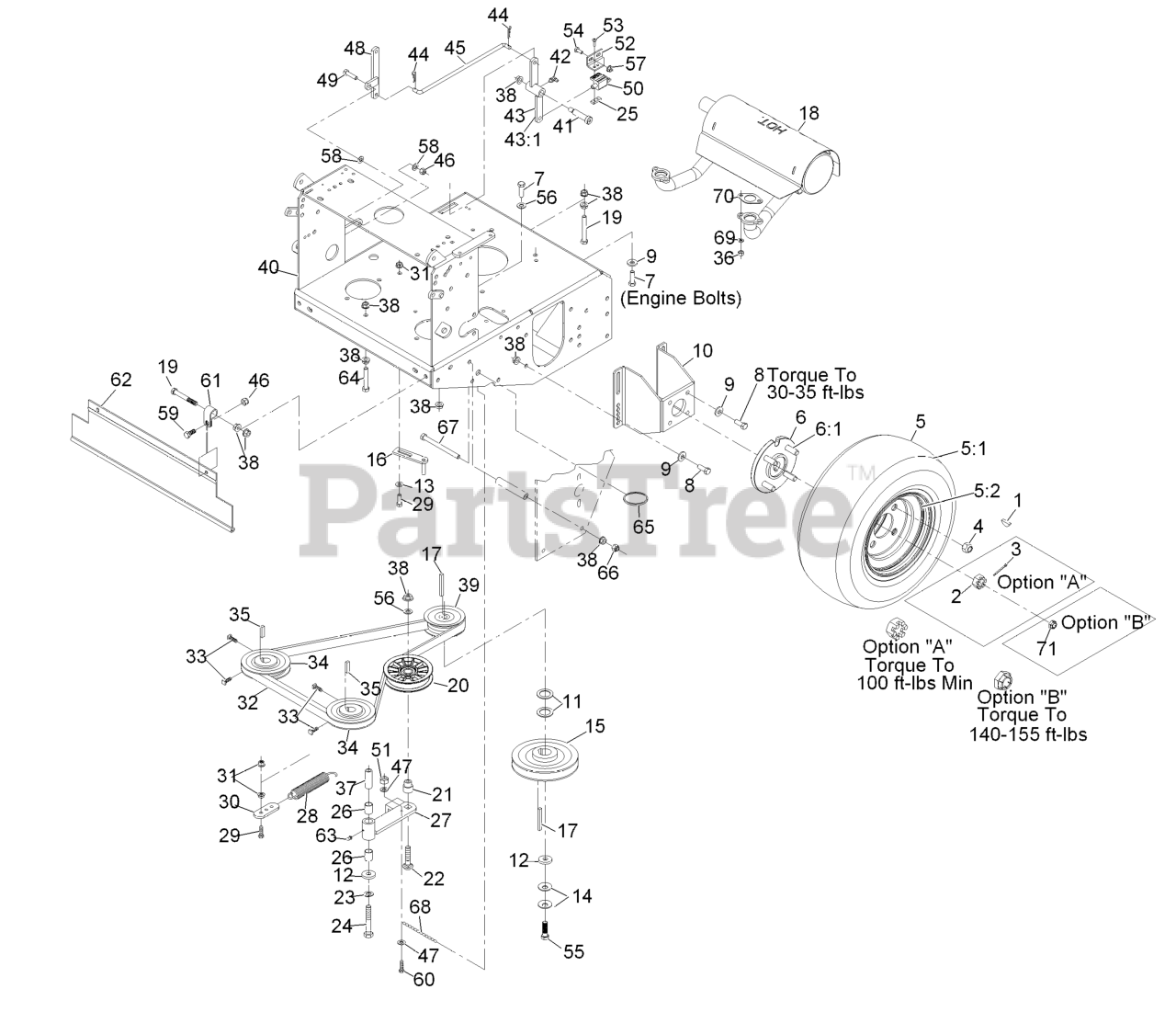

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 1-807019

KEY-WOODRUFF

$19.99

$

In Stock, only 2 left!

0

2

Exmark 32136-5

NUT-HEX, SLOTTED

$8.49

$

In Stock, only 1 left!

0

3

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 17

0

4

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

5

Exmark 1-413473

WHEEL AND TIRE ASM

$206.99

$

Usually ships in 3-6 days

0

5:1

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

Usually ships in 3-6 days

0

5:2

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

6

Exmark 112-9049

WHEEL HUB ASM

$188.99

$

In Stock, only 2 left!

0

6:1

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

7

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 103-2289-01

MOUNT-MOTOR

$137.99

$

Usually ships in 3-6 days

0

11

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

14

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-1668

1-643292
(Superseded to 1-643292)

Note: Apply anti-seize compound in bore.

$104.99

$

In Stock, only 1 left!

0

16

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

17

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

18

Exmark 116-4396

MUFFLER-HORIZONTAL, OFFSE

$395.99

$

Usually ships in 3-6 days

0

19

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, Qty 14

0

21

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

22

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

23

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

24

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

26

Exmark 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

27

Exmark 1-602521

IDLER ARM ASM

$115.99

$

Usually ships in 3-6 days

0

28

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-603801

ANCHOR-SPRING

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 103-4760

BELT-COG
(Superseded to 103-4760-SL)

$46.99

$

In Stock, Qty 9

0

33

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 18

0

34

Exmark 1-413010

SHEAVE ASM

Note: Apply anti-seize compound in bore.

$50.99

$

In Stock, only 2 left!

0

35

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

36

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

37

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

38

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-653035

PULLEY

Note: Apply anti-seize compound in bore.

$68.99

$

In Stock, only 1 left!

0

40

Exmark 103-3500

DECK,ENGINE W/DECALS

$

$

Not available

41

Exmark 1-809062

SCREW

$17.99

$

In Stock, Qty 6

0

42

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

43

Exmark 1-322108

BELLCRANK ASM

$172.99

$

Usually ships in 3-6 days

0

43:1

Exmark 1-322086-01

1-322108
(Superseded to 1-322108)

$172.99

$

Usually ships in 3-6 days

0

44

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

45

Exmark 1-323172

LINKAGE-ENGAGE, BLADE

$19.99

$

Usually ships in 3-6 days

0

46

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-322090-01

116-1737-01
(Superseded to 116-1737-01)

$11.99

$

Usually ships in 3-6 days

0

49

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

50

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

51

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Exmark 1-323213

BRACKET-SWITCH, BLADE

$33.99

$

Usually ships in 3-6 days

0

53

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Exmark 116-3702

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

57

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

58

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

59

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

60

Exmark 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

61

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

62

Exmark 103-2056

SHIELD-DRAG

$63.99

$

In Stock, Qty 8

0

63

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

64

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

65

Exmark 1-323366

RING-SPLIT

$6.49

$

In Stock, only 2 left!

0

66

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

67

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

68

Exmark 1-323365

CHAIN-LINK, TWIST

$17.99

$

In Stock, only 1 left!

0

69

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

70

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

71

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0
