VH16KA362CA - Exmark 36" Viking Hydro Walk-Behind Mower, 16hp Kawasaki, CARB (SN: 920000 - 999999) (2011) ECS Upper Handle and Controls Parts Diagram

36" Viking Hydro Walk-Behind Mower, 16hp Kawasaki, CARB

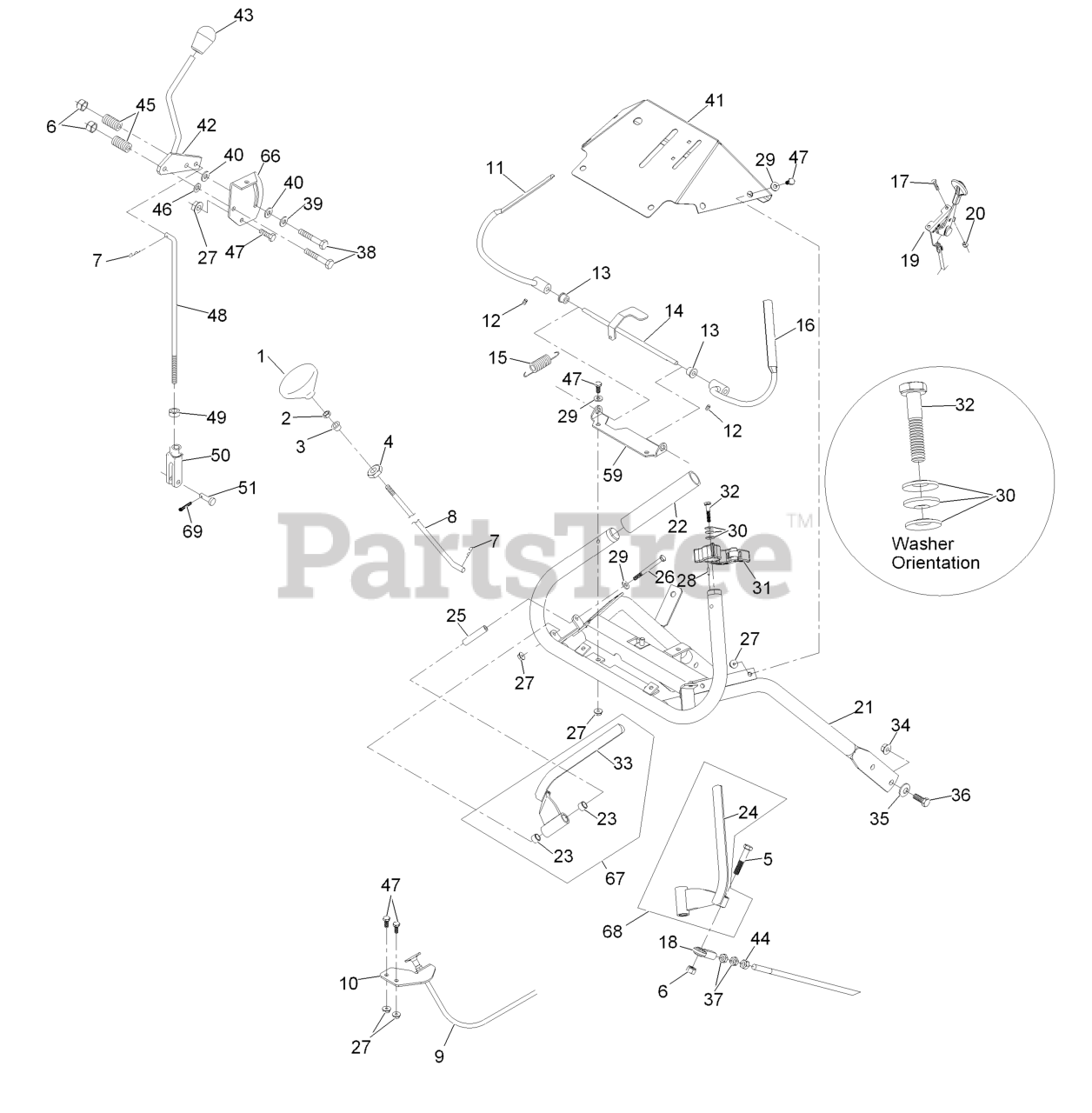

ECS Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 1-323134

KNOB-PUSH / PULL

$28.99

$

In Stock, only 2 left!

0

2

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-323143

BEARING-NYLON

$6.49

$

In Stock, only 4 left!

0

4

Exmark 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

5

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-2193

LINKAGE,BLADE PUSH/PULL

$26.99

$

Usually ships in 3-6 days

0

9

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 6

0

10

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 116-4079-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 20+

0

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$47.99

$

In Stock, Qty 20+

0

15

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

0

16

Exmark 116-4080-03

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$26.99

$

In Stock, Qty 5

0

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

18

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 4 left!

0

19

Exmark 116-2426

CONTROL, THROTTLE

$48.99

$

In Stock, Qty 14

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 103-2194-03

WLD,VH ECS HANDLE

$752.99

$

Usually ships in 3-6 days

0

22

Exmark 103-0815

GRIP-BAR, HANDLE

$12.99

$

In Stock, Qty 9

0

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

24

Exmark 116-4081-03

Lever, Drive Lh

$

$

Currently unavailable

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

26

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-1371

ASM,LATCH RH THUMB

$32.99

$

In Stock, Qty 5

0

31

Exmark 103-1372

ASM,LATCH LH THUMB

$32.99

$

In Stock, only 1 left!

0

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 19

0

33

Exmark 116-4082-03

Lever, Drive Rh

$

$

Currently unavailable

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

36

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

41

Exmark 109-4931

ASM,CONSOLE W/DECALS

$295.99

$

Usually ships in 3-6 days

0

42

Exmark 116-4083

116-8632
(Superseded to 116-8632)

$69.99

$

In Stock, only 1 left!

0

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$26.99

$

Usually ships in 3-6 days

0

44

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, Qty 12

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-323522

ROD-CONTROL, SPEED

$14.99

$

Usually ships in 3-6 days

0

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

59

Exmark 103-0489-03

BRACKET,OPC AXLE

$25.99

$

In Stock, Qty 6

0

66

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$15.99

$

Usually ships in 3-6 days

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$140.99

$

In Stock, only 1 left!

0

68

Exmark 103-2514

DRIVE LEVER-ASM, LH

$140.99

$

In Stock, only 4 left!

0

69

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0
