VH15KA362 - Exmark 36" Viking Hydro Walk-Behind Mower, 15hp Kawasaki (SN: 790000 - 849999) (2009) Engine Deck Group Parts Diagram

36" Viking Hydro Walk-Behind Mower, 15hp Kawasaki

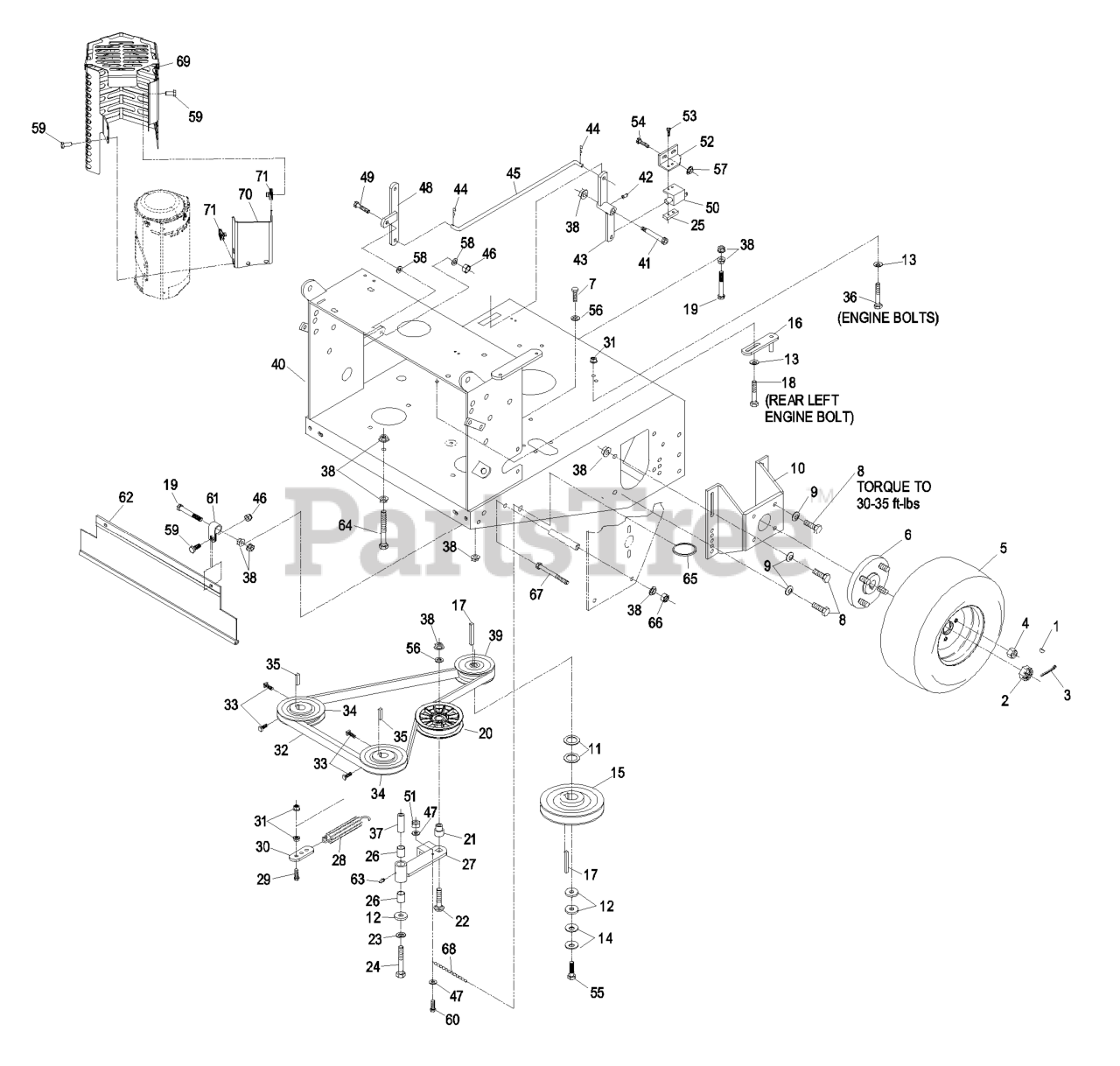

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

2

Exmark 32136-5

NUT-HEX, SLOTTED

$7.99

$

In Stock, only 1 left!

0

3

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

4

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

5

Exmark 1-413473

WHEEL AND TIRE ASM

$218.99

$

Usually ships in 3-6 days

0

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$72.99

$

In Stock, only 2 left!

0

6

Exmark 1-602997

112-9049
(Superseded to 112-9049)

Note: (4 Bolt)

$184.99

$

In Stock, only 1 left!

0

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 17

0

7

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 103-2289-01

MOUNT-MOTOR

Note: (36")

$134.99

$

Usually ships in 3-6 days

0

Exmark 1-402062-01

MOUNT-MOTOR

Note: (48")

$178.99

$

Usually ships in 3-6 days

0

11

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

14

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

15

Exmark 103-1668

1-643292
(Superseded to 1-643292)

Note: (36") Apply anti-seize compound on pulley bore.

$92.99

$

In Stock, only 1 left!

0

Exmark 103-1667

1-403160
(Superseded to 1-403160)

Note: (48") Apply anti-seize compound on pulley bore.

$79.99

$

Usually ships in 3-6 days

0

16

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

17

Exmark 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

18

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

19

Exmark 323-13

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

20

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, only 3 left!

0

21

Exmark 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

22

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, Qty 10

0

23

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

25

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

26

Exmark 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

27

Exmark 1-602521

IDLER ARM ASM

Note: (W/Bearing)

$112.99

$

Usually ships in 3-6 days

0

28

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-603801

ANCHOR-SPRING

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 103-4760

BELT-COG
(Superseded to 103-4760-SL)

$44.99

$

In Stock, Qty 11

0

33

Exmark 1-803050

SCREW-SET

Note: Use Pro-lock Nut type Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.

$2.99

$

In Stock, Qty 8

0

34

Exmark 1-413010

SHEAVE ASM

Note: Apply anti-seize compound on pulley bore.

$52.99

$

In Stock, only 2 left!

0

35

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

36

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 6

0

38

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-653035

PULLEY

Note: Apply anti-seize compound on pulley bore.

$71.99

$

In Stock, only 1 left!

0

40

Exmark 103-3500

DECK,ENGINE W/DECALS

Note: (103-6495-01)

$

$

Not available

41

Exmark 1-809062

SCREW

$17.99

$

In Stock, only 2 left!

0

42

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

43

Exmark 1-322108

BELLCRANK ASM

$167.99

$

Usually ships in 3-6 days

0

Exmark 1-322086-01

1-322108
(Superseded to 1-322108)

$167.99

$

Usually ships in 3-6 days

0

44

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

45

Exmark 1-323172

LINKAGE-ENGAGE, BLADE

$19.99

$

Usually ships in 3-6 days

0

46

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

47

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-322090-01

116-1737-01
(Superseded to 116-1737-01)

$11.99

$

Usually ships in 3-6 days

0

49

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

50

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

51

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Exmark 1-323213

BRACKET-SWITCH, BLADE

$31.99

$

Usually ships in 3-6 days

0

53

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Exmark 3212-6

SCREW-HH

Note: Use Pro-lock Nut type Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.

$2.49

$

In Stock, only 1 left!

0

56

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

57

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

58

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

59

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

60

Exmark 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

61

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

62

Exmark 103-2056

SHIELD-DRAG

$61.99

$

In Stock, Qty 8

0

63

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

64

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

65

Exmark 1-323366

RING-SPLIT

$6.49

$

In Stock, only 2 left!

0

66

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

67

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

68

Exmark 1-323365

CHAIN-LINK, TWIST

$17.99

$

In Stock, only 1 left!

0

69

Exmark 116-1180-03

MUFFLER SHIELD ASM

$191.99

$

Usually ships in 3-6 days

0

70

Exmark 115-4154-03

BRACKET-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

71

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0
