VF 550 (960820015-00) - Poulan Pro Tiller (2010-02) Handle, Wheel, And Depth Stake Parts Diagram

Tiller

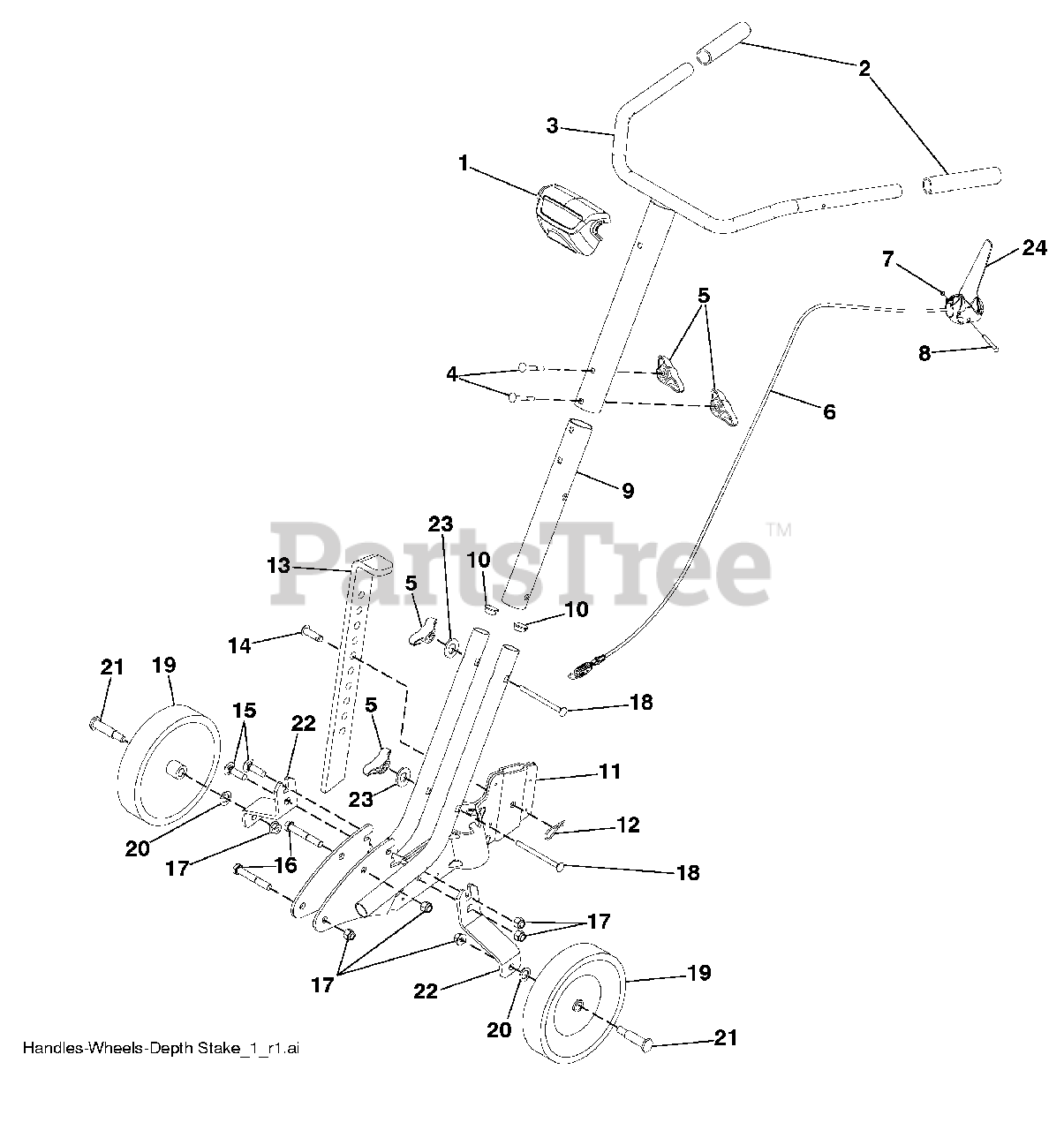

Handle, Wheel, And Depth Stake Parts Diagram

  • Title
1

Electrolux/AYP 430579X428

Console Tiller Handle
(Superseded to 532436280)

$11.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 165787

Grip Handle
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 431332

Assembly Handle Column

$

$

Not available

4

Electrolux/AYP 72010520

Bolt 5/16 - 18 x 2.50
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 189713X428

Knob Wing
(Superseded to 532185577)

$9.49

$

In Stock, Qty 13

0

6

Electrolux/AYP 425091

Lever Control Tine
(Superseded to 532425091)

$42.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 12000059

Retainer Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 431762

Pin Pivot
(Superseded to 583473901)

$6.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 424190

Handle Lower
(Superseded to 583754201)

$31.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 425398

Plug Snap In
(Superseded to 532425398)

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 432521

Weldment Transport Arm

$

$

Not available

12

Electrolux/AYP 4921H

Clip Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 421342

Stake Depth
(Superseded to 532421342)

$31.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 326J

Pin Clevis

$

$

Not available

15

Electrolux/AYP 72110610

Bolt 3/8 - 16 x 1-1/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 74780640

Screw Hex Head 3/8 - 16 x 2.5

$2.49

$

Usually ships in 3-10 days

0

17

Murray 73900600

Nut Lock Flg 3/8 - 16 unc

$

$

Not available

18

Electrolux/AYP 72140536

Bolt 5/16 - 18 x 4.5

$

$

Not available

19

Electrolux/AYP 193850X427

Wheel
(Superseded to 583716501)

$10.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

21

Electrolux/AYP 121117X

Bolt Shoulder "A" 2.28 " B" 1.53
(Superseded to 532121117)

$8.99

$

In Stock, Qty 5

0

22

Electrolux/AYP 421345

Bracket Wheel
(Superseded to 583387901)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 434948

Lever Control
(Superseded to 583502201)

$5.99

$

Usually ships in 3-10 days

0
