VEN-12024-1 (5901727) - Ferris Venture 120 Series Stand-On Spreader Motion Control Lever Group Parts Diagram

Venture 120 Series Stand-On Spreader

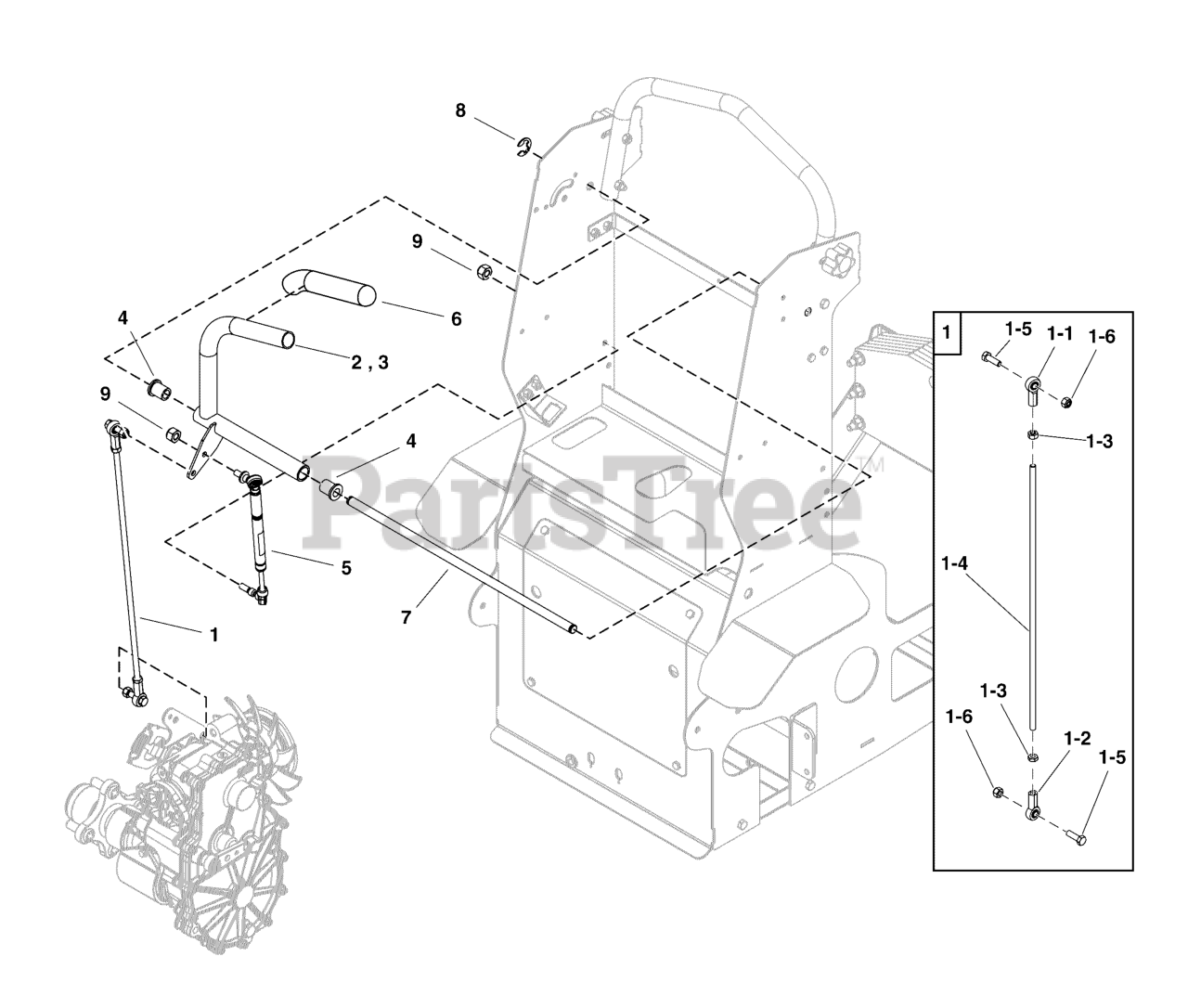

Motion Control Lever Group Parts Diagram

  • Title

1

ASM, MOTION CONTROL ROD

$

$

Not available

1-1

Ferris 5106245

ROD END, FEMALE 5/16-24 LH ZP PTFE RACE

$11.99

$

Usually ships in 2-12 days

0

1-2

Ferris 5106244

ROD END, FEMALE 5/16-24 RH ZP PTFE RACE

$12.99

$

Usually ships in 2-12 days

0

1-3

Ferris 5106688

NUT-HEX, JAM .3125"-24 SS188

$2.99

$

Usually ships in 2-12 days

0

1-4

Ferris 5418378

ROD, CONTROL 5/16-24 THD X 18.50" MZ

$18.99

$

Usually ships in 2-12 days

0

1-5

Ferris 5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$2.99

$

Usually ships in 2-12 days

0

1-6

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5418379

WELD, LH CONTROL ARM

Note: (Left Hand Control Arm)

$92.99

$

Usually ships in 2-12 days

0

3

Ferris 5418383

WELD, RH CONTROL ARM

Note: (Right Hand Control Arm)

$92.99

$

Usually ships in 2-12 days

0

4

Ferris 5106689

BUSHING, FLANGE 1/2 ID X 3/4 OD X 1 LG

$5.99

$

Usually ships in 2-12 days

0

5

Ferris 5106277

DAMPER, CONTROL ARM

Note: (S/N: 30000003685 and Below)

$130.99

$

Usually ships in 2-12 days

0

6

Ferris 5106278

GRIP, MOTION CONTROL

$16.99

$

Usually ships in 2-12 days

0

7

Ferris 5418387

ROD, .500" OD MOTION CONTROL

$42.99

$

Usually ships in 2-12 days

0

8

Ferris 5106691

E-RING, 0.500" SHAFT YZ

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

Note: (S/N: 30000003685 and Below)

$3.49

$

Usually ships in 2-12 days

0
