VC (990155) - Simplicity Two-Wheeled Tractor, 7hp Differential Group - H & VC (3580I03) Parts Diagram

Two-Wheeled Tractor, 7hp

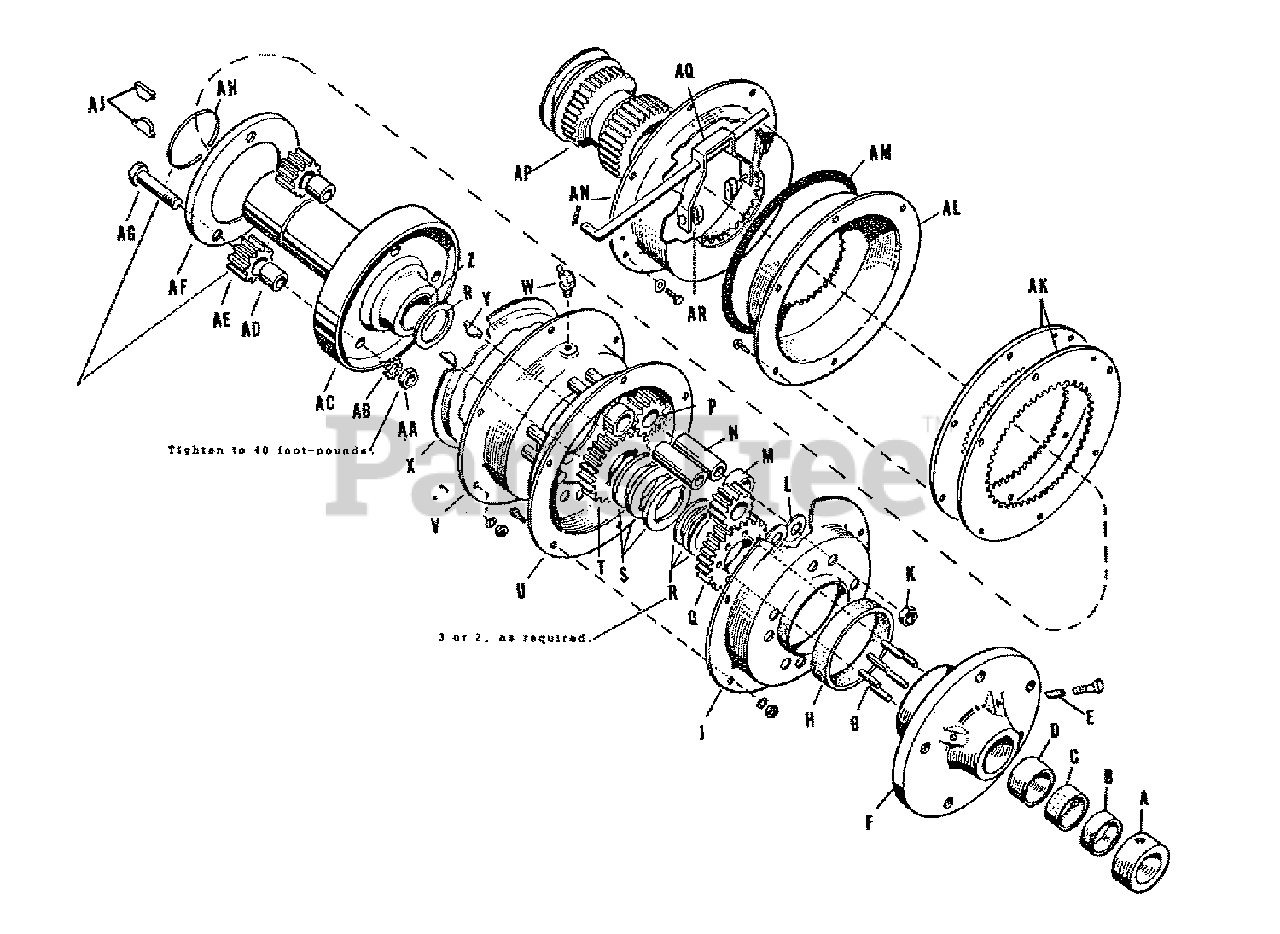

Differential Group - H & VC (3580I03) Parts Diagram

  • Title

A

Simplicity 2154065SM

COLLAR, Axle

$113.99

$

Usually ships in 2-12 days

0

B

Simplicity 2105058SM

BEARING

$3.99

$

Usually ships in 2-12 days

0

C

Simplicity 152041

BEARING, Nylon

$

$

Not available

D

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

E

Simplicity 152042

PLUG

$

$

Not available

F

Simplicity 2152040

HUB, R.H. Wheel

$

$

Not available

G

Simplicity 2723003

PIN, Roll

$

$

Not available

H

Simplicity 2121190SM

SEAL, Differential Cover

$

$

Not available

J

Simplicity 2151022

COVER, Differential

$

$

Not available

K

Simplicity 2717510

NUT, Lock, Full Hexagon, 3/8-24

$

$

Not available

L

Simplicity 2719002

WASHER, Plain, 5/16

$

$

Not available

M

Simplicity 2121084SM

SPACER, Differential

$12.99

$

Usually ships in 2-12 days

0

N

Simplicity 2121083SM

SPINDLE, Pinion, Differential

$13.99

$

In Stock, only 1 left!

0

P

Simplicity 121082

PINION, Differential

$

$

Not available

Q

Simplicity 151044

GEAR, Differential

$

$

Not available

R

Simplicity 153088

WASHER

$

$

Not available

S

Simplicity 153077

WASHER, Axle

$

$

Not available

T

Simplicity 121086

GEAR, Differential

$

$

Not available

U

Simplicity 121149

COVER, Differential

$

$

Not available

V

Simplicity 151021

CARRIER ASSEMBLY

$

$

Not available

W

Simplicity 2727006

FITTING, Grease, Alemite #1637

$

$

Not available

X

Simplicity 121185

PLATE, Thrust

$

$

Not available

Y

Simplicity 825501

KEY, Hi-Pro, HP-608

$

$

Not available

Z

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

AA

Simplicity 2718015

NUT, Lock, Full Hexagon, 3/8-24

$

$

Not available

AB

Simplicity 2721004

LOCKWASHER, External Shakeproof

$

$

Not available

AC

Simplicity 155022

SPIDER ASSEMBLY

$

$

Not available

AD

Simplicity 121163

SPACER, Pinion

$

$

Not available

AE

Simplicity 121118

PINION

$

$

Not available

AF

Simplicity 121162

RING, Bolt

$

$

Not available

AG

Simplicity 2121184

BOLT, Hex Head

$

$

Not available

AH

Simplicity 121167

SNAP, Ring

$

$

Not available

AJ

Simplicity 2151040SM

KEY

$9.49

$

In Stock, only 2 left!

0

AK

Simplicity 121151

GEAR, Rign

$

$

Not available

AL

Simplicity 121148

COVER ASSEMBLY

$

$

Not available

AM

Simplicity 121186

SEAL, Housing Assembly

$

$

Not available

AN

Simplicity 121146

HOUSING ASSEMBLY

$

$

Not available

AP

Simplicity 121187

GEAR ASSEMBLY, Sun

$

$

Not available

AQ

Simplicity 151033

CLEVIS ASSEMBLY

$

$

Not available

AR

Simplicity 121169

BLOCK, Shift

$

$

Not available
