V70-125151F - Tecumseh Engine Engine Parts List Parts Diagram

Engine

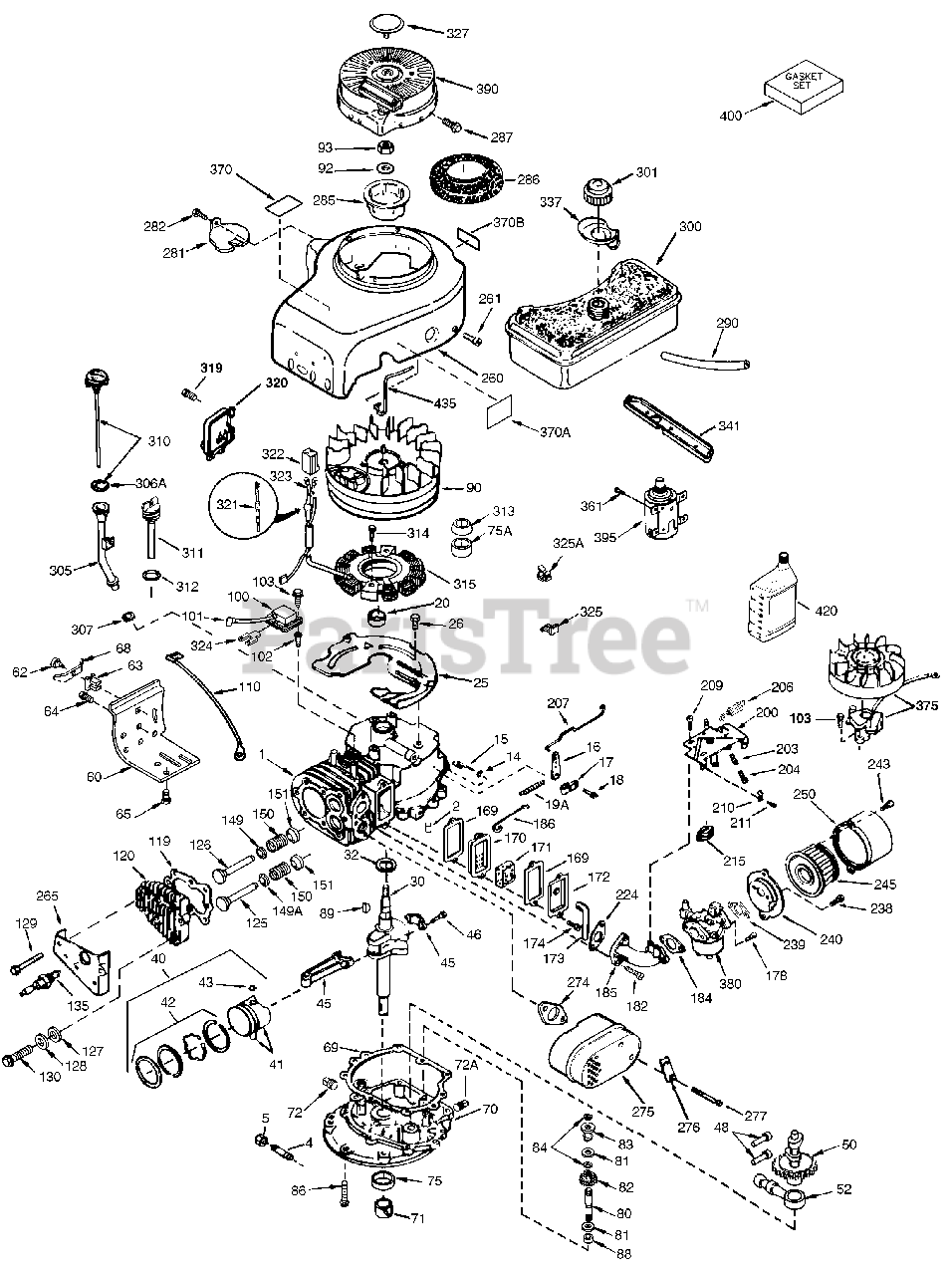

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34172A

"Cylinder (Incl. 2, 20 & 311)

$223.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30669

Governor Rod

$7.49

$

In Stock, only 1 left!

0

16

Tecumseh 31357

Governor Lever

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19A

Tecumseh 31361

Extension Spring

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 32630

Oil Seal

$8.49

$

In Stock, only 2 left!

0

25

Tecumseh 29536

Blower Housing Baffle

$18.99

$

Usually ships in 3-12 days

0

26

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

30

Tecumseh 35464

Crankshaft

$

$

Not available

40

Tecumseh 34517

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34518

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34519

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Tecumseh 32592B

Piston & Pin Ass'y. (Std.) (Incl. 43)

$52.99

$

In Stock, only 1 left!

0

41

Tecumseh 32593B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$57.99

$

In Stock, only 1 left!

0

41

Tecumseh 32594B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$61.99

$

Usually ships in 3-12 days

0

42

Tecumseh 32595

Ring Set (Std.)

$

$

Not available

42

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 32591C

Connecting Rod Ass'y. (Incl. 46)

$

$

Not available

46

Tecumseh 650662C

Connecting Rod Bolt (2 Each)

$3.99

$

Usually ships in 3-12 days

0

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

50

Tecumseh 32114

Camshaft (MCR)

$92.99

$

Usually ships in 3-12 days

0

52

Tecumseh 31356

Oil Pump Ass'y.

$12.99

$

Usually ships in 3-12 days

0

60

Tecumseh 30622A

Blower Housing Extension

$

$

Not available

64

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

65

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 30684

* Mounting Flange Gasket

$4.49

$

In Stock, Qty 7

0

70

Tecumseh 31471D

Mounting Flange Incl. 72, 75, 80 & 8 1

$158.99

$

In Stock, only 1 left!

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

80

Tecumseh 30668

Governor Shaft

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

88

Tecumseh 31707A

Spacer (Incl. 81)

$1.99

$

In Stock, only 2 left!

0

89

Tecumseh 32589

Flywheel Key

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611088

Flywheel

$153.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Lock Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 8116

Flywheel Nut

$1.99

$

In Stock, only 4 left!

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

102

Tecumseh 650872

Solid State Mounting Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 36230

Ground Wire

$1.99

$

In Stock, only 2 left!

0

119

Tecumseh 32631A

* Cylinder Head Gasket

$11.99

$

In Stock, Qty 11

0

120

Tecumseh 30938A

Cylinder Head
(Superseded to 36446)

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

In Stock, only 1 left!

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 32783

Intake Valve (Std.) (Incl. 149A)

$16.99

$

In Stock, only 2 left!

0

126

Tecumseh 32784

Intake Valve (1/32" OS) (Incl. 149A)

$69.99

$

Usually ships in 3-12 days

0

127

Tecumseh 650691

Washer

$1.99

$

In Stock, Qty 5

0

128

Tecumseh 650690

Belleville Washer
(Superseded to 730324)

$9.99

$

In Stock, only 2 left!

0

130

Tecumseh 650697A

Screw, 5/16-18 x 2-1/2"

$1.99

$

In Stock, Qty 11

0

135

Tecumseh 34251

Resistor Spark Plug (RJ17LM)
(Superseded to 33636)

$5.49

$

In Stock, Qty 15

0

149A

Tecumseh 32581

Valve Spring Cap

$6.49

$

In Stock, Qty 10

0

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 16

0

170

Tecumseh 28423

Breather Body

$13.99

$

Usually ships in 3-12 days

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, Qty 7

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

In Stock, only 1 left!

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 650517

Screw, 1/4-20 x 27/32"

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 650378

Screw, 5/16-18 x 1-/8"

$1.99

$

In Stock, only 3 left!

0

185

Tecumseh 32632

Intake Pipe

$26.99

$

Usually ships in 3-12 days

0

186

Tecumseh 32582

Governor Link

$1.99

$

In Stock, only 4 left!

0

200

Tecumseh 31523A

Control Bracket (Incl. 203 & 204)

$19.99

$

Usually ships in 3-12 days

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 2 left!

0

207

Tecumseh 31823

Choke Link

$1.99

$

In Stock, only 1 left!

0

209

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

224

Tecumseh 26756

* Intake Pipe Gasket

$2.99

$

In Stock, Qty 10

0

224

Tecumseh 27915A

* Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

238

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

239

Tecumseh 27272A

* Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

240

Tecumseh 31691

Air Cleaner Body

$22.99

$

In Stock, only 1 left!

0

243

Tecumseh 650152

Screw, 8-32 x 3/8"

$2.49

$

In Stock, only 3 left!

0

245

Tecumseh 30727

Air Filter (Paper) also available in Packaged Part #740029B

$7.49

$

In Stock, only 3 left!

0

250

Tecumseh 31715

Air Cleaner Cover

$21.99

$

In Stock, Qty 7

0

260

Tecumseh 35892

Blower Housing

$99.99

$

Usually ships in 3-12 days

0

261

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

265

Tecumseh 30939A

Cylinder Head Cover
(Superseded to 30939B)

$

$

Not available

274

Tecumseh 35865

Muffler Gasket

$2.49

$

In Stock, only 4 left!

0

275

Tecumseh 28269

Muffler

$

$

Not available

276

Tecumseh 31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 650696

Screw, 5/16-18 x 2-3/4"

$3.99

$

In Stock, only 2 left!

0

285

Tecumseh 32125

Starter Cup
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 29774

Fuel Line (8.62")

$34.99

$

In Stock, Qty 6

0

300

Tecumseh 32584

Fuel Tank (Incl. 301)

$

$

Not available

301

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) also availab le in Packaged Part #740005B

$7.49

$

In Stock, only 1 left!

0

311

Tecumseh 34165

Oil Fill Plug (Incl. 312)

$9.49

$

In Stock, only 2 left!

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

313

Tecumseh 35189

Spacer

$

$

Not available

314

Tecumseh 650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611097

Alternator Coil (7 Amp) Incl. 322,322 A & 323
(Superseded to 611290)

$

$

Not available

322A

Tecumseh 610824

Connector Body

$

$

Not available

322

Tecumseh 610921

Connector Body

$1.99

$

Usually ships in 3-12 days

0

323

Tecumseh 610922

Terminal

$

$

Not available

324

Tecumseh 33177

Terminal

$1.99

$

In Stock, only 3 left!

0

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

325A

Tecumseh 27275

Wire Clip

$1.99

$

In Stock, Qty 7

0

327

Tecumseh 35392

Starter Plug

$1.99

$

In Stock, only 1 left!

0

370A

Tecumseh 550223

Logo Decal

$

$

Not available

370B

Tecumseh 34344

Instruction Decal

$

$

Currently unavailable

370

Tecumseh 34346

Lubrication Decal
(Superseded to 36261)

$

$

Not available

380

Tecumseh 631634

Carburetor (Incl. 184)

$113.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590666A

Rewind Starter
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

400

Tecumseh 33239A

Gasket Set (Incl. items marked PK in notes) Incl. part #'s 26756 (1), 272 72A (3),27896A (2),27915A (1),29673 ( 1),30684 (1),31688A (1),32631A (1), 3 3355A (1),35865 (3)

$35.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225

SAE 30 4 -Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 4 left!

0

435

Tecumseh 33549

Hold Down Clamp

$3.99

$

Usually ships in 3-12 days

0
